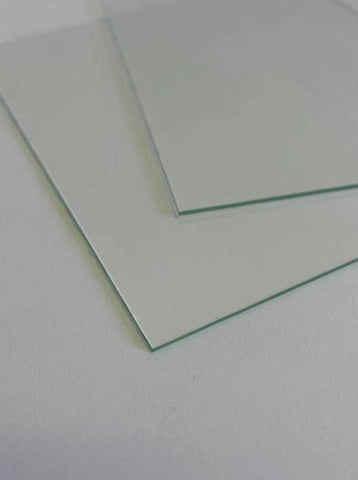

MSE PRO 0.4 mm 10 Ohm/Sq ITO Coated Thin Glass Substrate
SKU: GL0360
10 Ohm/sq, 0.4 mm thickness ITO Coated Thin Glass Substrate, Indium Doped Tin Oxide (In-SnO2 or ITO) coated glass
For FTO substrates, please click here.
Click here for publications using our products
ITO Patterns can be custom made based on customer's requirements.
- Glass: NSG Soda Lime Glass (SLG)
- Glass Transition Temperature: 564°C (1,047°F )
- Dimension: 1" x 1" (25.4 mm x 25.4 mm), 2" x 2", 4" x 4", or can be customized.
- Special ITO Patterns: can be customized according to customer provided drawings.
- Etching Capability: Laser etching, wet etching for detailed patterns. Both techniques have a resolution of +/- 50um.
- Sheet resistance: 10 ohm/sq
- Glass thickness: 0.4 mm is standard, other thickness can be customized
- Transmittance: >84%
- Typical RMS < 5 nm
technical information and specifications of ITO coated soda lime glass | |||
Specification (Ohm/sq) | Sheet Resistance (Ohm/sq) | Visible Light Transmittance (%)* | Thickness of ITO Film |
500 | ≤500 | ≥90 | 120ű 30Å |
150 | ≤150 | ≥87. 0 | 150ű 30Å |
125 | ≤125 | ≥87. 0 | 200ű30Å |
100 | ≤100 | ≥87. 0 | 230ű 50Å |
80 | ≤80 | ≥86. 0 | 300ű5oÅ |
60 | ≤60 | ≥85. 0 | 350ű 50Å |
50 | ≤50 | ≥84. 0 | 400ű 50Å |
40 | ≤40 | ≥85. 0 | 500ű 100Å |
30 | ≤30 | ≥80. 0 | 650ű 100Å |
20 | ≤20 | ≥85. 0 | 950ű 100Å |
15 | ≤15 | ≥85. 0 | 1350ű 150Å |
10 | ≤10 | ≥84. 0 | 1850ű 200Å |
6 | ≤7 | ≥80. 0 | 2200ű 300Å |
5 | ≤5 | ≥77. 0 | 3500ű 300Å |
* Transmission will vary slightly depending on thickness of the glass substrate |
ITO conductive glass substrates |
|||||
Grade (ohm/sq) |
Size L x W (mm) |
Thickness (mm) |
Minimum of Order |
Prices of non-etched ($/sheet) |
Prices of etched Patterns ($/sheet) |
10 | 10X10 | 0.4 | 100 sheets | 3.95 | POD |
10 |
25x25 |
0.4 |
100 sheets |
4.95 |
POD |
10 |
50x50 |
0.4 |
50 sheets |
10.38 |
POD |
10 |
100x100 |
0.4 |
25 sheets |
22.36 |
POD |
Applications
Indium tin oxide (ITO) is one of the most widely used transparent conducting oxides (TCO) because of its two main properties, its electrical conductivity and optical transparency. ITO can also be easily deposited on a substrate as a thin film. High quality sputtered Indium Doped Tin Oxide (ITO) films can be used as electrodes for photovoltaic/solar cells, LCD display, electro chemical deposition, capacitors, Infrared detection applications.
Customer Testimonials
Carlos Biaou, a PhD student at UC Berkeley worked with MSE Supplies to fabricate several hundred customized ITO and FTO substrates for his thesis research, and he had a very positive feedback on the products and services he received from MSE Supplies.
- "The uniformity of the ITO and FTO layers were excellent, and the custom pattern I ordered was well formed."
- "The variation in size from substrate to substrate is within the margins of errors I needed, so that's great too."
- "I appreciate the great customer service and diligence you've shown in customizing my substrates."
Dr. Selma Duhovi from MIT has used the ITO and FTO substrates provided by MSE Supplies for smart glass application, and has been very satisfied with the products and services provided by MSE Supplies.
- "The FTO and ITO glass slides you sent me work GREAT!"
- "The substrates work really well for smart glass application."
- "The experiments have gone well!"
