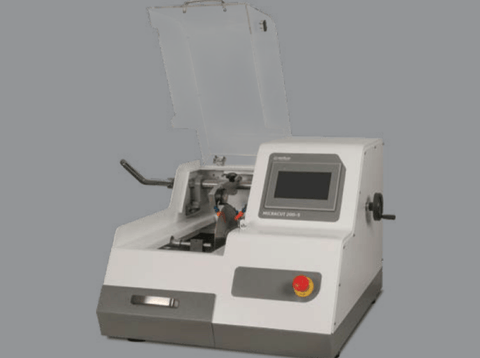

Metkon Automatic High-Speed Precision Cutting Machine MICRACUT 200-S

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

MSE Supplies offers an Automatic High-Speed Precision Cutting Machine MICRACUT 200-S from Metkon Instrument Inc. MICRACUT 200-S is a high-speed automatic precision cutting machine that is used for precise and deformation-free cutting of “Metals, Ceramics, Electronic Components, Crystals, Composites, Biomaterials, Sintered Carbides, Minerals, etc.” MICRACUT 200-S has also grinding capability for applications that need extremely precise material removal. The cut surface is ready for microscopic examination with minimal polishing. MICRACUT 200-S has its place in virtually any metallurgical, geological, electronics, research, biomedical or industrial laboratory. The applications are endless.

Country of Origin: Made in Turkey

Manufacturer: Metkon Instruments Inc.

Main Features:

  • Universal use for very wide range of applications
  • Suitable for both precise cutting and precise grinding

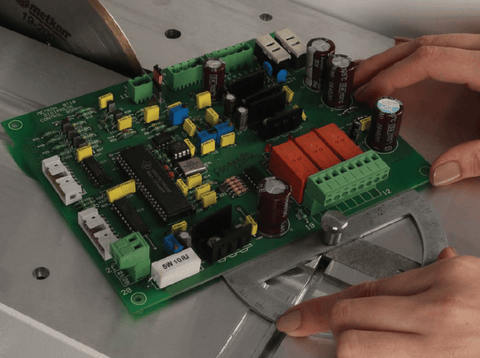

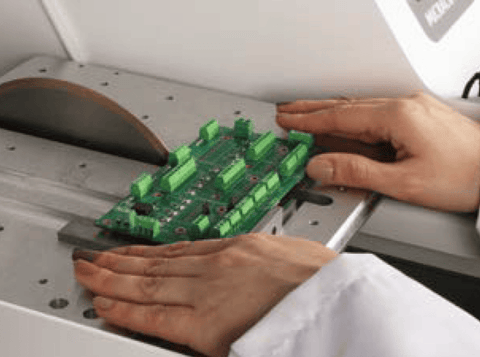

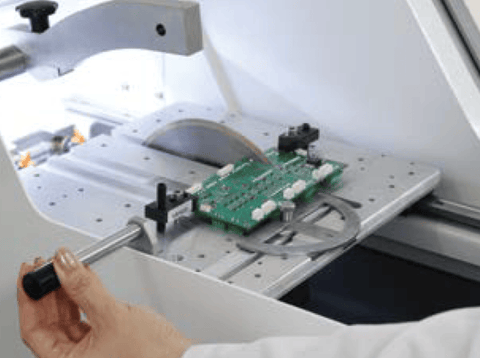

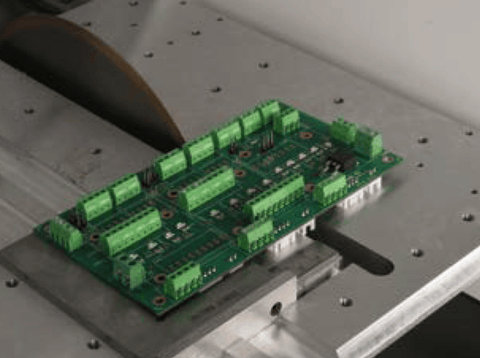

  • Ability to cut PCBs and flat samples

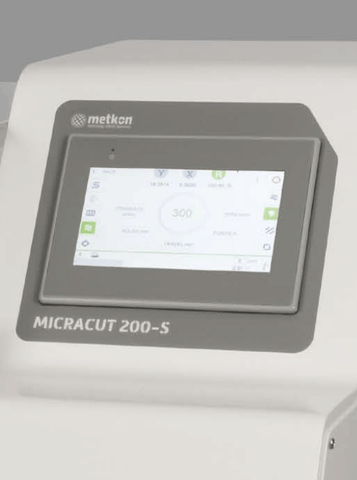

  • Programmable with 7" HMI touch screen control
  • Siemens PLC control unit
  • Motorized cutting system

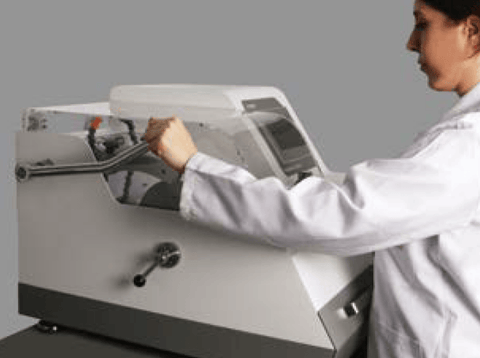

  • Automatic or manual cutting modes

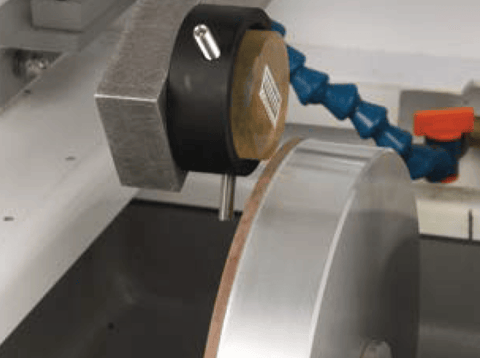

  • Motorized precise grinding with 5 microns accuracy
  • Accurate positioning of the specimen in X-axis with 5 microns positioning accuracy
  • 0-50 mm positioning range in X-axis with readout on HMI touch screen

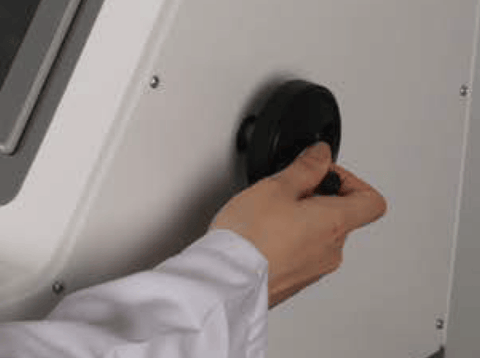

  • Smart guide for X-axis positioning
  • Motorized sample movement in Z-axis
  • Integrated feed path control
  • Power dependent adjustable feed rate
  • Variable cutting force
  • Rapid pulse cutting mode
  • Bar graph overload display
  • Powerful 0.55 kW cutting motor
  • Variable cutting speed 100-5000 rpm
  • Electronic brake system
  • Cutting capacity up to 75 mm solid stock
  • Cut-off wheels up to Ø200 mm or diamond cup grinding wheels up to Ø175 mm
  • Built-in dressing unit

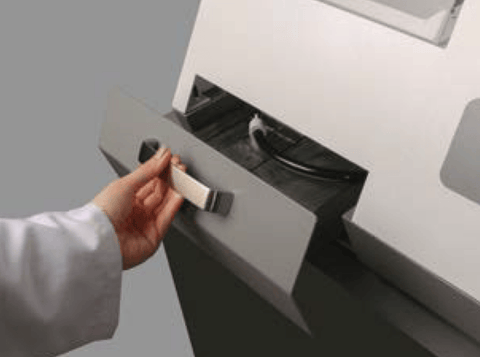

  • Built-in removable cooling unit
  • Transparent protection hood
  • Extra advanced cutting methods
  • Ready for operation
  • Includes a standard set of cutting consumables composed of:
    *1 pc. Diamond cutting Disc 200 mm dia.
    *1 lt of Metcool II cooling fluid
For more details of the MICRACUT 200-S High-Speed Precision Cutting Machine, click here.

    Technical Specifications

    Model MICRACUT 200-S
    Cut-off Wheel Diameter, (mm) up to Ø200
    Cutting Capacity, Ø (mm) Ø75
    Sample Movement in Z-Axis Motorized
    Sample Movement in X-Axis Manual
    X-Axis Positioning Range, (mm) 0-50
    X-Axis Positioning Accuracy, (μm) 5
    Cutting Feed Speed, (μm/s) 5 - 10000
    Cutting Motor Power, (kW) (S1) 0.55
    Disc Speed, (RPM) 100 – 5000
    Control Panel 7" HMI Touch Screen
    Program Capacity 99 Program Memory
    Cutting Modes Automatic Cutting in Z-Axis
    Manual Cutting in Z-Axis
    Manual Table-Feed Cutting in Y-Axis
    Pulse Cutting Yes (Rapid Pulse Cutting)
    Automatic Feed rate Yes (Instafeed Cutting)
    Multi-Section Cutting Yes (Hybrid Cutting)
    Parallel Cutting, X-Axis Yes (Semi-Automatic)
    Precise Grinding Feature Yes (Manual/Semi-Automatic)
    Grinding Wheel Diameter, (mm) Ø175
    Grinding Feed Speed, (μm/s) 500 - 50000
    Cooling Unit, (lt) 4.5 (integrated)
    Illumination LED
    Dressing During Cutting Operation Yes
    Motor Drive System Direct Drive
    Dimensions, WxDxH, (mm) 640 x 732 x 529
    Weight, (kg) 90
    Power Supply 230 V, 50/60 Hz, AC.

    Accessories:

    • Cutting Tables

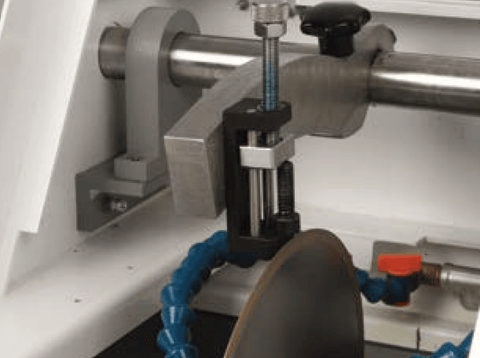

    • Specimen Vises

      For accessories and consumables, please contact us so we can help you choose appropriate products for your needs.

      About Metkon: Since 1993, METKON as a young and dynamic company, had delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".

      MSE Supplies is an authorized distributor for Metkon Instrument Inc.
