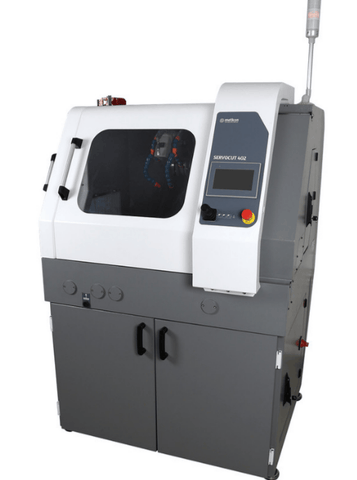

Metkon Automatic Abrasive Cutting Machine SERVOCUT 402-AA(-AX)

To better serve you, we would like to discuss your specific requirement, Please Contact Us for a quote.

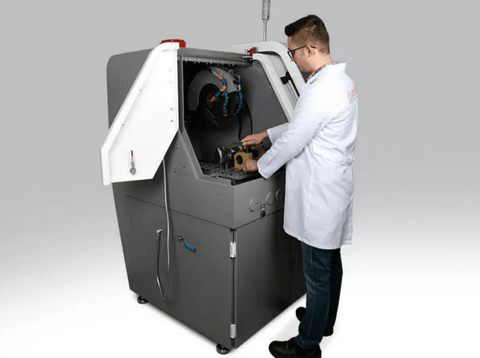

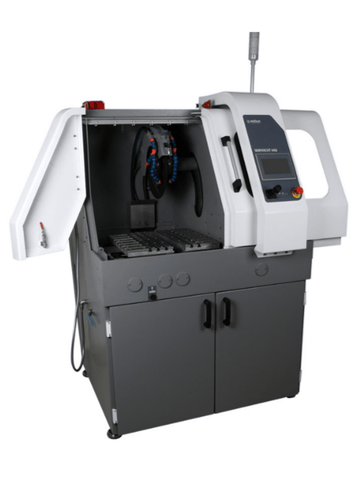

MSE Supplies offers an Automatic Abrasive Cutting Machine SERVOCUT 402-AA(-AX) from Metkon Instrument Inc. SERVOCUT 402 is an advanced universal metallographic

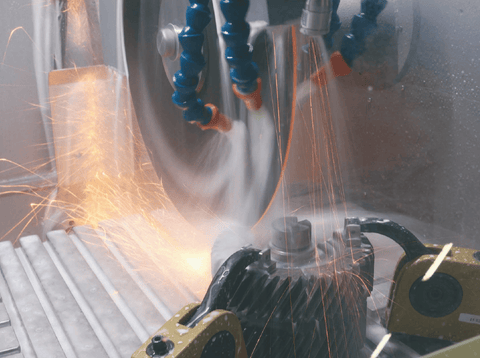

cutting machine with high cutting capacity that is used to cut a very wide range of materials. It offers the advantages of combining different cutting techniques and methods into the same machine to obtain superior cutting surfaces for a broad range of heavy duty cutting applications. Automatic cutting guarantees the highest level of reproducibility through the automatic processing of the specimen.

SERVOCUT 402 has a robust and reliable design with low noise and emission levels. The modern and sturdy design with powerful 7.5 kW cutting motor ensures fast and efficient cutting through the hardest and most complex materials with precise motor driven axis controls. It is used from small to large international companies and laboratories in many different industries, including: Automotive, Aerospace, Bearings, Foundries, Steelworks, Electronics, Universities and Institutes, etc.

Country of Origin: Made in Turkey

Manufacturer: Metkon Instruments Inc.

Main Features:

  • Modern and sturdy design

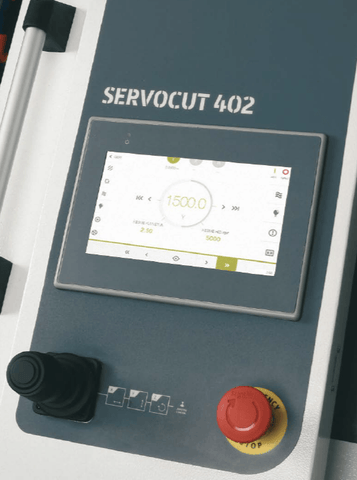

  • Programmable with 7" HMI touch screen control
  • Siemens PLC control unit
  • Automatic chop cutting and automatic table-feed cutting systems
  • Various cutting methods
  • Accurate and motorized positioning of the specimen in X-Y and Z axis (X-axis for plane parallel cutting is optional)
  • Ergonomic joystick with adjustable speed control
  • Integrated feed path control
  • Power dependent adjustable feed rate
  • Variable cutting force
  • Pulse cutting mode
  • Bar graph overload display
  • Powerful 7.5 kW cutting motor
  • Unique belt protection system
  • Variable cutting speed 600-3200 rpm
  • Electronic brake system
  • Cutting capacity up to 150/130 mm solid stock

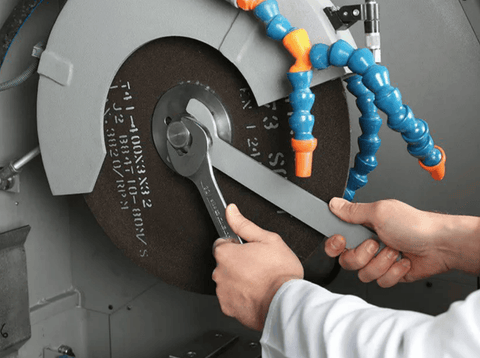

  • Cut-off wheels up to Ø400/350 mm
  • Twin T-slotted table(Y-direction only) made of stainless steel
  • Bottom part as rugged alloy base casting

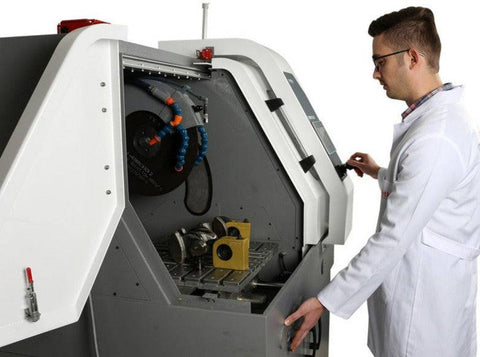

  • Extraordinary access for easy handling with sliding door and side openings
  • Advanced cutting features for difficult workpieces
  • Ready for operation.
  • Includes a standard set of cutting consumables composed of:
    *An assortment of 20 cut-off wheels with 400 mm dia.
    *5 lt of Metcool cooling fluid

    For more details of SERVOCUT 402 Abrasive Cutting Machines, click here.

    Compared with SERVOCUT 402-AA, SERVOCUT 402-AA-AX offers Parallel Cutting along X-Axis.

      Technical Specifications

      Model 402-AA 402-AA-AX
      Max. Wheel Diameter, (mm) Ø400 Ø400
      Max. Cutting Capacity, Ø (mm) Ø150  Ø150
      Max. Cutting Capacity, HxD, (mm) 85x350  85x350
      Z-Axis Travel, (mm) 255 255
      Y-Axis Travel, (mm) 300 300
      X-Axis Travel, (mm) - 150
      T-Table Dimension, (mm) 550x484 (446+150)x484
      T-Slot Dimension, (mm) 12 12
      Cutting Motor Power (S1), (kW) 7.5  7.5
      Wheel Speed, RPM 600-3200 600-3200
      Cutting Feedrate, (µm/s) 20-5000 20-5000
      HMI Touch Screen, (inch) 7 7
      Chop Cutting, Z- Axis Auto Auto
      Table Feed Cutting, Y-Axis Auto Auto
      Parallel Cutting, X-Axis - Auto
      Table Oscillating Cutting Standard Standard
      Rapid Pulse Cutting Standard Standard
      Smart Feed Control Standard Standard
      StepCut; SegmentCut; DiagonalCut Optional Optional
      Automatic Cleaning System Optional Optional
      Size WxDxH, (cm) 114x112x169 114x112x169
      Weight, (kg) 600 600
      Recirculation Cooling Unit, (lt) 135  135
      Power Supply  400 V, 3 phase, 50/60 Hz 400 V, 3 phase, 50/60 Hz


      • Additional Cutting Methods Software Package
      • Power Supply Transformer kit for 230 V, 50/60 Hz. 1 ph.
      • Cooling Systems

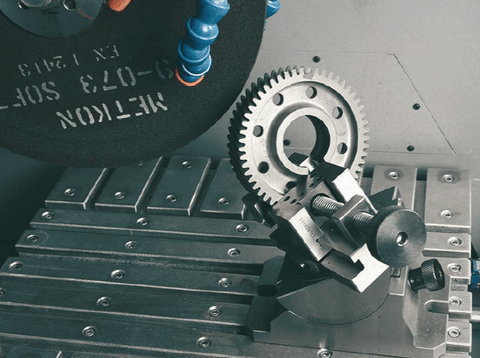

      • Clamping Devices
      • Spare Part Kit
      • Other Accessories


      • Treno Series Abrasive Cut-off Wheels
      • Diamond Cut-off Wheels
      • Cutting Fluid

      For accessories and consumables, please contact us so we can help you choose appropriate products for your needs.

      About Metkon: Since 1993, METKON as a young and dynamic company, has delivered more than 20,000 instruments globally. Metkon provides innovative Sample Preparation and Testing Instruments and Consumables for Materials and Microstructure Analysis. It offers expertise and know-how to our customers worldwide to enable them to reach the "True and Excellent Sample".

      MSE Supplies is an authorized distributor for Metkon Instrument Inc.
