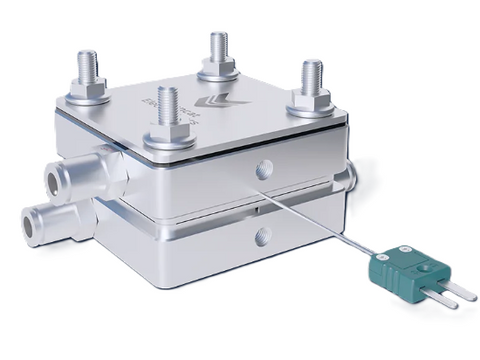

LEANCAT Laboratory MEA Testing Hardware - 5 cm² Active Area
SKU: LCWE-lab-5cm
LEANCAT Laboratory MEA Testing Hardware - 5 cm² Active Area
Buy LEANCAT products from MSE Supplies at the best value.
Overview
-
Test hardware for MEA and porous layers
-
Suitable for PEM or AEM electrolyzers
-
Possibility to pressurize up to 50 bar
-
Simple assembly and durable construction
Specifications
| Number of cells for testing | 1 |
| Operating pressure hydrogen | up to 50 bar(g) |
| Max. temperature | up to 180°C |
| Gas connection type | G 1/8“ |
| Material of bipolar plate | Titanium Grade 1 |
| Thickness of bipolar plates | 3 mm |
| Active area | 5 cm² |
| Material of gasket | Silicone |
| Base and upper plates material | Stainless steel |
| Operating pressure oxygen | up to 50 bar(g) |
| Temperature sensors | 1 mm K-type thermocouples included |
| Material of current collectors | Stainless steel |
| Flow field | Serpentine |
| Type of gasket | Flat |
| Thickness of gasket | 1,5 mm |
MSE Supplies offers a variant of water electrolyzer. Please contact us for more information.
