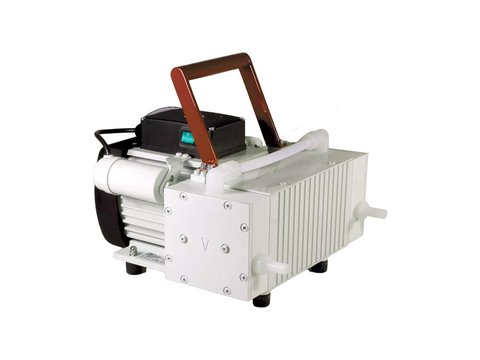

KNF N860.3FT.18 Diaphragm Vacuum Pump
SKU: N860.3FT.18
KNF N860.3FT.18 Diaphragm Vacuum Pump
Buy KNF pumps from MSE Supplies at the best value.
The chemically-resistant series N860.3FTP diaphragm pump is KNF's largest laboratory twin-head unit. There is a wide range of applications for this pump in the lab.
It is used especially whenever clean vacuum is required.
Examples include vacuum-drying of vacuum oven chambers for drying or heat-treating substances and components or larger rotary evaporators, vessels, filters and textiles. Due to its high resistance to aggressive media, this pump can be used with most all solvents.
The heart of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was stress-optimized using the Finite Elements method. As a result, we were able to make the pumps smaller while increasing the service life of the diaphragm.
Technical Features:
- 100% oil-free transfer
- Highly compatible with vapors and condensation
- Chemically-resistant
- suitable for highly aggressive or corrosive gases and vapors
- Maintenance-free
- Environmentally friendly
- Gastight, leakage rate approx. 6 x 10-3 mbar x l/s
MSE Supplies is an authorized distributor of KNF pumps.
| SKU# | N860.3FT.18 |
| KNF Model | N860 |
| Voltage | 115V, 60Hz 1Ph |
| Free Air Displacement @60Hz (L/min) | 60 |
| Ult. Vac. Pressure (torr) | 1.5 |
| Head Material | PTFE |
| Diaphragm | PTFE-coated |
| Valves | FFPM |
| Weight (lbs) | 33 |
| Tubing ID (inch) | 1/2 |
| Overall Dimensions LxHxW (mm) | 331x278.5x291 |
