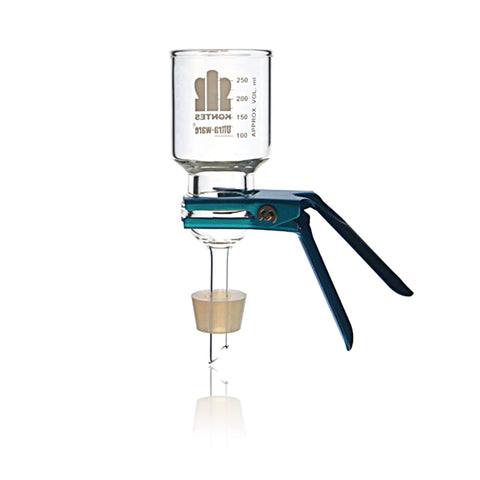

KIMBLE® ULTRA-WARE® 90 mm Microfiltration Assembly, 1000mL Funnel
SKU: DWK953755-0090
KIMBLE® ULTRA-WARE® 90 mm Microfiltration Assembly, 1000mL Funnel
Buy DWK Life Sciences products from MSE Supplies at the best value.
With Fritted Glass, Support
The 90 mm vacuum microfiltration assemblies are designed for large sample volumes or samples with high particulate loads that would tend to clog a 47 mm diameter filter. The assembly with fritted glass support is used for general filtration.
- Filtration rates are up to four times faster than 47 mm filters
- The funnel is graduated from 300 to 1000 mL in 50 mL increments
- Maximum funnel capacity is 1100 mL
- Prefilter size is 70 mm diameter; approximate filter area is 38.5 cm ²
- Connection to our 1 liter filtration flask (available as an accessory) is made with a #8 silicone stopper
- Unit is supplied with a 40-60 micron porosity fritted glass support base, a 1 liter graduated funnel, an anodized aluminum clamp and a #8 silicone stopper
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
| Catalog No | Funnel Capacity (mL) | Overall Height (mm) | Clamp Width (mm) | Pack Size |
|---|---|---|---|---|
| 953755-0090 | 1000 | 160 | 350 | Case of 1 |
