Kern Ultrasonic Thickness Gauge External TD 225-0.1US
SKU: TD 225-0.1US
Kern Ultrasonic Thickness Gauge External TD 225-0.1US
MSE Supplies offers a Ultrasonic Thickness Gauge External from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Compact pocket-sized material thickness gauge.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- External measuring head for difficult-to-access measuring points
- Data interface RS-232, included
- AUTO-OFF function to preserve the battery
- Selectable measuring units: mm inch
- Base plate for adjustment included
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 8 mm) and ultrasound contact gel

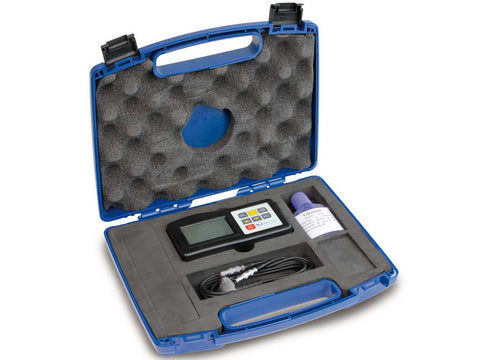

- Delivered in a robust carrying case.
Product Parameters
| Material thickness pulse-echo [Max] (mm) | 225 mm |
| Material thickness pulse-echo [Min] (mm) | 1,2 mm |
| Measuring range pulse-echo | 1,2 mm – 225 mm |
| Measuring range echo-echo | – |
| Readability material thickness [d] (mm) | 0,1 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 5 MHz |
| Battery | 4×1.5 V AAA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 30×65×120 mm |
| Cable length | 0,9 m |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
