Kern PCB-2023e IoT-Line Series Compact Laboratory Balance

  • £36000
  • Save £4400

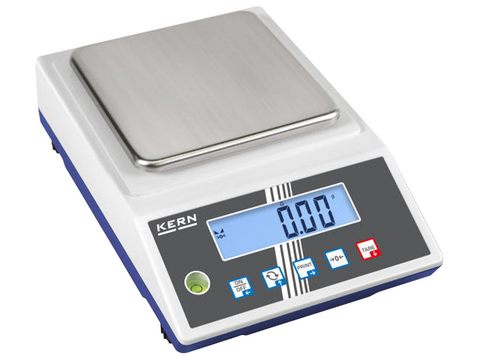

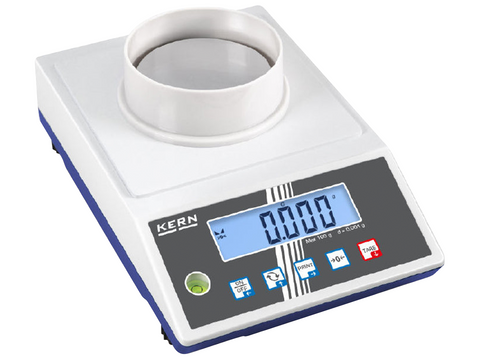

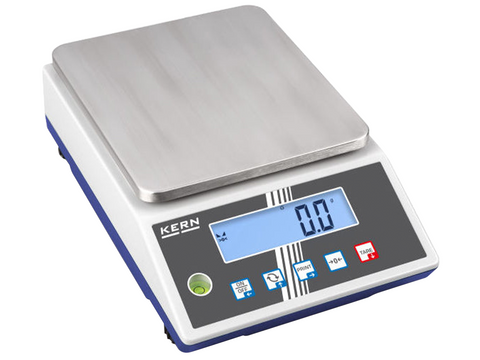

Kern PCB-2023e IoT-Line Series Compact Laboratory Balance

Buy Kern products from MSE Supplies at the best value.

MSE Supplies offers PCB-2023e IoT-Line Series Compact Laboratory Balance from KERN & SOHN GmbH. It is the standard in the laboratory and ideal for a wide range of applications for Industry 4.0.

Country of Origin: Made in Germany

Manufacturer:  KERN & SOHN GmbH

Main Features:

  • Compatible with school-specific software solutions such as, for example, Vernier® or LabQuest®. Thanks to the KERN School Protocol, as part of technical experiments, weighing data can be transferred to a PC, laptop, etc. for evaluation and display using the USB data interface
  • Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WLAN, Analogue, Ethernet etc. The outstanding advantage here is that the KUP interface adapters are simply plugged in, i.e. retrofitting interfaces is conveniently possible without opening the scale housing or complicated installation. The interface adapters enable convenient transmission of weighing data to networks, PCs, smartphones, tablets, laptops, printers etc. In addition, control commands and data inputs can also be sent to the scale via the connected devices. Tip: with the KERN YKUP-13 extension box, up to three KUP interface adapters can be operated in parallel on the scale.
  • KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
  • Standardized, simplified concept of operation
  • PRE-TAREfunction for manual subtraction of a known container weight, useful for checking fill-levels
  • With the recipe function you can weigh the different ingredients of a mixture. As a check, you can also call up the total weight of all the ingredients
  • Weighing with tolerance range(check weighing): a visual and audible signal helps with portioning, dispensing or grading
  • Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m2, or similar
  • A special Anti-Shock system between the weighing plate and weighing cell reduces vibrations during the weighing process and in this way ensures rapid, reliable weighing results
  • Protective working cover included with delivery
  • Individual header data: the free software KERN SHM-01 can be used to print 4 header lines on the printout for printers 911-013YKN-01YKB-01NYKE-01 and YKC-01 (in combination with YKI-02)

Accessories:

  • Rechargeable battery
  • RS-232 External data interface
  • External data interface USB
  • External data interface Ethernet
  • Interface adapter with cable
  • Extension-Box
  • Software Balance Connection
  • Protective working cover
  • Bluetooth interface adapter

For accessories, please contact us so we can help you choose appropriate products for your needs.

    Technical Specifications:

    Parameter

    PCB2003

    PCB20001

    PCB30002

    PCB60001

    Readability

    0.1 mg

    100 mg

    10 mg

    100 mg

    Weighing range (max)

    200 g

    2000 g

    3600 g

    6000 g

    Repeatability

    1 mg

    100 mg

    10 mg

    100 mg

    Linearity

    5 mg

    200 mg

    50 mg

    300 mg

    Stabilization time

    3 sec

    Adjustment weight

    External calibration

    Warm-up time

    120 min

    30 min

    120 min

    Weighing plate dimension (stainless steel)

    82 mm

    130 mm x 130 mm

    150 mm x 170 mm

    Dimensions of the housing (W x D x H)

    163 mm x 245 mm x 65 mm

    Weighing space

    90 | 40

     -

    Net weight (kg)

    1

    1.4

    1.6

    Operating temperature

    -10°C ~ 40°C

    Operating Humidity

    80 % relative (not condensing)

    Input voltage

    100 V -240 V AC, 50 / 60 Hz

    * For applications that require verification, please order verification at the same time

    About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!

    MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
