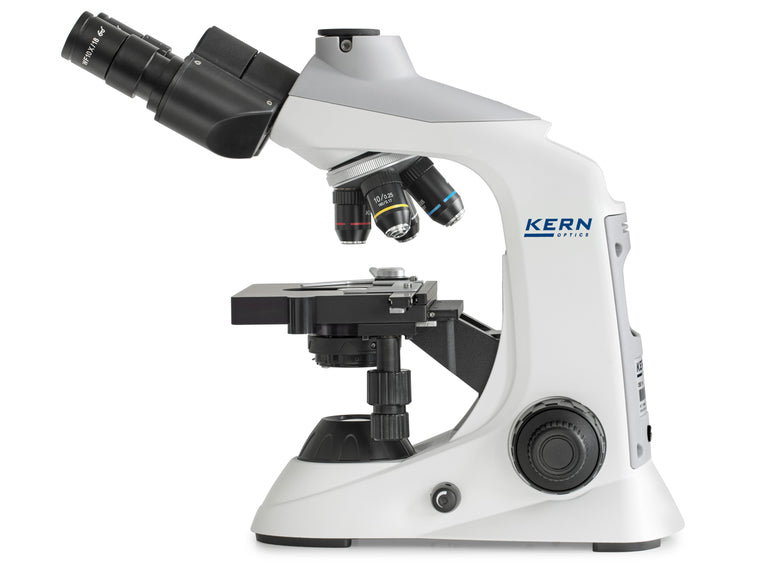

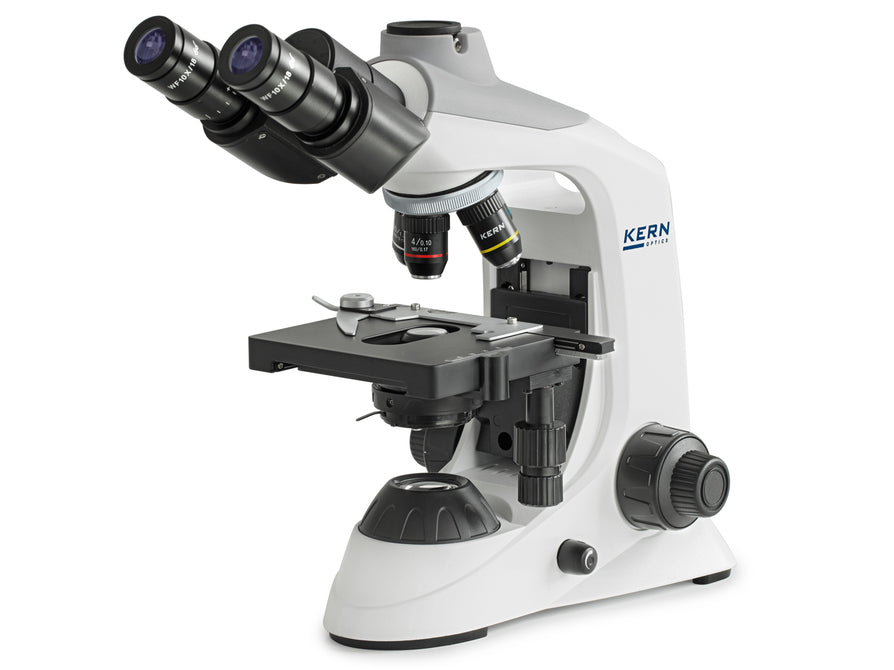

Kern Compound Microscope OBE 124
Kern Compound Microscope OBE 124
Buy Kern products from MSE Supplies at the best value.
MSE Supplies offers a Compound Microscope from KERN & SOHN GmbH. They are the ideal helper for getting started with the analysis of your optically active solutions in the laboratory.
Compound microscopes are used to view small samples that cannot be identified with the naked eye. These samples are typically placed on a slide under the microscope. When using a stereo microscope, there is more room under the microscope for larger samples such as rocks or flowers and slides are not required.
Country of Origin: Made in Germany
Manufacturer: KERN & SOHN GmbH
Product Features
- The KERN OBE 124 stands out through its exclusive, dynamic device, which is second to none in terms of sturdy construction and ergonomics. The clever storage compartment on the back will enables quick practical storage for your power cable. Thanks to the USB connection technology, it is also possible to supply power using an external powerbank
- The impressive, infinitely dimmable 3W LED guarantees bright illumination of your sample
- A further highlight is the Butterfly tube which is integrated as standard and which enables you to achieve the ideal viewing angle. The height-adjustable and thereby focusable 1.25 Abbe condenser with aperture diaphragm is a further quality feature of the OBE range and guarantees the very best concentration of light
- Height adjustment of the fully-equipped mechnical stage is carried out using a coarse and fine focusing knob on bothsides. The ergonomically designed coaxial drive enables you to work with the samples and move them rapidly
- A large selection of different eyepieces and objectives are available to you as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery.
- A C-mount adapter is required to connect a camera
- Scope of application: Training, haematology, sediment investigation, doctor’s practise
Applications
Translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/ parasites)
Product Parameters
| Optical system | Finite |
| Tube type | Trinocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 18 mm |
| Standard objectives | 4×, 10×, 40× |
| Lens quality | achromatic |
| Nosepiece screw-in locations | 4 |
| Illuminance | Transmitted light |
| Illumination type transmitted light | LED |
| Illumination intensity transmitted light | 3 W |
| Focusing mechanism | coaxial coarse and fine drive |
| Fine drive minimum | 0,002 mm |
| Dimension (W×D×H) | 360×150×320 mm |
| Product family | OBE-12 |
About KERN & SOHN GmbH: Founded in 1844 and manufactured the most accurate balances of its time. Kern's business became the core cell of the internationally famous, southern German precision balance manufacturing. With over 175 years of experience and the devotion to quality have enabled them to become specialists in the weighing field that stands for precision and reliability. Discover the KERN route to success: fast – competent – reliable – versatile!
MSE Supplies is an authorized distributor for KERN & SOHN GmbH.
