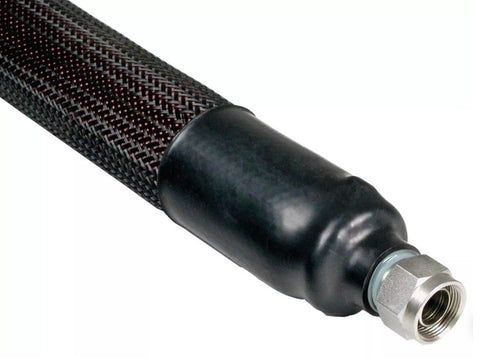

Julabo Metal Tubing (M16x1) Triple Insulated 3.0m (-100…350°C)
SKU: 8930214
To better serve you, we would like to discuss your specific requirement.
Please Contact Us for a quote.
-Request a Quote
Julabo Metal Tubing (M16x1) Triple Insulated 3.0m (-100…350°C)
Technical Data
- Working temperature range: -100 °C to +350 °C
- Material: Stainless steel 1.4404
- Insulation: Special triple insulation. The ends are covered with silicon caps.
- Connection: M16x1 thread
- Length: 3 m
- External diameter: 45 mm
- Nominal diameter: 10 mm
- Maximum pressure at 20 °C: 6 bar
- Maximum pressure at 350 °C: 4 bar
- Min. bending radius: 190 mm
- Fire behavior: UL94-HB / UL94-V2
- Color: schwarz
