Julabo MAGIO MS-449F Refrigerated/Heating Circulators

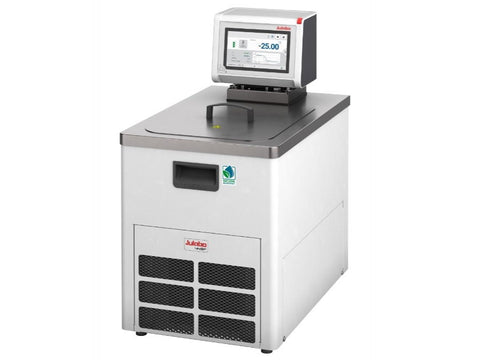

Julabo MAGIO™ MS-449F Refrigerated/Heating Circulators
MAGIO™ MS-449F refrigerated/heating circulator with an operating range of -32…+200°C with ±0.01 °C stability; cooling power 460W at 20 °C and 80W at -30 °C. Suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Analog module accessory available (9900100). Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. 3-4L stainless steel bath tank with integrated drain port. Options for heating power (1kW or 2kW). R290 natural refrigerant.
Class III (FL) according to DIN 12876-1.
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Specifications
|
Part Number |
9032716.N1.02 |
9032716.N1.33 |
|
Voltage Version |
115V/60Hz |
200-230V/50-60Hz |
|
Refrigerant |
R290 |
R290 |
|
Heating & Cooling |
Both |
Both |
|
Working Temp Range (°C) |
-30 - 200 |
-30 - 200 |
|
PCF Pressure (psi) |
3.5 - 13.3 |
3.5 - 13.3 |
|
PCF Rate (L/min) |
16 - 31 |
16 - 31 |
MSE Supplies is an authorized distributor of Julabo products.
