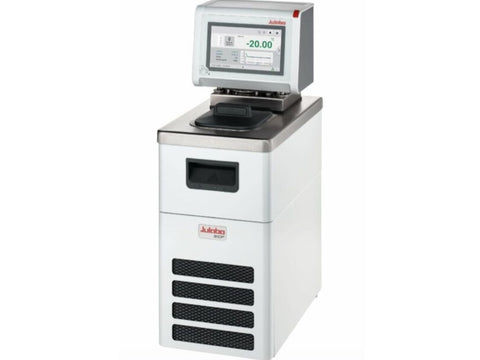

Julabo MAGIO MS-310F Refrigerated/Heating Circulators
Julabo MAGIO™ MS-310F Refrigerated/Heating Circulators
MAGIO™ refrigerated/heating circulators are suitable for temperature applications with circulation to an external apparatus or immersing a device in the bath tank. Refrigeration combinations afford low temperature capabilities from -30 °C to -50 °C with an upper temperature limit of 200 °C. The MAGIO™ MS circulator incorporates easy operation via a large color TFT touchscreen. Unit fittings M16x1 male threaded adapters including a pair of 8 and 12 mm hose barbs. A multi-lingual interface, integrated programmer, Pt100 port for external temperature control, RS232/RS485, USB and Ethernet connections for external PC control and data-logging. Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). PID temperature control provides ±0.01 °C stability. Infinitely variable centrifugal pressure/suction pump capacity of 16-31 L/min with pressure to 3.4-13.3 psi. Stainless steel bath tanks with integrated drain port. 115V version with 1 kW heating power; 230V version with 2 kW heating power.
Class III (FL) according to DIN 12876-1.
Class III (FL) according to DIN 12876-1.
Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Specifications
|
Part Number |
9032713.N1.02 |
9032713.S1.02 |
9032713.S1.33 |
9032713.N1.33 |
9032713.S1.02.CSA/UL |
|
Voltage Version |
115V/60Hz |
115V/60Hz |
200-230V/50-60Hz |
200-230V/50-60Hz |
115V/60Hz |
|
NRTL Certified? |
No |
No |
No |
No |
Yes |
|
Refrigerant |
R290 |
R449A |
R449A |
R290 |
R449A |
|
Heating & Cooling |
Both |
Both |
Both |
Both |
Both |
|
Working Temp Range (°C) |
-30 - 200 |
-30 - 200 |
-30 - 200 | -30 - 200 | -30 - 200 |
|
PCF Pressure (PSI) |
3.5 - 13.3 |
3.5 - 13.3 |
3.5 - 13.3 | 3.5 - 13.3 | 3.5 - 13.3 |
|
PCF Rate (L/min) |
16 - 31 |
16 - 31 |
16 - 31 | 16 - 31 | 16 - 31 |
