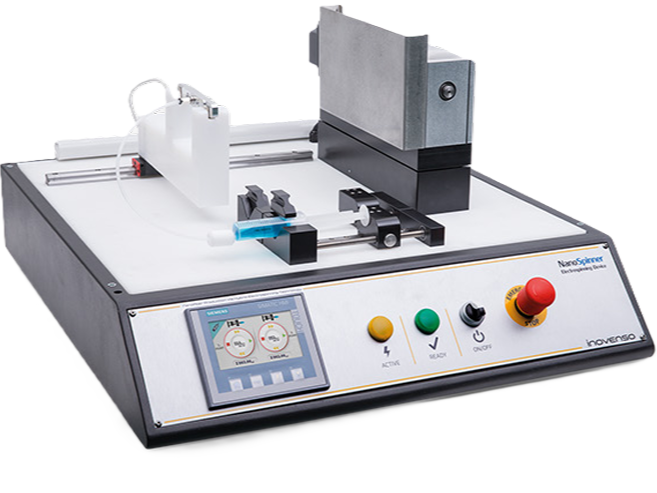

Inovenso Entry Level NS1 NanoSpinner Electrospinning / Spraying Equipment
Buy Inovenso Electrospinning/Spraying Equipment from MSE Supplies at the best value.
Overview
The NS1 model includes all the basic components required for electrospinning operations: syringe pump, high voltage power supply, and collector parts. It is possible to apply high voltage with precision as well as adjust the flow rate and the distance between the needle and collector. The spinning area is not enclosed in a cabinet, but the small size of the system allows it to fit inside a fume hood.
The 4.3” touch screen panel on the NS Plus offers reliable and precise process adjustments, providing significant benefits to users:
-
Ease of Use: The intuitive interface simplifies operation, making it accessible even for those with minimal technical knowledge.
-
Precision: Fine-tuning settings directly on the touch screen allows for accurate control over process parameters, enhancing the quality and consistency of results.
-
Efficiency: Quick adjustments and real-time feedback streamline workflows, reducing downtime and increasing productivity.
-
User Experience: The clear visuals and easy navigation on the large screen improve overall user satisfaction.
Optimized and Versatile Nanofiber Production for Budget-Friendly Research
he NS1 model by Inovenso is a fundamental electrospinning unit designed for small-scale nanofiber production. It includes essential components such as a syringe pump, high voltage power supply, and collector parts, making it a reliable choice for basic electrospinning operations. Its compact size allows it to fit inside a fume hood, ensuring safe operation despite the absence of an enclosed cabinet.
-
Essential Components: The NS1 comes with a syringe pump, high voltage power supply, and collector parts, providing everything needed for efficient electrospinning.
-
Precision Control: Allows for precise application of high voltage, adjustment of flow rate, and distance between the needle and collector.
-
Compact and Flexible: The small size of the NS1 makes it ideal for fitting inside a fume hood, offering flexibility and safety in various lab environments.
Fully Safe Electrospinning Experiment
Inovenso’s NS1 electrospinning machine is designed with fundamental safety features to ensure a secure operating environment. While compact, the NS1 includes essential components required for safe and efficient electrospinning operations, making it ideal for small-scale research projects.
-
Basic User Protection: The NS1 allows for precise application of high voltage and adjustment of flow rate and distance between the needle and collector, reducing the risk of accidents during operation.
-
Flexibility in Safe Environments: Its compact size fits easily inside a fume hood, providing an added layer of safety by containing solvent vapors and any potential hazards within a controlled environment.
-
Operational Efficiency: By ensuring precise control over critical parameters, the NS1 contributes to the efficiency and reliability of the electrospinning process, minimizing risks and maximizing productivity.
-
User Confidence: With essential safety measures in place, researchers can conduct their work with confidence, focusing on their experiments without undue concerns about safety.
Technical Specifications:
| Description |
Entry Level Multi Nozzle Electrosprinning Unit |
| Spinning-Type |
Side By Side Spinning |
| CONSTRUCTION |
| Chassis |
No Closed Chassis For Spinning Area |
| Feeding Area Material |
PE 1000 (High Density, Chemical Resistant) |
| Collector Material |
7000 Series Aluminum Alloy, Stainless Steel |
| LED Illumination |
- |
| Total Weight |
Approx. 40 kgs |
| Dimensions |
W: 740 mm L: 645 mm H: 410 mm |
| HIGH VOLTAGE POWER SUPPLY |
| Voltage Range |
0 - 30 kV |
| Voltage Precision |
0.1 kV |
| Max. Current |
0.170 mA |
| HIGH PRECISION MICRO PUMP |
| Flow Rate |
0.35 - 71.23 ml/h (BD 60 ml syringe) |
| Flow Rate Precision |
0.01 ml/h |
| Available Syringes |
All types are available |
| FEEDING AREA |
| Number of Nozzles |
1 |
| Nozzle Material |
Electrically Conductive Stainless Steel |
| Nozzle Inner Diameter |
0.8 mm |
| Compatible with Standard Syringe Nozzles |
Yes |
| Minimum Required Solution for Single Nozzle Feeding |
2 ml |
| SPINNING DISTANCE |
| Distance Between Nozzle and Collector |
30 mm - 300 mm |
| Distance Adjustment |
Manual Control |
| STATIONARY PLATE COLLECTOR |
| Material |
Stainless Steel |
| Dimensions of Stationary Plate |
300 mm x 238.5 mm |
| UNIQUE USER INTERFACE |
| Description |
4.3” touch screen control panel with a user-friendly interface |
| Fully able to control all parameters |
Yes |
| SAFETY FUNCTION |
| Emergency Button & Safety Relay |
Yes |
| Over Current Protection |
Yes |
