IKA VOL-SP-13.5 Viscometers (40°C) - MSE Supplies LLC

IKA VOL-SP-13.5 Viscometers

  • £34300
  • Save £600


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025006852

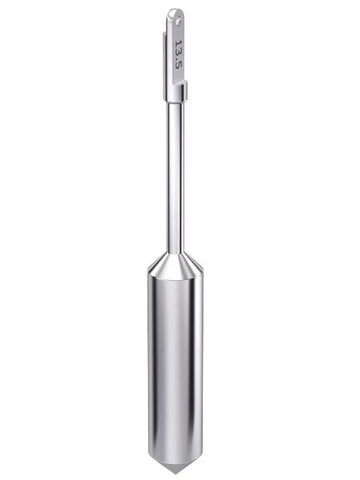

VOL-SP-13.5 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 13.5 ml.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA VOL-SP-13.5 Viscometers

Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 7.6 mm
Immersion depth 33.6 mm
Spindle length 66.7 mm
Sample volume 13.5 ml
Flow Jacket yes
Mounting Bracket yes
Sample container: Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 468.7 mPa.s
Max. FSR match ROTAVISC lo-vi 93730 mPa.s
Min. FSR match ROTAVISC me-vi 5000 mPa.s
Max. FSR match ROTAVISC me-vi 1000000 mPa.s
Min. FSR match ROTAVISC hi-vi I 10000 mPa.s
Max. FSR match ROTAVISC hi-vi I 2000000 mPa.s
Min. FSR match ROTAVISC hi-vi II 40000 mPa.s
Max. FSR match ROTAVISC hi-vi II 8000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 10 x 69 x 10 mm
Weight 0.012 kg
Permissible ambient temperature 5 - 40 °C
