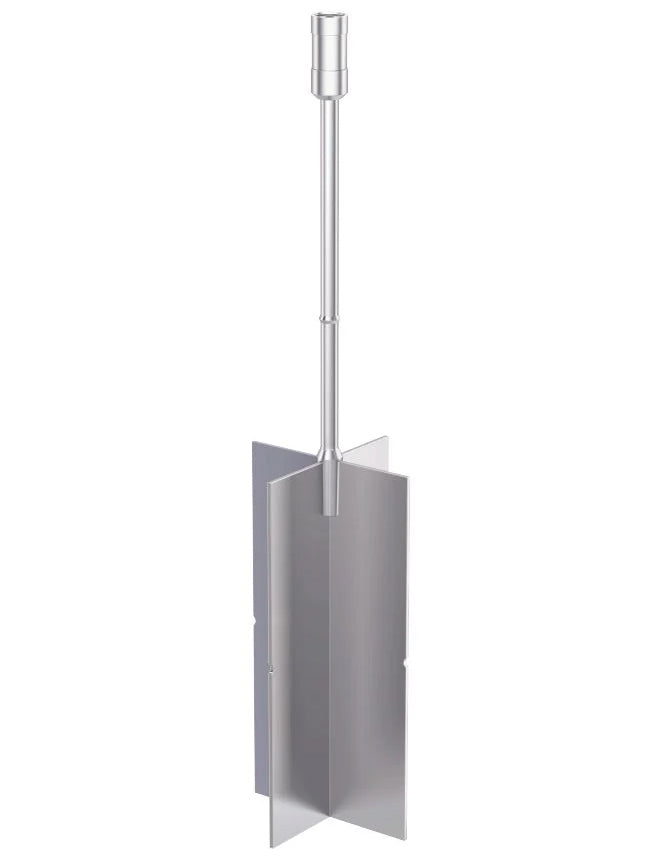

IKA VAN-SP-1 Viscometers
SKU: 0025006853
IKA VAN-SP-1 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025006853
Vane spindle
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA VAN-SP-1 Viscometers
| Spindle geometry | Vane |
| Connection | Thread M2.5 LH |
| Quick plug connector | yes |
| Hook connector | yes |
| Diameter | 34.4 mm |
| Immersion depth | 94.4 mm |
| Spindle length | 147.4 mm |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 12.3 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 2456 mPa.s |
| Min. FSR match ROTAVISC me-vi | 131 mPa.s |
| Max. FSR match ROTAVISC me-vi | 26200 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 262 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 52400 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 1048 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 209600 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 149.5 x 35 x 35 mm |
| Weight | 0.036 kg |
| Permissible ambient temperature | 5 - 40 °C |
