IKA VAN-1 Viscometers

  • £67900
  • Save £8100


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025000407

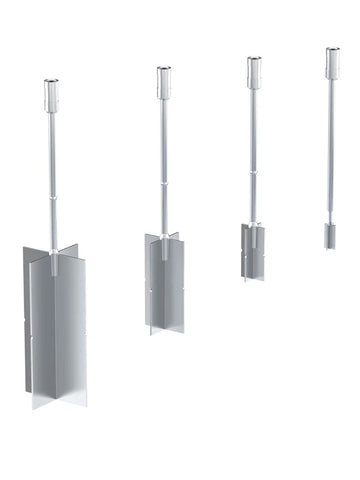

The vane spindle set allows the viscosity measurement of suspensions. Four vane spindles are included in the delivery.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA VAN-1 Viscometers

Spindle geometry Vane
Connection Thread M2.5 LH
Quick plug connector yes
Hook connector yes
Sample volume 500 ml
Sample container: 600mL beaker low
Working temperature max. 300 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 24.6 mPa.s
Max. FSR match ROTAVISC lo-vi 5100000 mPa.s
Min. FSR match ROTAVISC me-vi 262 mPa.s
Max. FSR match ROTAVISC me-vi 54300000 mPa.s
Min. FSR match ROTAVISC hi-vi I 524 mPa.s
Max. FSR match ROTAVISC hi-vi I 108600000 mPa.s
Min. FSR match ROTAVISC hi-vi II 2100 mPa.s
Max. FSR match ROTAVISC hi-vi II 434000000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 160 x 82 x 270 mm
Weight 0.432 kg
Permissible ambient temperature 5 - 40 °C
