IKA TW.IX Stirring Attachment Magnetic Stirrers

  • £26500
  • Save £500


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020103426

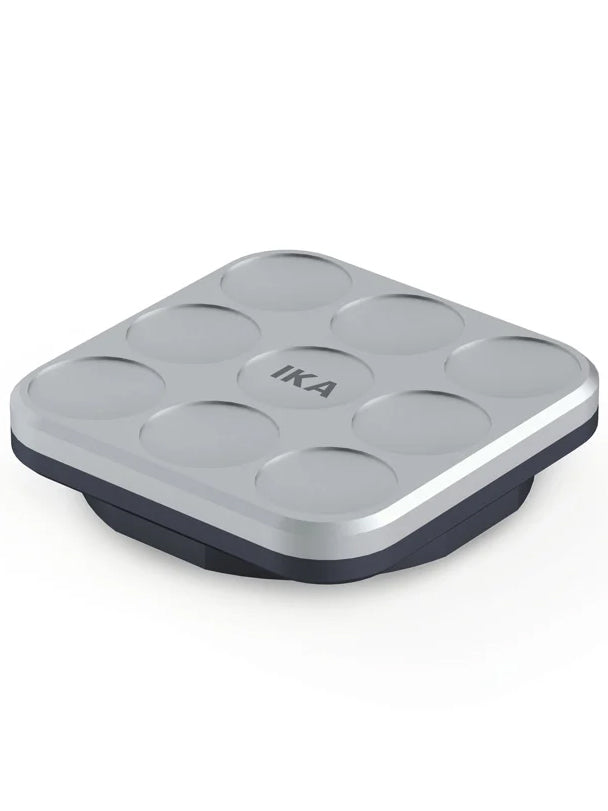

With the TW.IX multi-position stirring attachment for TWISTER, the number of stirring positions can be increased from 1 to 9. The attachment is perfectly suited for mixing in small sample vessels with diameters of 23 - 28 mm and volumes of 8 - 60 ml.

Each of the nine stirring positions has its own magnetic drive, which enables powerful mixing in each individual sample. Thus, up to 3000 rpm per stirring position can be achieved in aqueous solutions. Mixing of higher viscous media at lower speeds is also easily possible with the TW.IX attachment. Special elliptical rare earth magnetic stirring bars (IKAFLON 10 / 15 / 20 power ellipse) are available as accessories for perfect magnetic connection at viscosities above 100 mPas.

The TW.IX attachment is fixed to the base unit with the integrated adhesive pad and can be mounted and dismounted as often as required.

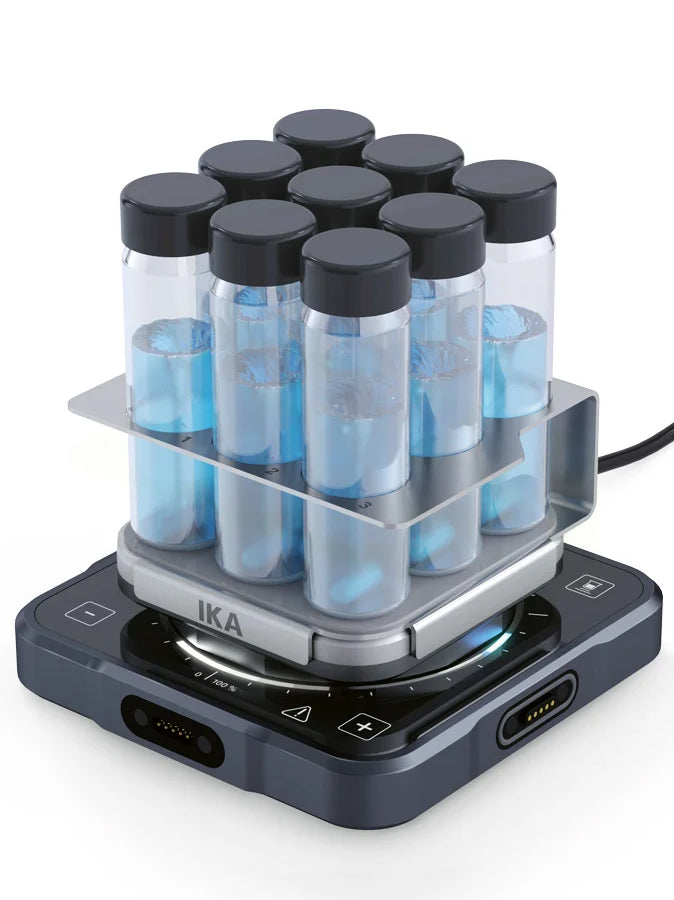

For easier handling and to prevent the sample vessels from falling over, the use of the vessel holders TW.IX.28 and TW.IX.23 is recommended (available as accessories).

Scope of delivery

  • IKAFLON 10 round (5 pcs.) (2 pcs.)

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA TW.IX Stirring Attachment Magnetic Stirrers

Number of stirring positions 9
Stirring position distance 30 mm
Speed deviation of individual stirring positions 0 %
Stirring quantity max. per stirring position (H2O) 0.060 l
Stirring quantity min. per stirring position (H2O) 0.008 l
Vessel diameter min. 12 mm
Vessel diameter max. 27.5 mm
Width 95 mm
Height 21 mm
Weight 0.460 kg
