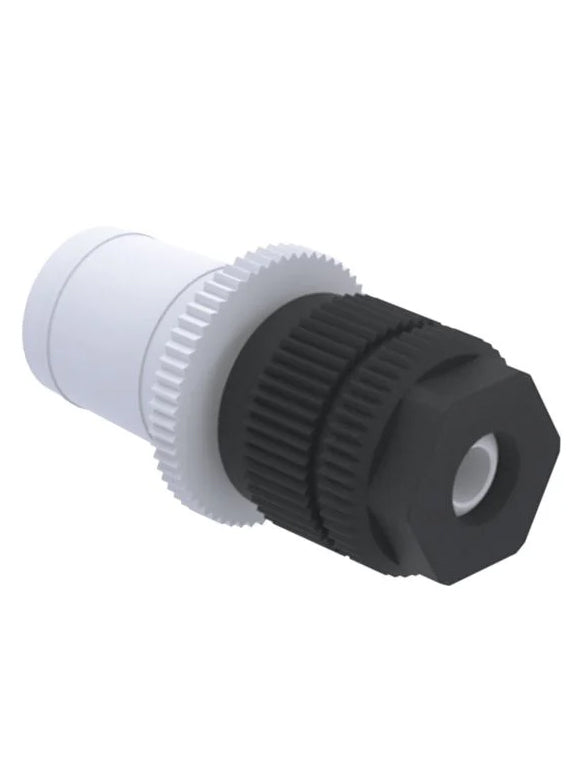

IKA SY NS.8 Swivelling Screw Fitting Synthesis Reactors
SKU: 0020113164
IKA SY NS.8 Swivelling Screw Fitting Synthesis Reactors
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020113164
Adapter for holding the Temperature sensors PT 100.300 and PT 100.500 and for holding hoses or tubes with an outer diameter of 8 mm.
Fits in NS 29/32 ground joints.
The picked-up object can be fixed in the desired position with an angle of inclination of up to 7°.
Suitable for vacuum applications.
Material: PTFE, PPS.
Temperature resistance: -20 - 200 °C.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA SY NS.8 Swivelling Screw Fitting Synthesis Reactors
| Height (room dimension) | 78 mm |
| Outer diameter | 40 mm |
| Vacuum application | yes |
| Standard ground joint | NS 29/32 |
| Drive shaft diameter | 12 mm |
| Material in contact with medium | PTFE |
| Stirring element fastening | chuck |
