IKA STARVISC 200-2.5 Control Measuring Stirrers (2000 rpm, 6000 min) - MSE Supplies LLC

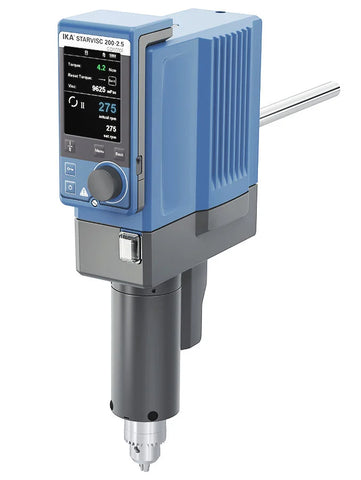

IKA STARVISC 200-2.5 Control Measuring Stirrers (2000 rpm, 350°C)

  • £7,47600
  • Save £89700


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020006998

Measure viscosity and display it, even during product development: the new IKA STARVISC 200-2.5 control torque-measuring stirrer makes it possible. The result can be read in real-time on the display. STARVISC therefore has a broad range of applications. This is particularly helpful during product development: STARVISC already clearly indicates while running research programmes as to whether the stirred substance can be used as desired.

High-precision measurement
STARVISC measures in a highly precise way and does this even during the manufacturing process. Samples no longer have to be taken separately.

Viscosity calculation
A viscosity calculation can be carried out immediately via a userfriendly menu.

Removable control unit
The modern TFT display is removable. This means that STARVISC can also be controlled from a safe distance.

Powerful stirrer
Even highly viscous substances can be intensively stirred using the powerful STARVISC stirrer.

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA STARVISC 200-2.5 Control Measuring Stirrers (2000 rpm, 350°C)

Stirring quantity max. per stirring position (H2O) 100 l
Motor rating input 130 W
Motor rating output 84 W
Motor principle Brushless DC
Speed display TFT
Speed range 0/6 - 2000 rpm
Intermittent operation yes
Viscosity max. 100000 mPas
Output max. at stirring shaft 84 W
Permissible ON time 100 %
Torque max. at stirring shaft 200 Ncm
Torque I max. 200 Ncm
Torque II max. 40 Ncm
Speed range I (50 Hz) 6 - 400 rpm
Speed range II (50 Hz) 30 - 2000 rpm
Speed range I (60 Hz) 6 - 400 rpm
Speed range II (60 Hz) 30 - 2000 rpm
Speed adjustment stepless
Setting accuracy speed ±1 rpm
Deviation of speed measurement n > 300rpm ±1 %
Deviation of speed measurement n < 300rpm ±3 rpm
Stirring element fastening chuck
Connection for ext. temperature sensor PT1000
Temperature display yes
Plug-in coupling (Ø) 10 mm
Chuck range diameter 0.5 - 10 mm
Fastening on stand extension arm
Extension arm diameter 16 mm
Extension arm length 220 mm
Torque display yes
Nominal torque 2 Nm
Torque measurement yes
Deviation of torque measurement I ±2.5 Ncm
Deviation of torque measurement II ±2.5 Ncm
Timer yes
Timer display TFT
Time setting range 1 - 6000 min
Temperature measuring range -10 - +350 °C
Temperature measurement resolution 0.1 K
Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K
Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K
Housing material alu-cast coating / thermoplastic polymer
Communication distance (depend onbuilding) max. 150 m
Dimensions (W x H x D) 91 x 395 x 231 mm
Weight 5.9 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 40
RS 232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power input 130 W
