IKA S-SP Viscometers (40°C) - MSE Supplies LLC

IKA S-SP Viscometers

  • £17500
  • Save £2200


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0025006843

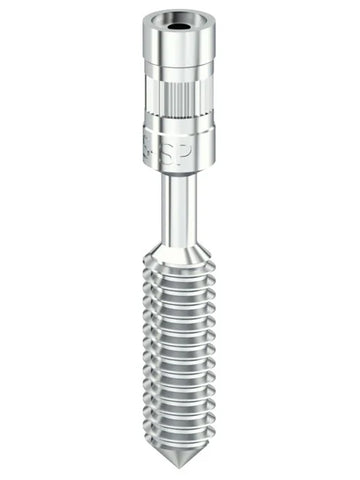

Single S-SP spiral spindle.

The spindle can only be used in combination with the SAS-1 spiral spindle adapter set

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA S-SP Viscometers

Spindle geometry Spiral
Connection Thread M2.5 LH
Diameter 6.4 mm
Immersion depth 21 mm
Spindle length 41.2 mm
Mounting Bracket yes
Sample container: Specified chamber
Viscosity Accuracy (FSR) 1 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 492.1 mPa.s
Max. FSR match ROTAVISC lo-vi 98417 mPa.s
Min. FSR match ROTAVISC me-vi 5250 mPa.s
Max. FSR match ROTAVISC me-vi 1050000 mPa.s
Min. FSR match ROTAVISC hi-vi I 10500 mPa.s
Max. FSR match ROTAVISC hi-vi I 2100000 mPa.s
Min. FSR match ROTAVISC hi-vi II 42000 mPa.s
Max. FSR match ROTAVISC hi-vi II 8400000 mPa.s
Material in contact with medium stainless steel 1.4404
Dimensions (W x H x D) 8 x 43 x 8 mm
Weight 0.008 kg
Permissible ambient temperature 5 - 40 °C
