IKA S 25EC-C-25F Dispersing Tool for T 25 Easy Clean Digital and Control Dispenser
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0025007215

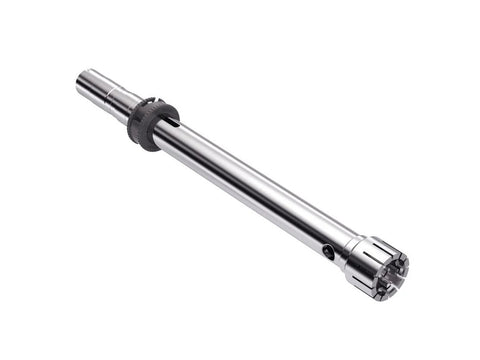

The dispersing tool S 25 EC-C-25F is particularly suitable for dispersing applications in cosmetics.
The easy clean dispersing tool is particularly easy to clean: By turning and lowering the clamp, the shaft and rotor can be dropped down till the whole rotor comes out of the stator. Then the shaft tube of the tool can also be completely rinsed from inside.
Type of bearing: Ceramic plain bearing
Product-touching material: AISL 316L, ceramics
Solvent suitable: Yes
Sterilizable: Yes, all methods
Max. working temperature [°C]: 180
Shaft length [mm]: 191
Diameter stator / rotor [mm]: 25 / 18
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 35 - 150
Recommend working range [mL]: 100 - 2000
S 25 EC-C-25F is only compatible with the dispersers T 25 easy clean digital and control.
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA S 25EC-C-25F Dispersing Tool for T 25 Easy Clean Digital and Control Dispenser
|Volume range (H2O)||0.1 - 2 L|
|Stator diameter||25 mm|
|Rotor diameter||18 mm|
|Gap between rotor and stator||0.5 mm|
|allowable Speed max.||25000 rpm|
|Circumferential speed max.||23.6 m/s|
|Immersion depth||35 - 150 mm|
|Shaft length||191 mm|
|Material in contact with medium||AISI 316L, ceramic|
|pH range||2 - 13|
|Suitable for solvents||yes|
|Suitable for abrasive substances||yes|
|Working temperature max.||180 °C|
|Sterilization methods||all methods|
|Ultimate fineness, suspensions||5 - 25 µm|
|Ultimate fineness, emulsions||1 - 5 µm|
