IKA O DIN S-1 Viscometers
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025000326

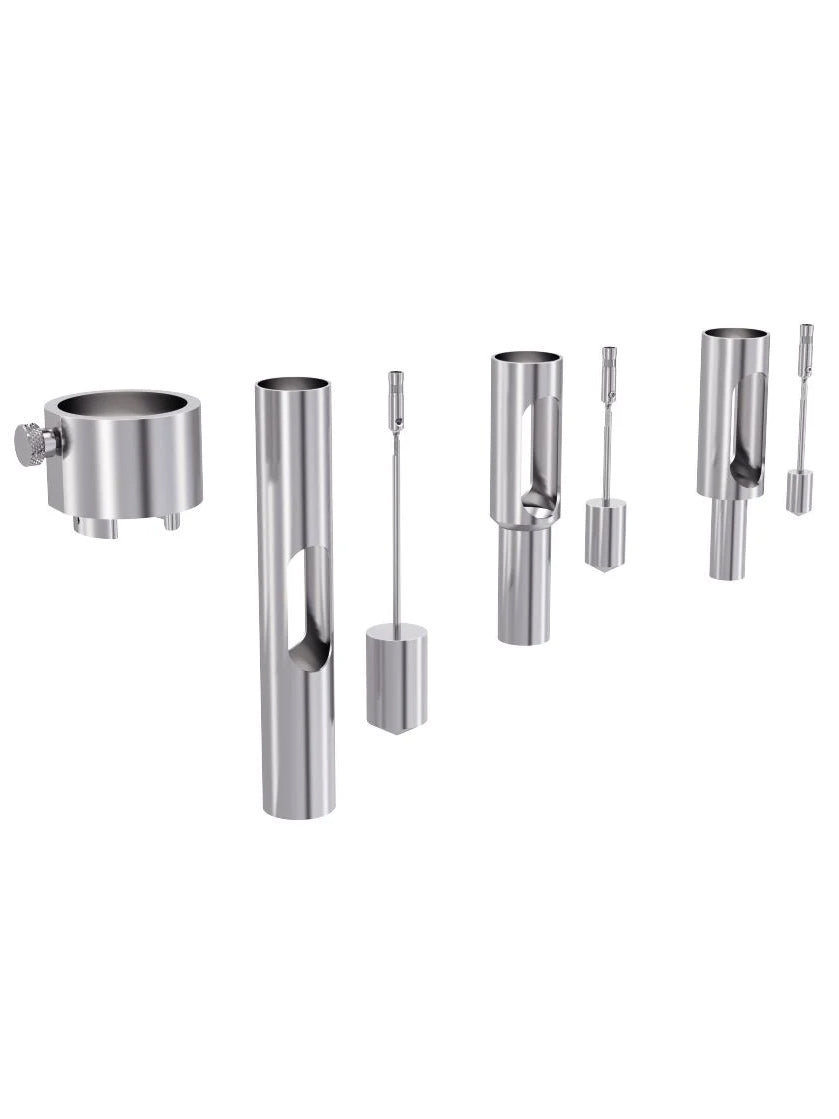

The open DIN spindle set (O-DINS-1) measures viscosities according to DIN 53019 and can be used with customer-specific vessels. The set includes a single-wall-open-jacket to quickly dive into the sample liquid as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate and shear stress is included. The maximum measurable viscosity is 50 000 mPas.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA O DIN S-1 Viscometers
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container: | Specified chamber |
| Working temperature max. | 100 °C |
| Viscosity Accuracy (FSR) | 2 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Min. FSR match ROTAVISC lo-vi | 6 mPa.s |
| Max. FSR match ROTAVISC lo-vi | 50000 mPa.s |
| Min. FSR match ROTAVISC me-vi | 61 mPa.s |
| Max. FSR match ROTAVISC me-vi | 50000 mPa.s |
| Min. FSR match ROTAVISC hi-vi I | 122 mPa.s |
| Max. FSR match ROTAVISC hi-vi I | 50000 mPa.s |
| Min. FSR match ROTAVISC hi-vi II | 488 mPa.s |
| Max. FSR match ROTAVISC hi-vi II | 50000 mPa.s |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) | 390 x 102 x 310 mm |
| Weight | 1.919 kg |
| Permissible ambient temperature | 5 - 40 °C |
