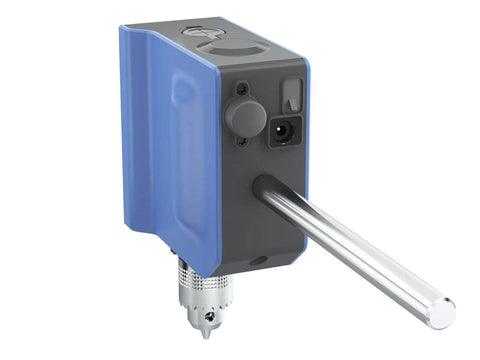

IKA MICROSTAR 30 Control Overhead Stirrers (20 L, 500 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0025005286
The new MICROSTARS series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
“The Strong One” in the smallest high-tech class, reaches up to 500 RPM!
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee. See for yourself:
“The Strong One” in the smallest high-tech class, reaches up to 500 RPM!
- Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
- State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
- Clear display for all essential information at a glance
- Integrated timer / counter for the control of kinetic sensitive reactions and reminders
- Viscosities up to 20,000 mPas and volumes of up to 20 L
- Continuously adjustable speed between 0/30 – 500 rpm
- USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates
- Intuitive and simple handling; touch-sensitive surface for long service life
- Temperature reading on display
- Chemical resistant housing
- Key lock function
- Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
- MICROSTAR 30 control
- R 300 shaft protector
- Fasten screws for R 300 (2 pcs.)
- H 67.60 Temperature sensor, stainless steel
- chuck key
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA MICROSTAR 30 Control Overhead Stirrers (20 L, 500 rpm)
| Stirring quantity max. per stirring position (H2O) | 20 L |
| Motor rating input | 32 W |
| Motor rating output | 22 W |
| Motor principle | Brushless DC |
| Speed display | LCD |
| Speed range | 0/30 - 500 rpm |
| Viscosity max. | 20000 mPas |
| Output max. at stirring shaft | 15.7 W |
| Permissible ON time | 100 % |
| Torque max. at stirring shaft | 30 Ncm |
| Speed adjustment | Turning knob |
| Setting accuracy speed | ±1 rpm |
| Deviation of speed measurement n > 300rpm | ±1 % |
| Deviation of speed measurement n < 300rpm | ±3 rpm |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | yes |
| Chuck range diameter | 0.5 - 8.2 mm |
| Hollow shaft, inner diameter | 8.5 mm |
| Hollow shaft (push-through - when stopped) | yes |
| Fastening on stand | extension arm |
| Extension arm diameter | 13 mm |
| Extension arm length | 160 mm |
| Torque display | yes |
| Speed control | electronic |
| Nominal torque | 0.3 Nm |
| Torque measurement | trend |
| Deviation of torque measurement I | ±3 Ncm |
| Timer | yes |
| Timer display | LCD |
| Time setting range | 0 - 6000 min |
| Temperature measuring range | -10 - 350 °C |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) K |
| Limit deviation temperature sensor | ≤ ± (0.15 + 0.002xITI) K |
| Housing material | alu-cast coating / thermoplastic polymer |
| Communication distance (depend onbuilding) max. | 150 m |
| Dimensions (W x H x D) | 60 x 173 x 136 mm |
| Weight | 1.26 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 54 |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 32 W |
| DC Voltage | 24 V |
| Current consumption | 1300 mA |
