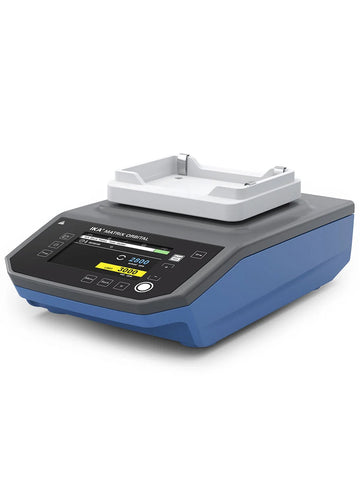

IKA MATRIX Orbital Thermoshakers (3000 rpm)

  • £1,68300
  • Save £20200

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0020025539

The IKA Matrix Orbital is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital mixes and is suitable for variable inserts. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.

In addition, IKA Matrix Orbital comes with numerous user-friendly features:

  • Large and clear display with a convenient menu structure allows for intuitive operation
  • Speeds of up to 3,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
  • Speed adjustment according to insert, attachment and filling volume
  • Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness

Scope of delivery

  • MATRIX Orbital

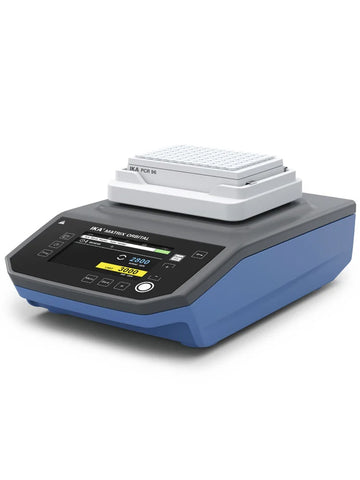

  • MX insert PCR96
  • MX insert 0.5 ml

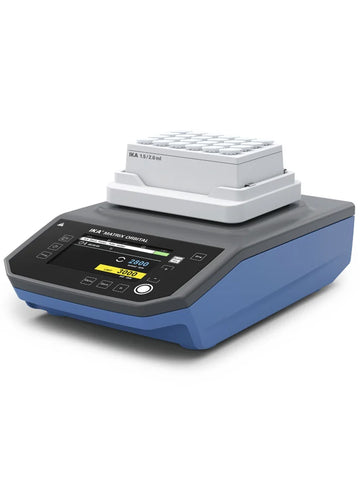

  • MX insert 1.5/2.0 ml
  • USB A-B Cable

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA MATRIX Orbital Thermoshakers (3000 rpm)

Type of movement orbital
Shaking stroke 3 mm
Maximun load 0.3 kg
Permissible ON time 100 %
Speed min (adjustable) 300 rpm
Speed range 0 - 3000 rpm
Speed display TFT
Speed deviation ±30 rpm
Speed adjustment 10 RPM Steps
Timer yes
Timer display TFT
Time setting min. 1 s
Time setting max. 6000 min
Operating mode timer and continuous operation
Working with microtiter plates yes
Number of reaction vessels 24x 0.5 ml / 24x 1.5 ml / 24x 2.0 ml
Number of PCR plates 1
Number of Deep Well Plates (DWP) 1
Dimensions (W x H x D) 200 x 120 x 320 mm
Weight 7.2 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 80 W
Power input max. 80 W
Fuse 2x T4A 250V
