IKA LR 5000.3 High Viscosity Reactors
SKU: 0020128802
IKA LR 5000.3 High Viscosity Reactors
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020128802

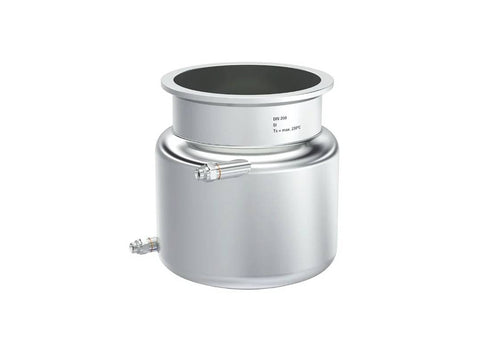

LR 5000.3 Reactor vessel
Double-walled stainless steel reactor vessel for use with the LR-5.ST laboratory reactor.
Volume: 5.0 l
Material in contact with medium: AISI 316L
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data IKA LR 5000.3 High Viscosity Reactors
| Useable volume max. | 5000 ml |
| Working temperature | -50 - 230 °C |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 25 mbar |
| Material in contact with medium | AISI 316L |
| Fill level at nominal volume | 175 mm |
| Vessel inner diameter | 200 mm |
| Vessel outer diameter | 254 mm |
| Height (room dimension) | 289 mm |
| Width (room dimension) | 259 mm |
| Depth (room dimension) | 254 mm |
| Flange dimension | DN200 |
| Flange collar diameter | 204 mm |
| Bottom shape | Torispherical head |
| Bottom drain | yes |
| Bottom valve | Standard valve |
| Bottom drain outlet inner diameter | 20 mm |
| Bottom drain outlet outer diameter | 25 mm |
| Bottom drain shape | Straight with olive |
