IKA LR 5000.1 High Viscosity Reactors
SKU: 0020125443
IKA LR 5000.1 High Viscosity Reactors
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Product Details
Item number: 0020125443

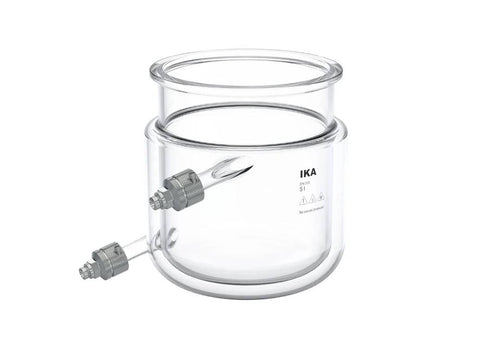

Double-walled glas reactor vessel for use with the LR-5.ST laboratory reactor.
Volume: 5.0 l
Material in contact with medium: Borosilicatglass 3.3
Including stainless steel metal adapter M 16x1 (Male) for connection of temperature hoses or quick connection adapters.
About IKA
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA LR 5000.1 High Viscosity Reactors
| Useable volume max. | 5000 ml |
| Working temperature | -50 - 230 °C |
| Pressure max. | atmospheric pressure |
| Attainable vacuum | 25 mbar |
| Fill level at nominal volume | 172 mm |
| Vessel inner diameter | 201 mm |
| Vessel outer diameter | 250 mm |
| Height (room dimension) | 287 mm |
| Width (room dimension) | 308 mm |
| Depth (room dimension) | 250 mm |
| Flange dimension | DN200 |
| Flange collar diameter | 215 mm |
| Bottom shape | Torispherical head |
| Tempering jacket filling capacity | 2 L |
| Tempering jacket inlet connection | DN 15 (tech-flange) |
| Tempering jacket inlet inner diameter | 15 mm |
| Vacuum application | yes |
| Tempering jacket outlet connection | DN 15 (tech-flange) |
| Tempering jacket oulet inner diameter | 15 mm |
| Reactor vessel material | borosilicate glass 3.3 DIN ISO 3585 |
