IKA ICC control Pro 20 c Temperature Control - MSE Supplies LLC

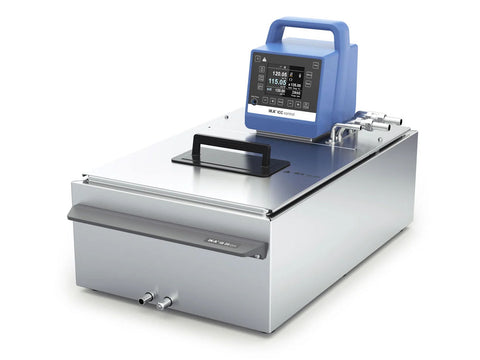

IKA ICC control Pro 20 c Temperature Control System

SKU: 0010000483

  • £3,20800
  • Save £6600



IKA ICC control Pro 20 c Temperature Control System

Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010000483

IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories.

Package includes

  • ICC control compact immersion circulator
  • IB 20 pro stainless steel bath (size L)
  • BL.ICC large bridge
  • CL.ICC large cover
  • PCS.ICC pump connection set
  • CC2 cooling coil
  • PT 100.30 temperature sensor

total: 354 x 641 x 388 mm
bath opening: 255 x 309 mm *
max. bath opening:  292 x 325 mm **
Immersion depth. 85 mm–125 mm

*Dimensions to set plate at the bottom of bath.
** Maximum bath opening dimensions at the upper edge of the bath

Max. temperature in the stainless steel bath (“pro” series): 150 °C

Technical data relates to the temperature control instrument included in the package

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA ICC control Pro 20 c Temperature Control System

Appliance type Compact immersion circulators
Class designation acc. DIN 12876 III
Identification according to DIN 12876 FL
Heat output 2000 W
Working temperature room temp. +10K @1000rpm - 150 °C
Operating temperature min. (with external cooling) -20 °C
Temperature display yes
Temperature control PT 100
Working temperature sensor PT 100
Safety temperature sensor PT1000
Working temperature display TFT
Safety temperature display TFT
Temperature stability DIN 12876 ±0.01 K
Connection for ext. temperature sensor PT 100
Display resolution 0.01 K
Display for operation with ext. sensor yes
Set temperature resolution ±0.1 K
Warning function optical yes
Warning function acoustic yes
Warning function excess temperature yes
Adjustable safety circuit 0 - 160 °C
Sub-level protection yes
Over-level protection yes
Pump type Pressure- / suction pump
Pump capacity adjustable yes
Pump pressure max. (0 liters discharge flow) 0.3 bar
Pressure pump (suction side) (0 liter flow) 0.2 bar
Flow rate max. (0 bar back pressure) 18 l/min
Bath depth min. 150 mm
Calibration option yes
Appliance fastener clamp
Technical data complies with the standard DIN 12876
Permissible ON time 100 %
Dimensions (W x H x D) 145 x 340 x 200 mm
Weight 16.33 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 21
RS 232 interface yes
USB interface yes
Voltage 230 V
Frequency 50/60 Hz
Power input 2100 W
