Item number: 0010002424

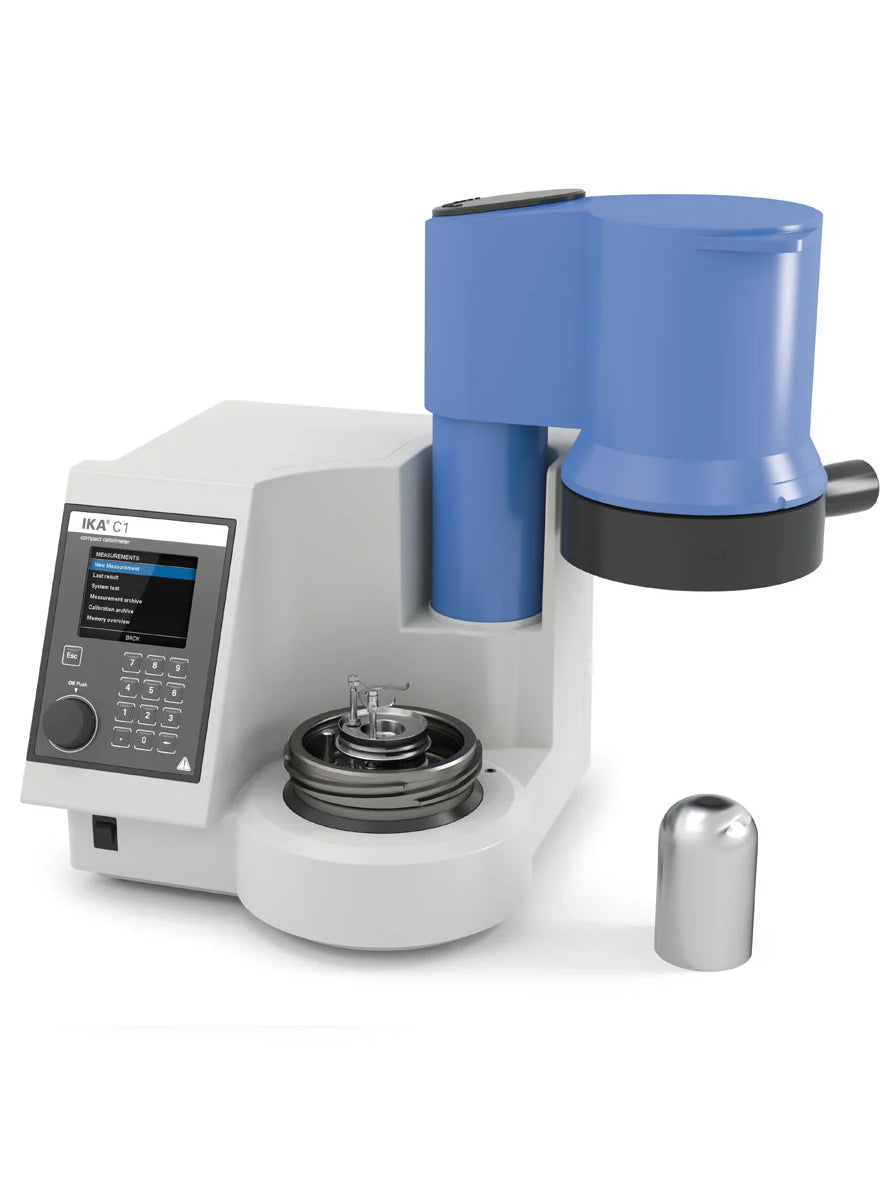

The C 1 static jacket oxygen bomb calorimeter provides a high degree of automation and has the smallest calorimeter footprint available. It operates according to DIN 51900 and ISO 1928. The temperature readings are analyzed according to the classical isoperibol method of Regnault Pfaundler.
With the package 3/12 including C 1.20 water heater it is possible to operate the C 1 with drinking-quality tap water in a temperature range of 5 °C to 25 °C (water temperature < 21°C: measuring mode 22°C/ water temperature > 21 °C: measuring mode 30°C). A chiller is no longer required. The C 1.20 heater serves to maintain the correct temperature of the tap water, which must be connected to the heater at a maximum pressure of 6 bar/0.6 MPa. C 25 pressure regulating gauge is recommended as an accessory if the pressure is higher or cannot be maintained.
The scope of delivery includes all parts necessary to set up the unit. Additionally it includes wear parts and consumables for the first approximately 500 experiments including 25 calibrations. The catalytic activated, halogen resistant combustion chamber C 1.12 is specifically designed for the combustion of samples that contain halogens and sulfur ( > 3 % ). It is equipped with the C 5010.5 large crucible holder and C 6 large quartz crucible.
Scope of delivery
- C 1 S000
- C 1.12 Combustion chamber, halogen resistant
- C 1.20 Heater
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA C 1 Package 3/12 Calorimeters
|Measuring range max.||40000 J|
|Measuring mode static jacket 22°C||yes|
|Measuring mode static jacket 30°C||yes|
|Measurements/h static jacket||4|
|Reproducibility static jacke (1g benzoic acid NBS39i)||0.15 %RSD|
|Working temperature||20 - 30 °C|
|Temperature measurement resolution||0.0001 K|
|Cooling medium temperature||18 - 29 °C|
|Cooling medium permissible operating pressure||1.5 bar|
|Cooling medium||tap water|
|Type of cooling||flow|
|Flow rate||50 - 60 l/h|
|Rec. flow rate at 18°C||55 l/h|
|Oxygen operating pressure max.||40 bar|
|Decomposition vessel integrated||yes|
|Decomposition vessel, halogen resistant||yes|
|Analysis according to DIN 51900||yes|
|Analysis according to ISO 1928||yes|
|Dimensions (W x H x D)||290 x 280 x 300 mm|
|Permissible ambient temperature||5 - 40 °C|
|Permissible relative humidity||80 %|
|Protection class according to DIN EN 60529||IP 20|
|RS 232 interface||yes|
|Voltage||100 - 240 V|
|Power input||120 W|
