IKA C 1 Package 1/10 Calorimeters - MSE Supplies LLC

IKA C 1 Package 1/10 Calorimeters

  • £18,88200
  • Save £38500


Buy IKA products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of IKA.

Product Details

Item number: 0010002421

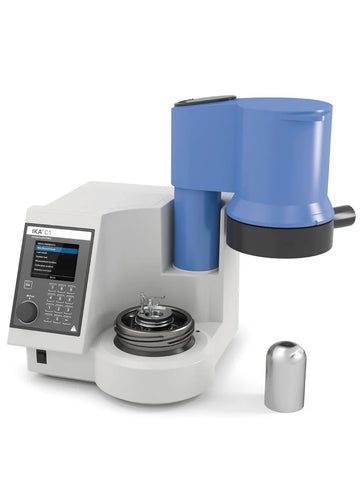

The C 1 static jacket oxygen bomb calorimeter represents a giant leap forward in calorimeter technology by featuring a high degree of automation in a compact design; the smallest calorimeter footprint available.
It operates according to DIN 51900 and ISO 1928. The temperature readings are analyzed according to the classical isoperibol method of Regnault Pfaundler.
The traditionally known, comparably heavy screw threaded decomposition vessel, has been replaced by a light and easily attachable combustion chamber.
Due to the variety of different interfaces (PC, balance, printer) this unit is easily adaptable depending on the customer’s specific application needs. Further adaption to data management and LIMS is possible with our calorimeter software C 6040 Calwin (Accessory).

The C 1 Package 1/10 contains the C 1 Calorimeter (inclusive standard combustion chamber C 1.10) and the cooling water supply unit RC 2 basic.

The unit contains all parts necessary to set up the unit. We also supply wear parts and consumables for the first approximately 500 experiments including 25 calibrations. The C 1.10 combsution chamber is equipped with the C 5010.5 large crucible holder and C 6 large quartz crucible

About IKA

Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.

Technical Data of IKA C 1 Package 1/10 Calorimeters

Measuring range max. 40000 J
Measuring mode static jacket 22°C yes
Measuring mode static jacket 30°C yes
Measurements/h 4
Reproducibility static jacke (1g benzoic acid NBS39i) 0.15 %RSD
Working temperature 20 - 30 °C
Temperature measurement resolution 0.0001 K
Cooling medium temperature 18 - 29 °C
Cooling medium permissible operating pressure 1.5 bar
Cooling medium tap water
Type of cooling flow
Flow rate 50 - 60 l/h
Rec. flow rate at 18°C 55 l/h
Oxygen operating pressure max. 40 bar
Interface scale RS232
Interface printer RS232
Interface PC RS232
Oxygen filling yes
Degasification yes
Decomposition vessel integrated yes
Decomposition vessel, halogen resistant yes
Works according to DIN 51900 yes
Works according to DIN CEN/TS 16023 yes
Works according to DIN SPEC 19524 yes
Works according to ISO 1928 yes
Dimensions (W x H x D) 290 x 280 x 300 mm
Weight 55.84 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
USB interface yes
Voltage 100 - 240 V
Frequency 50/60 Hz
Power input 120 W
