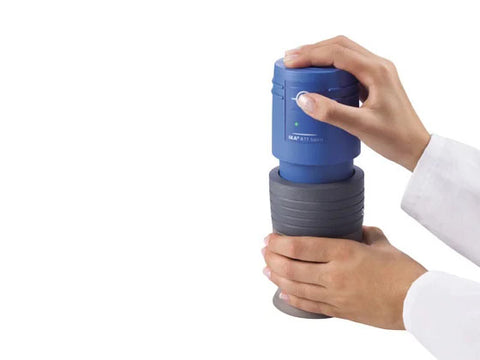

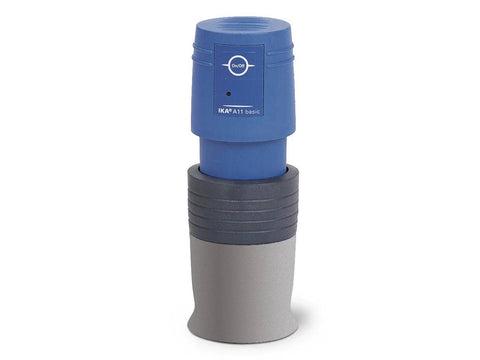

IKA A 11 Basic Analytical Mills (28000 rpm)
Buy IKA products from MSE Supplies at the best value.
MSE Supplies is an authorized distributor of IKA.
Item number: 0002900001
Batch mill for 2 different grinding procedures:
Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery).
Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).
- Moist and gluey materials can be pulverized by adding water
- Grinding chamber made of Tefcel (PTFE, glass fiber-reinforced) with stainless steel inlet (1.4571), useful volume 80 ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber
- Optionally, a 250 ml grinding chamber is available
Scope of delivery
- A 11 basic Analytical mill
- A 11.1 Spare beater
Founded in 1910 as a supplier for pharmacies and hospitals, the company left bombed-out Cologne for Staufen im Breisgau in 1942. There it quickly became the world's leading company for laboratory technology as well as dispersing, stirring and kneading machines.
Technical Data of IKA A 11 Basic Analytical Mills (28000 rpm)
|Motor rating input||160 W|
|Motor rating output||100 W|
|Speed max.||28000 rpm|
|Circumferential speed max.||53 m/s|
|Useable volume max.||80 ml|
|Feed hardness max.||6 Mohs|
|Feed grain size max.||10 mm|
|Material beater/cutter||stainless steel 1.4034|
|Material milling chamber||stainless steel 1.4571|
|Power-ON time||1 min|
|Power-OFF time||10 min|
|Mill feed can be cooled in milling chamber with dry ice||yes|
|Mill feed can be cooled in milling chamber with liquid nitrogen||yes|
|Dimensions (W x H x D)||85 x 240 x 85 mm|
|Permissible ambient temperature||5 - 40 °C|
|Permissible relative humidity||80 %|
|Protection class according to DIN EN 60529||IP 43|
|Voltage||100 - 115 V|
|Power input||160 W|
