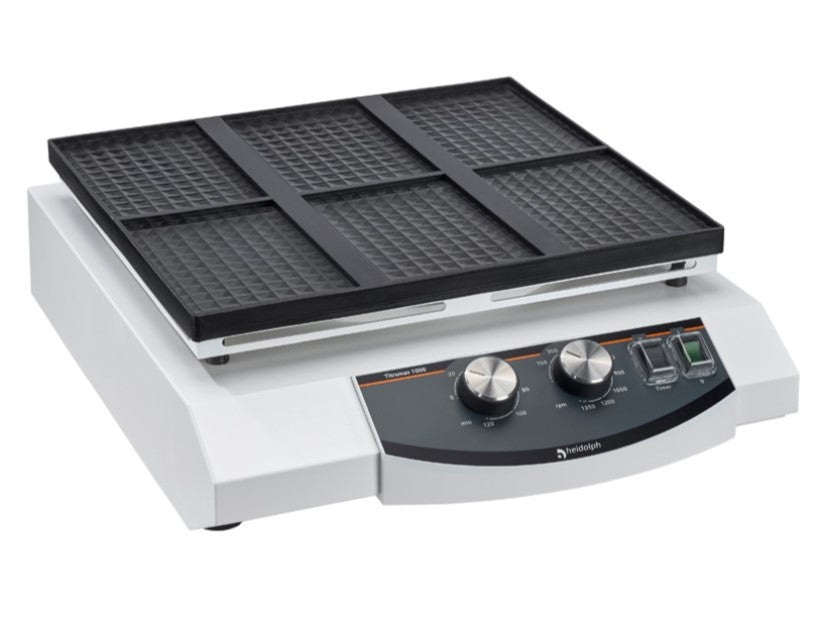

Heidolph Platform Shaker - Titramax 1000
SKU: 036130100
Heidolph Platform Shaker - Titramax 1000
The one with temperature-control
The largest model of the Titramax series contains all the features of the Titramax 100: a shaking orbit of 1.5 mm, speeds of up to 1,350 rpm, and a timer.
With a storage capacity of up to six multi-well plates, a higher number of samples can be processed. The option to integrate the Titramax 1000 into the modular incubation system also allows temperature-controlled processes to be carried out without problems.
With this model, easy loading and removal of the plates can be carried out comfortably due to the recess and the spacings in the rubber mat.
Product Parameters
| Dimensions (W × H × D) | 320 × 128 × 375 mm |
| Weight | 8 kg |
| Maximum permissible load | 5 kg |
| Drive | Shaded pole motor |
| Speed range | 150 – 1,350 rpm |
| Protection class (EN 60529) | IP30 |
| Acoustic pressure | < 50 dB (A) |
| Rated voltage | NA |
| Protection class | I |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Power input | 25 W |
| Operating temperature | 5 °C – 31 °C up to 80 % rel. humidity | 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly) |
| Installation altitude | up to 2,000 m asl |
| Overheat protection | self-resetting |
| Speed control | Analog |
| Usable area | 290 × 258 mm |
| Movement | circular vibrating |
| Orbit | 1.5 mm |
| Fuse | M 1,25 A (230 V) or T 2,0 A (115 V) |
| Permissible mains voltage fluctuations | ±10 % |
| Bottle dimensions | n.a. |
