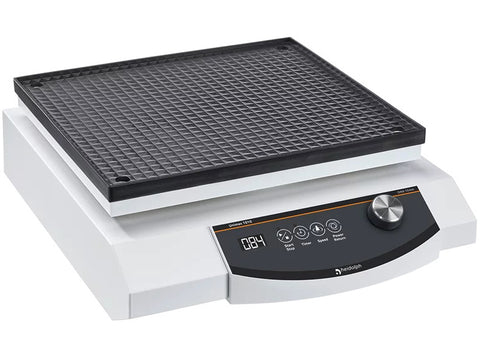

Heidolph Platform Shaker- Orbital Unimax 1010
SKU: 036130180
Heidolph Platform Shaker- Orbital Unimax 1010
This shaker can be integrated into the modular incubation system, and it is therefore ideal for all temperature-controlled shaking tasks. By means of the integrated RS 232 interface and in conjunction with the software Hei-PROCESS, processes can be realized semi-automatically. In addition, it is possible to operate several shakers of this size in one climate chamber.
With a speed of 30-500 rpm and an orbit of 10 mm, samples are optimally kept in motion. Time-dependent applications can be performed without any problems by using a timer (max. 99 h 99 min 99 S). In addition, the automatic restart (e.g. after a power failures) can be regulated by means of a button.
Product Parameters
| Overheat protection | Self-resetting |
| Permissible ambient conditions | - |
| Weight | kg |
| Protection class (EN 60529) | IP 40 |
| Timer | Yes (max. 99 h 99 min 99 s) |
| Rotation speed range | 30 - 500 rpm |
| Power input | 50 |
| Dimensions (w/d/h) | 320 x 125 x 375 mm |
| Max. Load | 5 kg |
| Operating Mode | Timer function / continuous operation |
| Rotation speed setting | - |
| Orbit / Stroke | 10 mm |
| Platform size | - |
| Accessories included | - |
| Angle | - |
| Motion | Orbital |
| Ambient temperature range (operation) | 5 °C – 31 °C up to 80 % rel. humidity; 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly) |
| Ambient temperature range (storage) | 5 °C – 31 °C up to 80 % rel. humidity; 32 °C – 40 °C up to 50 % rel. humidity (decreasing linearly) |
| Interfaces | RS 232 |
| Usable area | 290 x 258 mm |
| Installation altitude | 2,000 m above sea level |
