Eyela Vacuum Accessories for ROTOVAPS

SKU: 210539

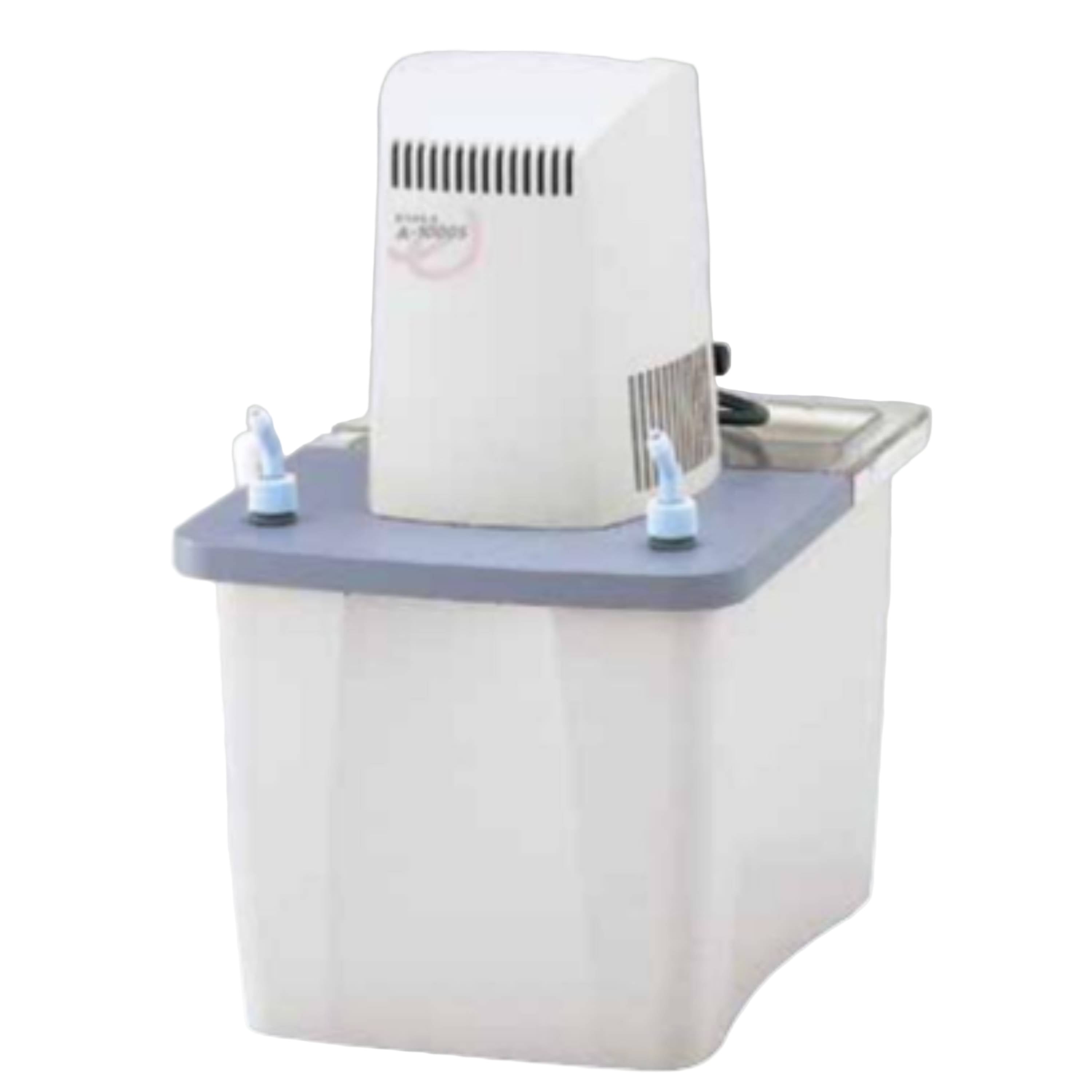

Excellent operability and stable exhaust capacity

Simply turn on the switch to easily reduce pressure even in places without a water faucet or where water pressure is low. The pump circulates water from the tank to the aspirator at a constant pressure and high speed, maintaining a steady level of depressurization.
The transparent cover allows you to check the condition inside the tank. The tank is easy to clean and can be easily removed.
The system uses a pump to circulate the water in the tank, so it complies with wastewater regulations.
Pump body is made of glass-filled nylon; water tank and cover are PP resin. The gasket is made of fluorine rubber for excellent chemical resistance and durability.
Teflon® aspirator AT-1B (option) with excellent chemical resistance can also be attached.

Model	A-1000S
Cat. No.	210539
Exhaust method	Pressurized circulation with water jet pump
Max. exhaust speed	16/19 L/min 50/60Hz (Water temperature 6°C)
Motor	Induction motor, output 150W
Aspirator	Attached 2 pcs.
Tank size + volume	246W × 341D × 211H (mm) . 10L
Tank material	PP resin
Suction port diameter	10mm OD (2 ports)
Water supply nozzle	Diameter 13mm
Overflow nozzle	Diameter 17.5mm
Ambient temperature range	5 to 35°C
Outer dimensions (mm) . weight	256(260.5)W × 351D × 206(H) . 6.7kg
Power input	2.6A, 300VA
Supply voltage	115VAC 60Hz

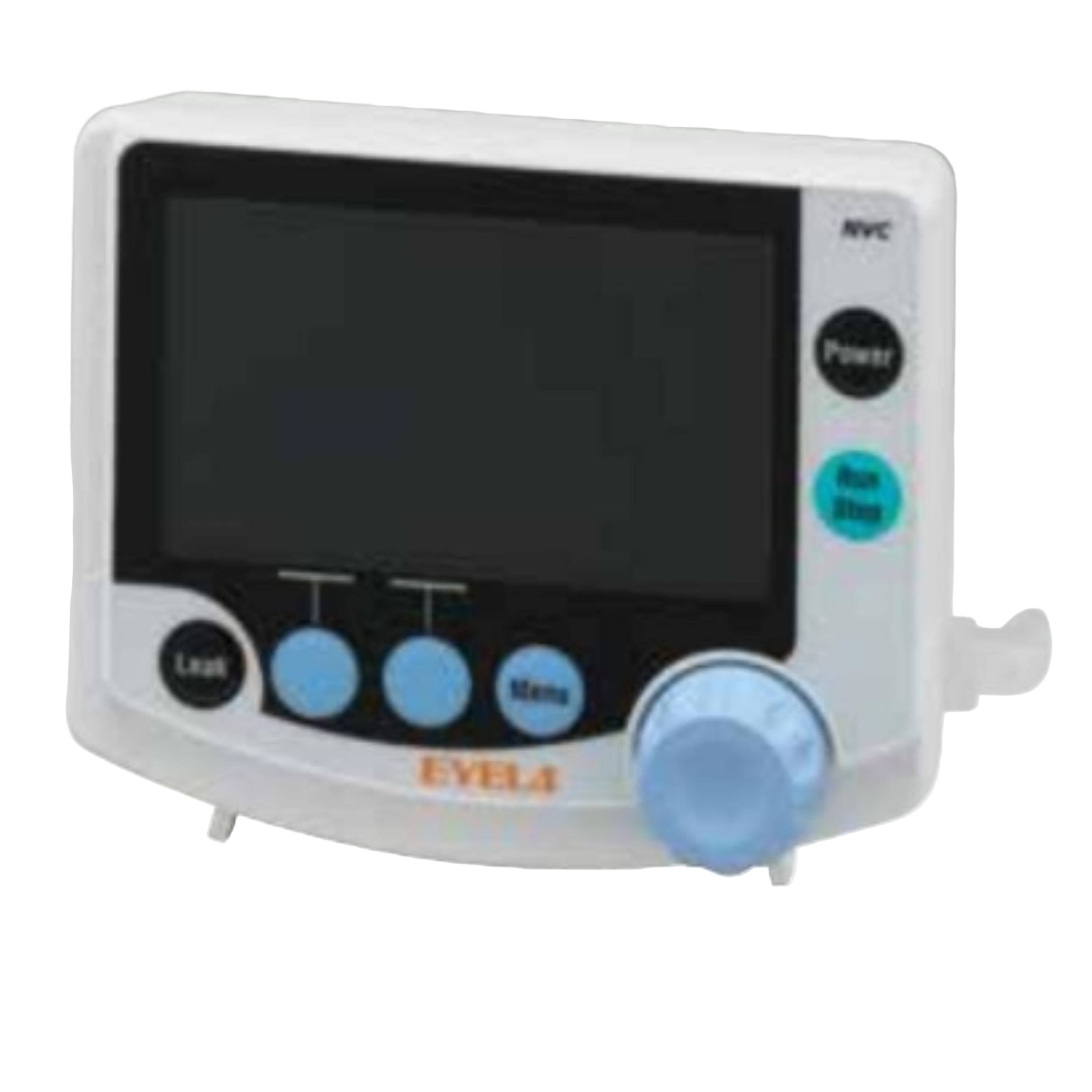

High-visibility color LCD and enhanced operability

It is equipped with a 4.3-inch color TFT LCD.
The operating status of each peripheral device of rotary evaporator N-1300・1210B, N-2110・R・U can be displayed and settings can be changed.
The pressure setting can be adjusted at any time, allowing for pressure changes while monitoring the concentration status during operation. (Manual control)
Programs for typical solvents, including those subject to environmental regulations, are preregistered. If you save the solvents you use most frequently, you can display only the selected solvents. (Program control)
It is equipped with a step program function that can be used as a pressure controller. A combination of 99 steps of descending/ascending ramp, constant value control, depressurization, and vacuum release is possible per program. Up to 5 programs can be saved. (Step Program control)

Model	NVC-3000
Cat. No.	269378
Vacuum setting range	0 to 760mmHg (Torr), 0 to 1013hPa (mbar)
Vacuum measuring range	0 to 800mmHg (Torr), 0 to 1066hPa (mbar)
Vapor temperature measuring range	0 to 150°C (when optional vapor temperature sensor is connected)
Setting. control method	Dial encoder, key input · solenoid valve ON-OFF or variable output voltage
Pressure unit setting	mmHg, Torr, hPa, kPa, mbar
Control program	Constant value · Solvent program · Auto · Step program
Control items	Pressure · Temperature (water / bath vapor) · Auto jack · Rotation ON-OFF · Voltage output · Power ON-OFF
Display	Color TFT LCD display (4.3 inches)
Display items	Operating mode, Operating status, Measured pressure, Set pressure, Vapor temperature (when optional sensor is connected), Operating time, Bath temperature, Cooling water temperature, Rotary evaporator rotation speed (when communication cord is connected)
External input, output	Cooling water circulation system · bath · rotary evaporator communication terminal, NVC-NVC communication terminal, Inverter pump communication terminal, Pump control box communication terminal, Vapor temperature sensor terminal, Micro USB (for PC communication)
Ambient temperature range	5 to 35°C
Outer dimensions (mm)・weight	139(150)W × 54(75)D × 115H · Approx. 670g
Power input・supply voltage	0.1A, 10VA · 100 to 240VAC, 50/60Hz
Power supply cord	Can be changed with AC adapter

NVC-NVP Connection cord (For connecting NVP-1000V, 2000V, 2100V to NVC-3000)

Model	NNV-2M
Cat. No.	269420

Vacuum controller mounting plate (for NVP-V pumps)

Model	NVC3000-NVP-V
Cat. No.	270100
