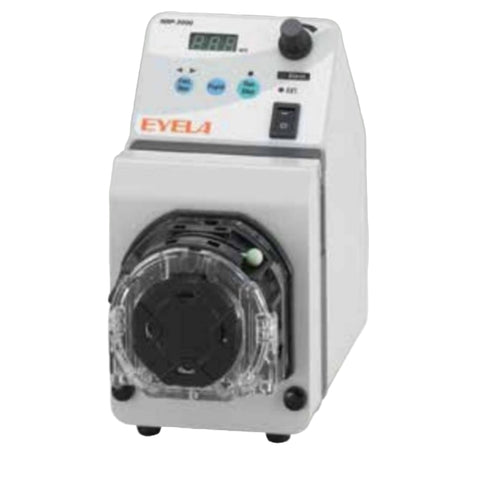

Eyela Peristaltic Pumps (Roller Pumps)

SKU: 265819

Accommodates a wide range of flow rates and various tubing sizes

Three different sizes of tubing can be set without having to replace a tubing holder for each size.
The tubing case can be fixed at 90° intervals. This allows both the suction and discharge ends to be aligned in the same direction, preventing the tubing from being twisted or bent, and enabling proper installation at the optimal length.
The rapid switch operates the pump at maximum flow rate; the tubing path can be filled with liquid in a short time, right up to the point before the delivery destination.
The tubing case of NRP-3000P is made of PPS resin, which has excellent chemical resistance to acids, alkalis, and organic solvents.

Model	NRP-3000
Cat. No.	265819 (115V)
Flow rate range	0.7 to 64L/h (4.76 ID x 7.94mm OD tubing) 1.2 to 104L/h (6.36 ID x 9.53mm OD tubing) 1.5 to 138L/h (7.94 ID x 11.11mm OD tubing)
Flow rate accuracy	Within ±4% (repeatability within ±2%)
Max. discharge pressure	137.3kPa (1.4kg/cm²)
Fluid viscosity . temperature	Max. 2Pa·s (2000cP) -1 to 100°C (no freezing)
Rotation speed	Continuously variable 4 to 450rpm
Rotation control	Feedback control
Rotation setting . display	Multi-turn speed control knob + digital display
Pumping direction	Forward/reverse switchable (LED display), rapid function
Other functions	One-touch tube replacement
External input . output	External signal input terminal (0 to 5VDC), alarm output terminal (a-contact output),sensor signal input terminal (leak sensor)
Motor	Brushless DC motor, output 88W
Tubing case	First-stage (polycarbonate) 1 pc
Number of tubes	1 pc
Usable tubing material	Silicone, PharMed®, Tygon®, Versilon® (Fluran®)
Usable tubing diameter	4.76 ID × 7.94mm OD, 6.35 ID × 9.53mm OD, 7.94 ID × 11.11mm OD
Ambient temperature range	5 to 35°C (no condensation)
Outer dimensions (mm) . weight	121W × 276(289)D × 226(230)H . 5.7kg
Power input + supply voltage*1	1.6A, 160VA . 100VAC 50/60Hz
