Eyela Chillers for ROTOVAPS
SKU: 268459
Eyela Chillers for ROTOVAPS

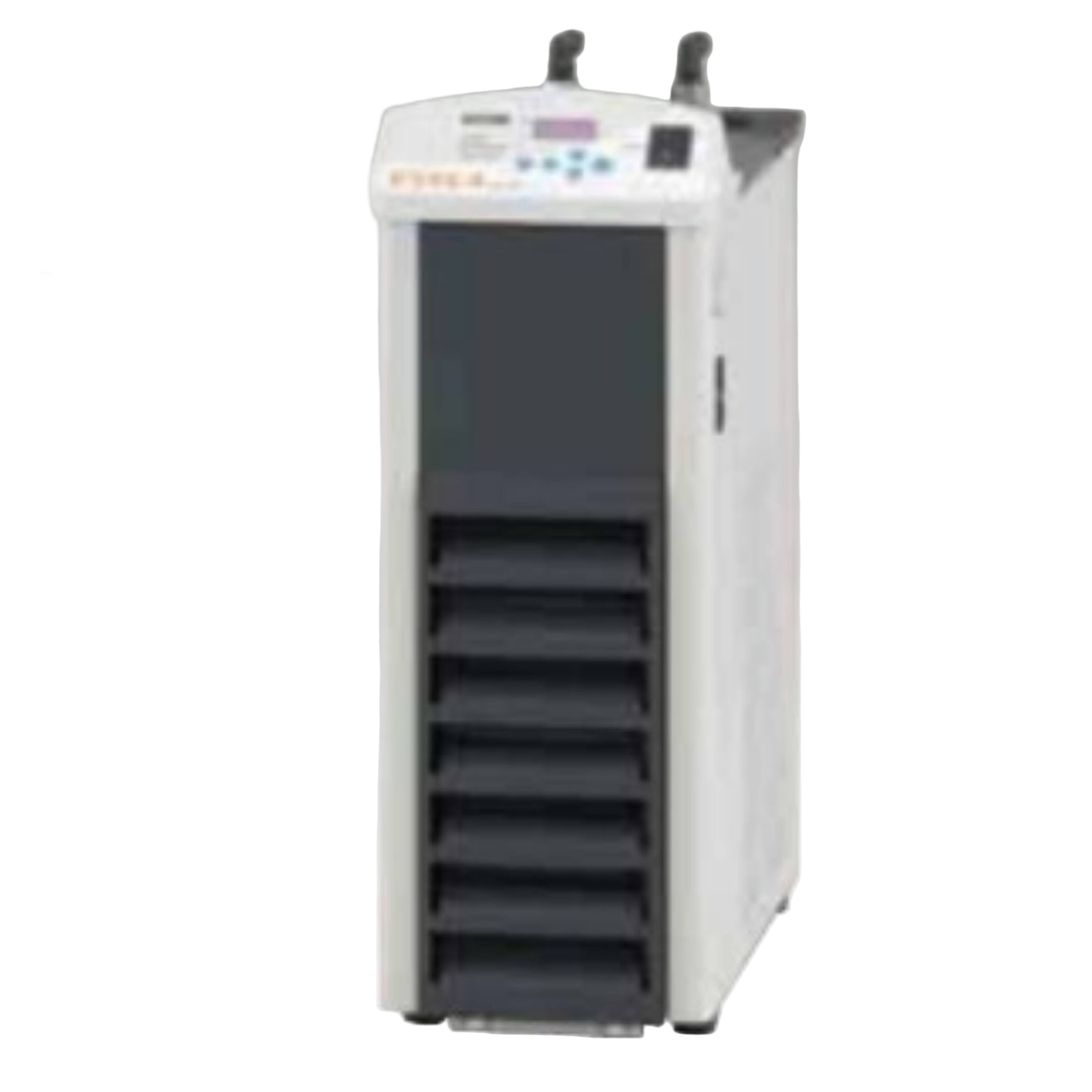

Downsizing the entire evaporator system
Space-saving with a slim profile
- With a temperature setting range of -20 to 30°C, it can be used for various applications. Its compact size, with a footprint of 205mm (W) × 405mm (D), ensures not occupying much space, whether installed in a fume hood, on, under, or beside a lab bench.
- For aqueous samples, an aspirator and evaporator (Models N-1300 • 1210B series: sample flask up to 1L) can be connected. For solvent samples, a solvent recovery unit and evaporator (Models N-1300 • 1210B series: sample flask up to 500mL) can be connected to each unit.
- By connecting the N-1210B series rotary evaporator with a dedicated communication cord (option), it is possible to synchronize operations (start/stop) with the evaporator without using the NVC-3000 vacuum controller.
Specifications
|
Model |
CCA-1112A |
|
Cat. No. |
268459 |
|
Circulation method |
Closed circulation system |
|
Temperature control range |
-20 to -1°C |
|
Temperature control accuracy |
±1°C |
|
Cooling capacity (liquid temperature) at 10 °C |
450 W (approx. 385 kcal/h) |
|
External circulation capacity |
Max. flow rate 9 L/min, Max. lifting height 4.2 m ± 0.5 |
|
Temperature control |
Refrigerator ON–OFF control |
|
Temperature setting & display |
Membrane keypad input . digital display (resolution 1°C) |
|
Safety features |
Earth leakage . Overcurrent circuit breaker . Refrigerator overload relay retention circuit . Refrigerator protection timer . Temperature controller self-diagnosis function . Circulation pump impedance protect |
|
Refrigerator . refrigerant |
Air-cooled . output 450 W . R-404A |
|
Cooling coil |
Stainless steel |
|
Circulation nozzle diameter |
6.5 ID × 10 mm OD |
|
Bath materia l. dimensions (mm) . capacity |
130 W × 230 D × 115 H |
|
Ambient temperature range |
5 to 35°C |
|
Outer dimensions (mm). weight |
206 W × 405 D × 547 H • approx. 28 kg |
|
Power input . supply voltage |
115 VAC 60 Hz |

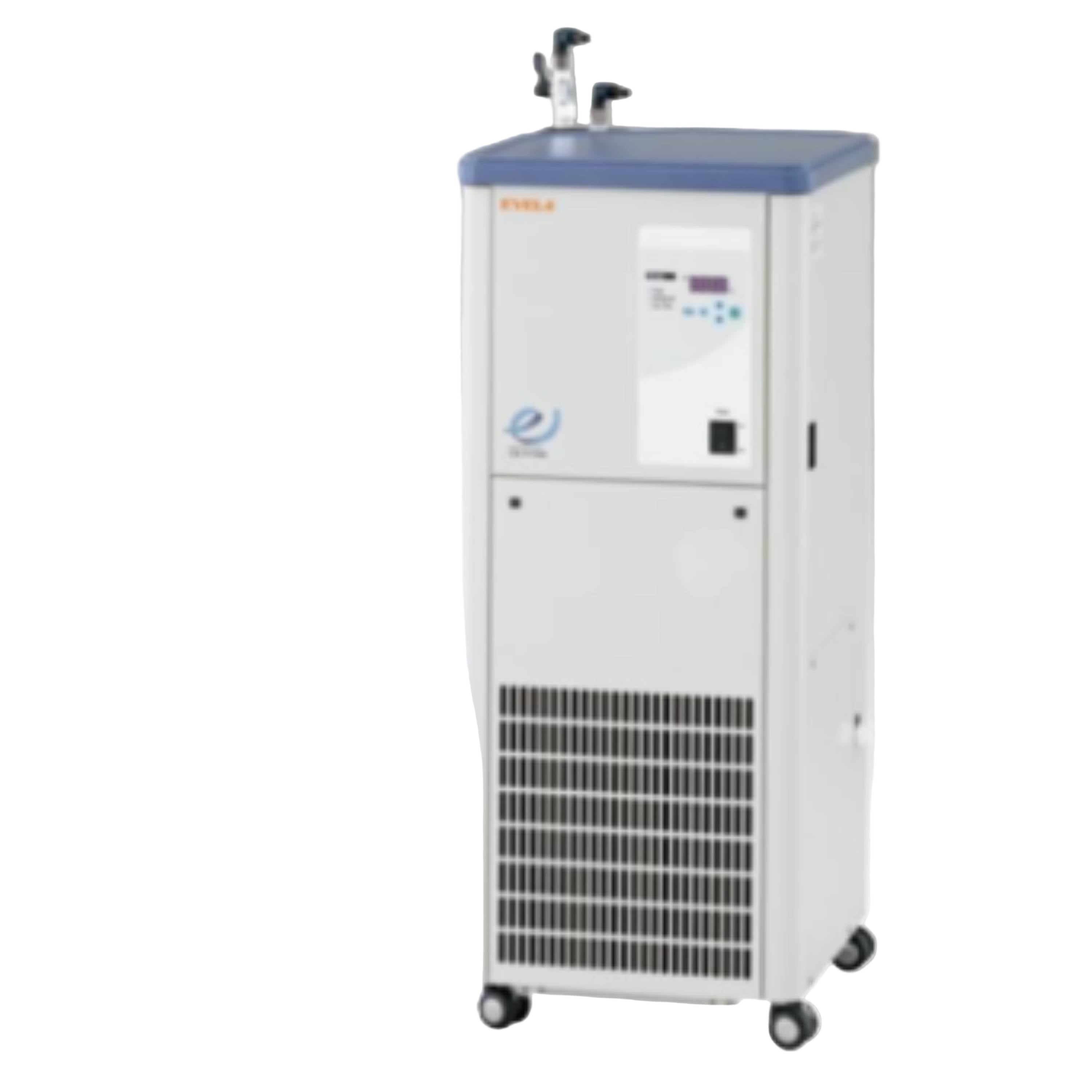

With a cooling capacity of 1050W, the ultimate standard model
Standard chiller with outstanding cooling capacity
- The wide temperature setting range of -20 to 30°C makes it suitable for a variety of applications. The cooling capacity is enhanced to 1050W (approx. 903kcal/h) at a liquid temperature of 10°C (at room temperature of 20°C).
- Connecting to the vacuum controller allows synchronization with peripheral equipment in the rotary evaporator system. When the system is stopped, the circulation pump halts and enters standby mode. During standby, the unit maintains the temperature in the bath and periodically circulates the fluid through the piping, ensuring that the system is ready for immediate use upon restarting.
- The optional one-touch cooling hose and circulation nozzle can be securely attached and detached with a single touch, eliminating troublesome banding and preventing leaks of circulating water. (Only available for Cat. No. 268447.)
- The direction of the circulation nozzle can be freely adjusted 360°. This smooth adjustment helps reduce strain on the tubing.
- For aqueous samples, it can be connected to two aspirators and two evaporators (N-1300 series • N-1210B series, with 1L sample flasks).
Specifications
|
Item |
CA-1116A-1 |
|
Cat. No. |
268489 |
|
Circulation method |
Closed circulation system |
|
Temperature control range |
-20 to 30℃ |
|
Temperature control accuracy |
± 2℃ |
|
Cooling capacity (liquid temp.) |
at 10℃: 1050W (at RT 20℃) |
|
External circulation capacity |
Max. flow rate 14 L/min, Max. lifting height 13m |
|
Temperature control |
Refrigerator ON-OFF control |
|
Temperature setting / display |
Membrane keypad input, LED digital display (resolution 1℃) |
|
Safety features |
Earth leakage, Overcurrent circuit breaker, Overload relay retention circuit, Refrigerator protection timer, Temperature controller self-diagnosis function, Circulation pump thermal protector |
|
External input / output |
Communication cable connector for vacuum controller → rotary evaporator (N-1210B) |
|
Refrigerator / refrigerant |
Output 700W, R410A |
|
Cooling coil |
Stainless steel |
|
Circulation nozzle diameter |
10.5mm OD, Bore R3/8 |
|
Built-in outlet |
115VAC max. 4A |
|
Bath material / dimensions / capacity |
Stainless steel . 280D × 270H . 16.5L (liquid volume 14L) |
|
Ambient temperature range |
5 to 35℃ |
|
Outer dimensions (mm) . weight |
354W × 384D × 851H, approx. 44kg |
|
Power input . supply voltage |
115VAC 60Hz |
- The cooling capacity and the external circulation capacity are within ±10% of the indicated value.
- The attainable cooling temperature is -10℃ when the room temperature is 35℃.
- Pure water cannot be used.
