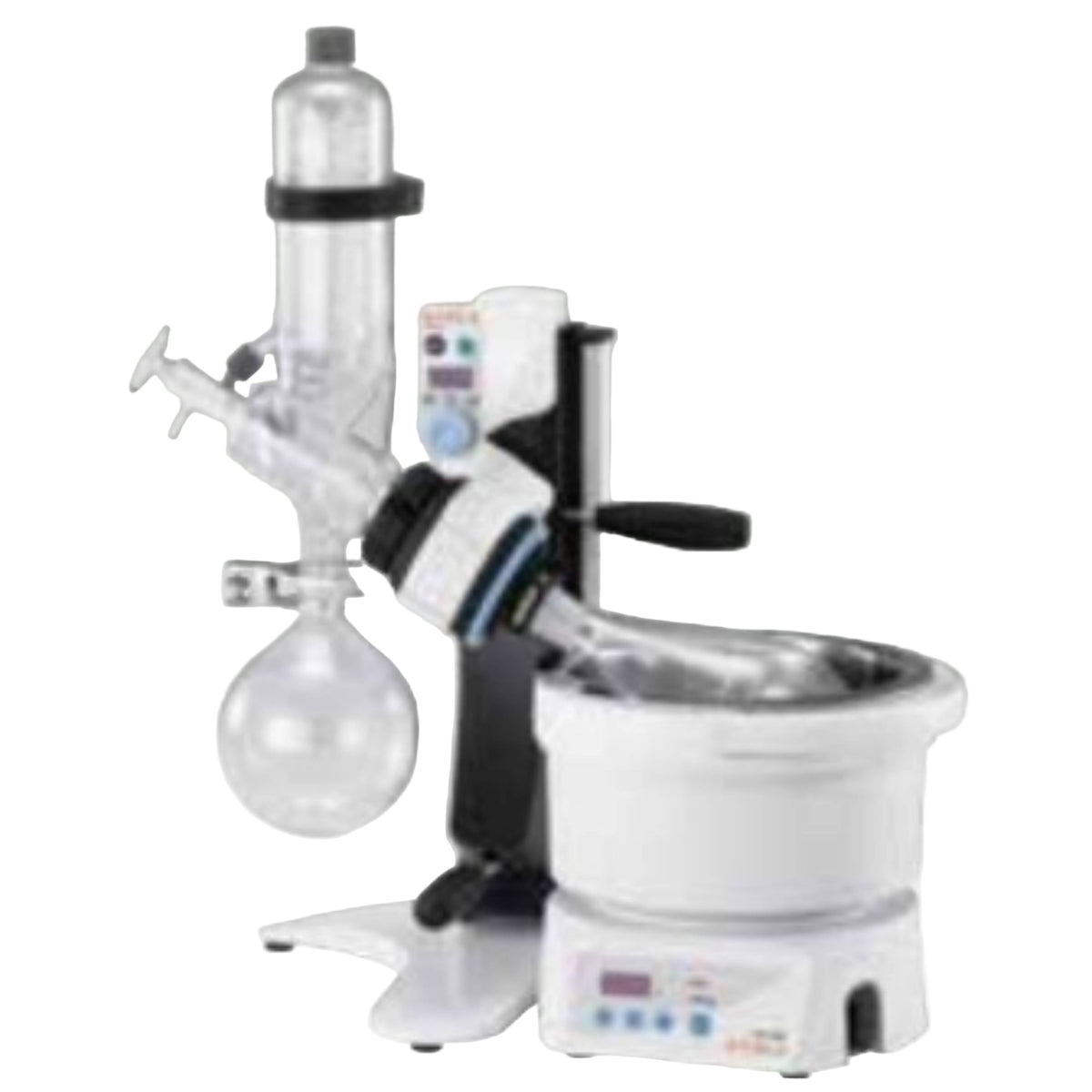

Eyela Bench Top Rotary Evaporator Model N-1300
SKU: 266399
Eyela Bench Top Rotary Evaporator Model N-1300

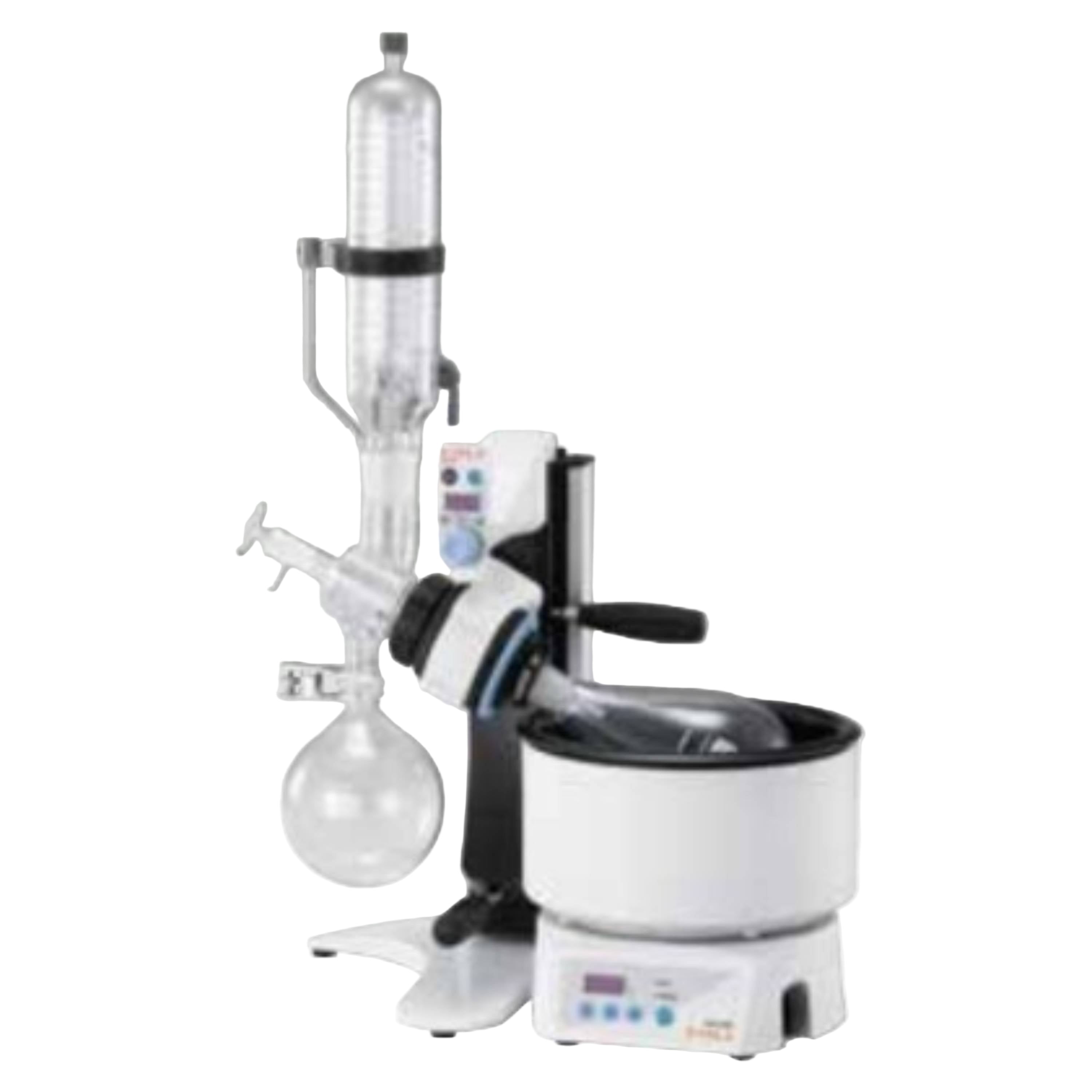

Type V Vertical double spiral condenser features a space-saving and highly efficient design
Compatible with sample flasks ranging from small to large volumes
- Due to the wide cooling surface area of the vertical condenser (0.146m²), excellent recovery rates can be achieved from small to large volume flasks.
- When changed to the optional thick-walled rotary joint (vapor duct), sample flasks up to 2L can be used.
- The position of the glass set can be freely arranged on either left or right side according to the installation location and dominant hand, allowing for effective use of space even when two evaporators are installed.
- The condenser position is offset so there is no risk of condensate from the condenser flowing back into the sample flask via the capillary tube or rotary joint.
- The direction of flask rotation and automatic inversion can be set on the control panel.
Specifications
|
Model |
N-1300V-W |
N-1300V-WB |
|
Bath type |
With water bath |
With water + oil bath |
|
Rotation speed range |
10 to 310 rpm |
|
|
Evaporation capacity |
Max. 23 mL/min (water evaporation) |
|
|
Bath temperature control range · accuracy |
RT + 5 to 90°C · ±1°C |
RT + 5 to 180°C · ±1.5°C (oil: ±3°C) |
|
Rotation setting · display |
Encoder-based digital setting · digital display |
|
|
Jack function |
Manual balance type (180 mm, stepless adjustment) |
|
|
Safety features |
Fuse, Fixed temperature overheat protector, Insulated protective bath cover |
|
|
Rotary motor |
Brushless DC motor |
|
|
Type V condenser set |
Vertical double spiral condenser (cooling area 0.146 m²), Adapter, Rotary joint (18 ID × length 178 mm, $29/38), 1 L sample flask (pear shaped) ($29/38), 1 L receiving flask (round shaped) (ball joint S35/20) |
|
|
Vacuum seal |
Teflon® + Teflon® + Viton® double seal (Genuine parts: Vacuum seal × 2 pcs, Cat. No. 142610) |
|
|
Bath inner dimensions (mm) |
220 ID × 120 H |
240 ID × 120 H |
|
Bath material · heater · capacity |
Stainless steel · 1050 W · approx. 4.3 L |
Aluminum (Teflon® coating) · 1100 W · approx. 5.4 L |
|
Connection port diameter |
Cooling water nozzle · suction nozzle 10 mm OD |
|
|
Ambient temperature range |
5 to 35°C |
|
|
Outer dimensions (highest position) (mm) |
543 W × 352 D × 823 (1003) H |
|
|
Weight |
12.8 kg |
13.4 kg |
|
Power input · supply voltage |
115 VAC 50/60 Hz |
115 VAC 50/60 Hz |

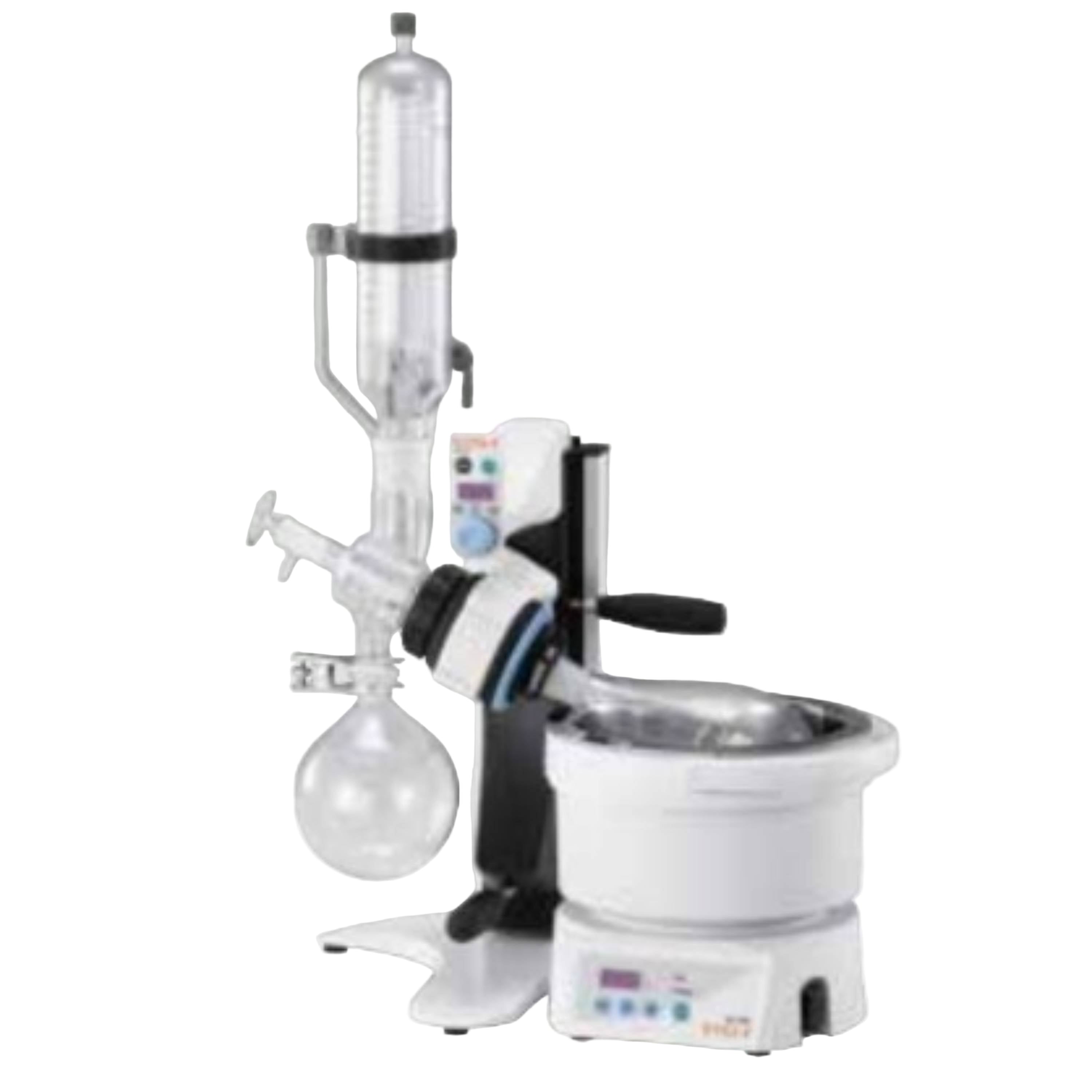

Type E Vertical double spiral condenser features a compact design that can be installed within a fume hood
Compact design with dimensions of 342mm depth × 645mm height
- Considering use inside a fume hood, the height has been kept to 645mm. The compact design allows multiple units to be installed inside the fume hood.
- The rotation direction and automatic inversion of the sample flask can be set by the control panel.
- The glass set can be installed either left or right side of N-1300 main unit. The position of the glass set can be freely arranged according to the installation location and dominant hand.
- The position of condenser is offset from capillary so there is no risk of condensate from the condenser flowing back into the sample flask via the capillary or rotary joint (vapor duct).
- The condenser has a cooling capacity of up to 1L sample flask.
Specifications
|
Model |
N-1300E-W |
N-1300E-WB |
|
Bath type |
With water bath |
With water + oil bath |
|
Rotation speed range |
10 to 310 rpm |
|
|
Evaporation capacity |
Max. 23 mL/min (water evaporation) |
|
|
Bath temperature control range & accuracy |
RT + 5 to 90°C · ±1°C |
RT + 5 to 180°C · ±1.5°C (oil: ±3°C) |
|
Rotation setting / display |
Encoder-based digital setting · digital display |
|
|
Jack function |
Manual balance type (180 mm, stepless adjustment) |
|
|
Rotary motor |
Brushless DC motor |
|
|
Type E condenser set |
Vertical double spiral condenser (0.117 m²), rotary joint (18 ID × 178 mm, $ 29/38), 1 L sample flask (pear shaped, $ 29/38), 1 L receiving flask (round shaped, S35/20) |
|
|
Vacuum seal |
Teflon® + Teflon® & Viton® double seal (Genuine parts: Vacuum seal × 2, Cat. No. 142610) |
|
|
Bath inner dimensions (mm) |
220 ID × 120 H |
240 ID × 120 H |
|
Bath material / heater / capacity |
Stainless steel · 105 kW · approx. 4.3 L |
Aluminum (Teflon® coating) · 1 kW · approx. 5.4 L |
|
Connection port diameter |
Cooling water nozzle · suction nozzle 10 mm OD |
|
|
Ambient temperature range |
5 to 35°C |
|
|
Outer dimensions (highest position) (mm) · Weight |
578 W × 352 D × 645 (825) H · 12.7 kg |
565 W × 352 D × 645 (825) H · 13.3 kg |
|
Power input · supply voltage |
115 VAC 50/60 Hz |
115 VAC 50/60 Hz |

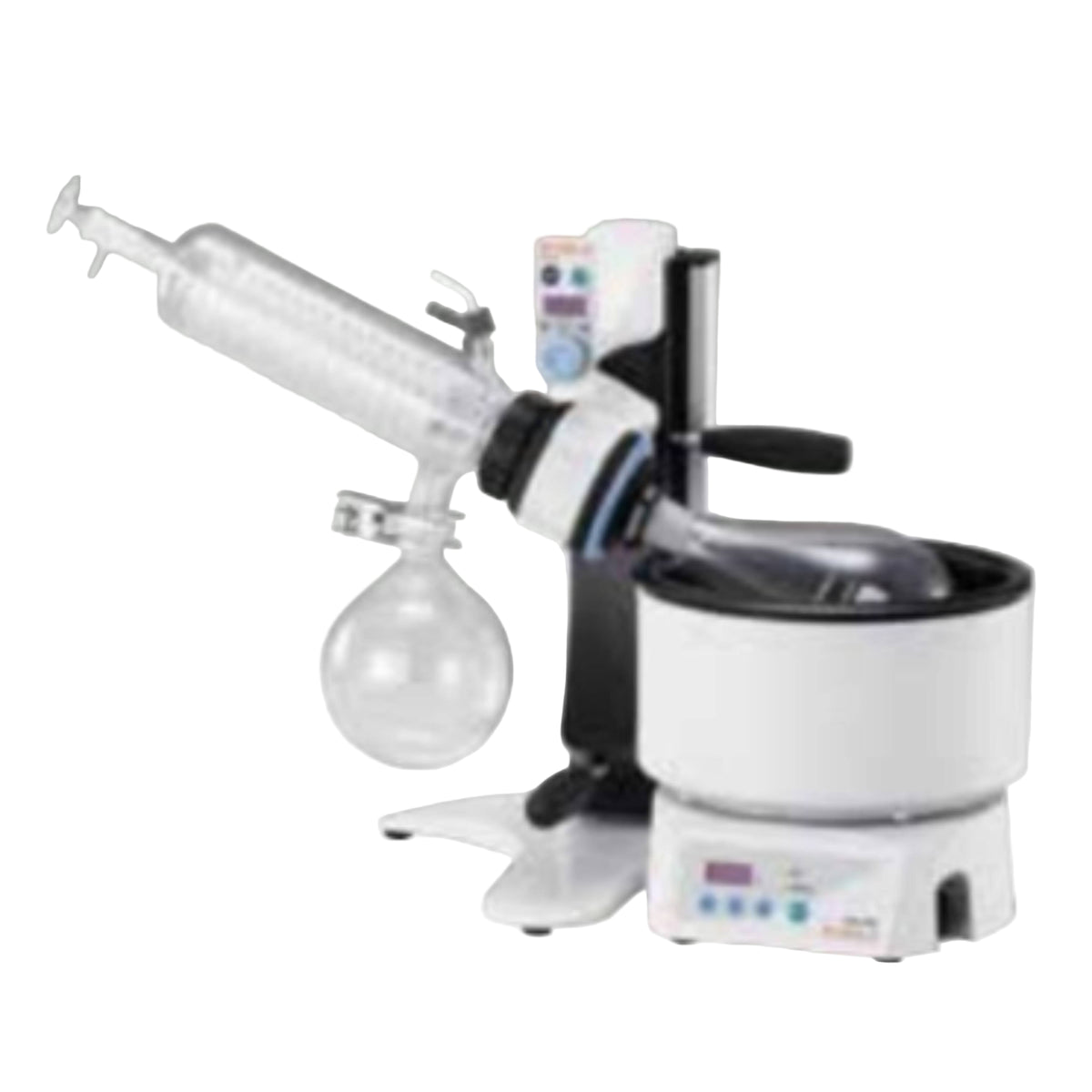

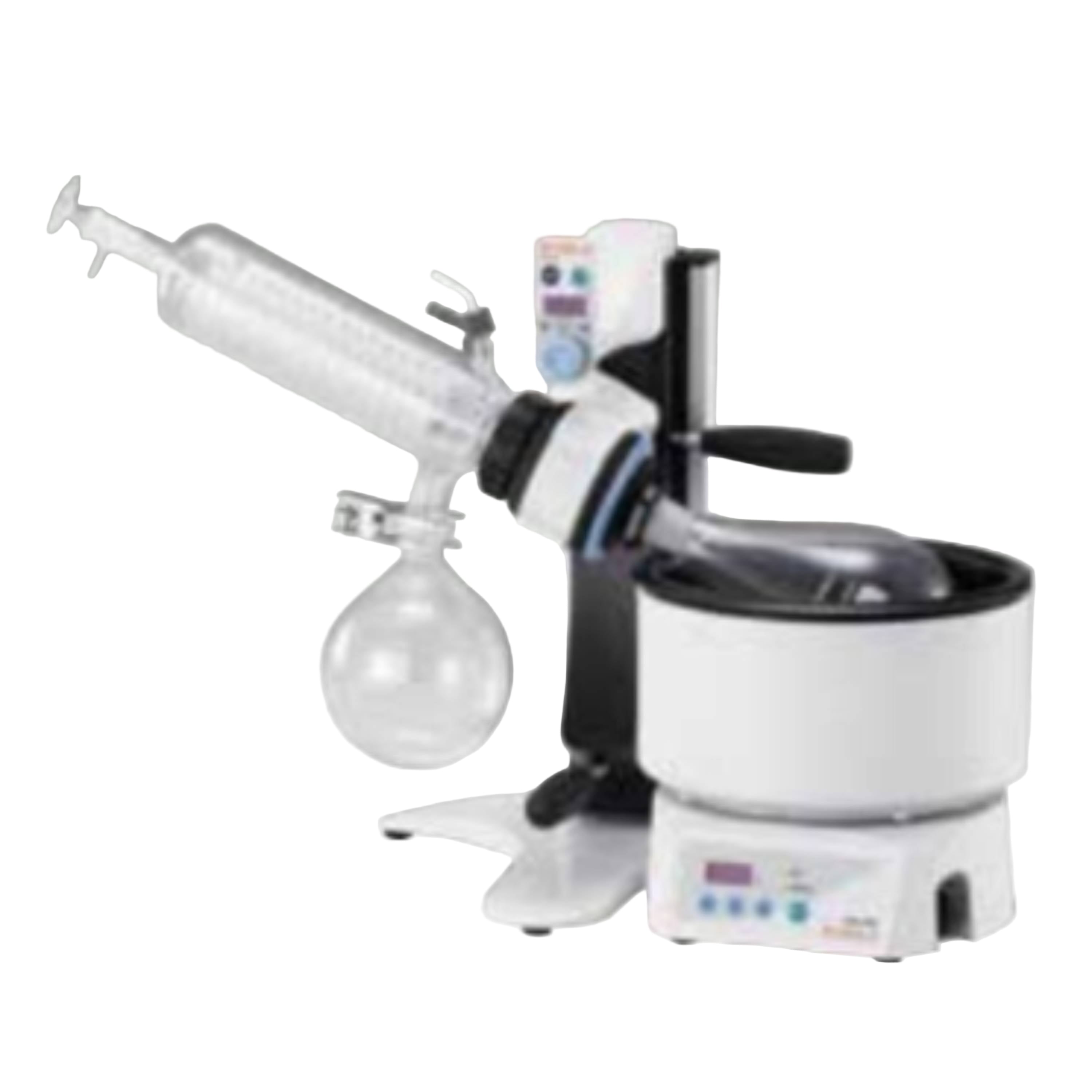

Type S diagonal double spiral condenser features a low-cost, standard design
Diagonal condenser with high efficiency and recovery
- The diagonal double spiral condenser can efficiently recover vapors from low to high boiling point substances.
- Manual balance type jacks allow stepless height adjustment. No bath height adjustment is required even for small volume sample vessels, and the 180mm stroke length can accommodate large volume flasks and trap balls.
- The glass set can be installed either left or right side of N-1300 main unit. The position of the glass set can be freely arranged according to the installation location and dominant hand, allowing for effective use of space even when two rotary evaporators are installed.
- The rotation direction and automatic inversion of sample flask can be set by the control panel.
- By switching to the optional thick-walled rotary joint, sample flask with a capacity of up to 2L can be used.
Specifications
|
Model |
N-1300S-W |
N-1300S-WB |
|
Bath type |
With water bath |
With water + oil bath |
|
Rotation speed range |
10 to 310 rpm |
|
|
Evaporation capacity |
Max. 23 mL/min (water evaporation) |
|
|
Bath temperature control range . accuracy |
RT + 5 to 90°C . ±1°C |
RT + 5 to 180°C . ±1.5°C (oil: ±3°C) |
|
Rotation setting . display |
Encoder-based digital setting . digital display |
|
|
Jack function |
Manual balance type (180 mm, stepless adjustment) |
|
|
Rotary motor |
Brushless DC motor |
|
|
Type S condenser set |
Diagonal double spiral condenser (cooling area 0.146 m²), rotary joint (18 ID × 272 mm, $ 29/38), 1 L sample flask (pear shaped, $ 29/38), 1 L receiving flask (round, S35/20) |
|
|
Vacuum seal |
Teflon® + Teflon® & Viton® double seal (Genuine parts: Vacuum seal ×2, Cat. No. 142610) |
|
|
Bath inner dimensions (mm) |
220 ID × 120 H |
240 ID × 120 H |
|
Bath material . heater . capacity |
Stainless steel . 1.05 kW . approx. 4.3 L |
Aluminum (Teflon® coating) . 1 kW . approx. 5.4 L |
|
Connection port diameter |
Cooling water nozzle . suction nozzle 10 mm OD |
|
|
Ambient temperature range |
5 to 35°C |
|
|
Outer dimensions (highest position) (mm) . weight |
736 W × 352 D × 504 (684) H . 12.1 kg |
724 W × 352 D × 504 (684) H . 12.7 kg |
|
Power input . supply voltage |
115 VAC 50/60 Hz |
115 VAC 50/60 Hz |
