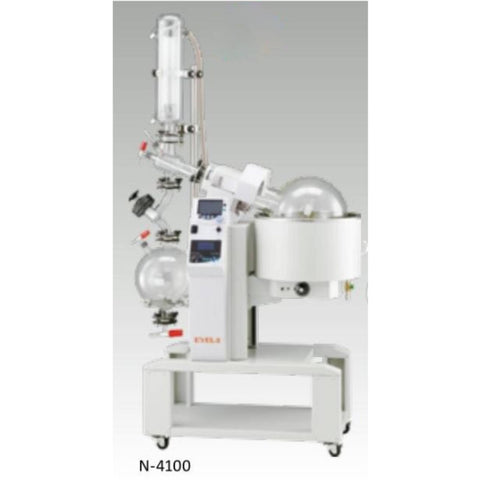

Eyela 20L Rotary Evaporator Model N4100
SKU: 281208
Eyela 20L Rotary Evaporator Model N4100
20L standard and dual-receiving flask type
- The vacuum controller has 55 registered programs, including those for solvents specified by environmental standards. The vacuum is appropriately controlled according to the solvent, allowing for efficient solvent recovery.
- The bath is compatible with both water and oil, allowing for the concentration of high-boiling-point substances. (Bath temperature range: room temperature +10 to 180°C)
- When N-4100 and N950 diaphragm vacuum pump are connected with the dedicated power cord provided, the diaphragm vacuum pump will operate automatically according to the operating conditions of N-4100.
Specifications
|
Model |
N-4100 |
N-4100W |
|
Cat. No. |
281208 |
281218 |
|
Sample flask |
20L round shaped flask (100mm diameter) |
|
|
Rotation speed range |
10 to 140rpm Stepless speed control |
|
|
Evaporation capacity |
Max. 4.0L/h (water evaporation) |
|
|
Ultimate vacuum |
2.6hPa (2Torr) or less |
4.6hPa (3.5Torr) or less |
|
Bath temperature control range |
RT + 10 to 180℃ (for water · oil) |
|
|
Temperature control accuracy |
PID control |
|
|
Temperature control |
±1℃ (When using water and rotating the sample flask) |
|
|
Display functions |
Bath temperature vacuum vapor temperature (option) |
|
|
Bath jack function |
Motorized jack (automatic lowering function during power failure: optional) |
|
|
Condenser |
Vertical triple spiral Cooling surface 0.5m² |
|
|
Receiving flask |
10L round shaped flask (with drain valve) |
10L round shaped flask x 2 pcs (with drain valve) |
|
Bath inner dimensions (mm) · capacity · material |
430 ID x 250Hmm · Approx. 40L · stainless steel |
|
|
Outer dimensions (mm) · weight |
1060W x 570D x 1910H · Approx. 141kg |
1170W x 700D x 1910H · Approx. 152kg |
|
Power input · supply voltage |
17 to 18A 3.9 to 4.3kVA · 230 to 240VAC Single phase 50/60Hz |
|
|
Power utility |
230VAC Single phase Capacity 23A |
|
