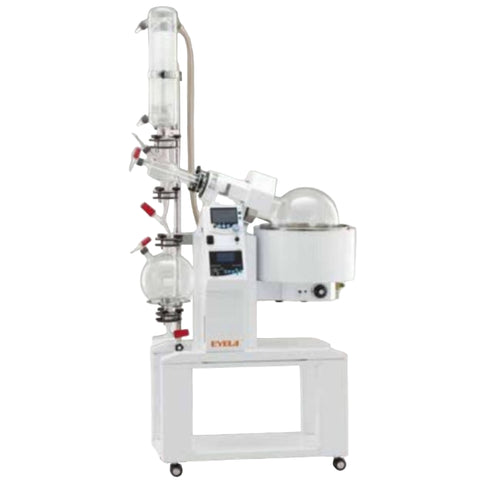

Eyela 10L Rotary Evaporator Model N3100
SKU: 280748
Eyela 10L Rotary Evaporator Model N3100
10L standard sample flask N-3100
- The vacuum controller and rotation speed temperature control units have been revamped. The LCD display makes it possible to display each function. The screen has also become larger, making it easier to view.
- The built-in vacuum controller with four control modes significantly improves solvent recovery.
- The sample flask is equipped with the one-touch clamp as standard, allowing easy attachment and removal of the sample flask.
- The base stand is included, making it easy to move the unit.
- The bath can be moved up and down stably with the electric automatic jack.
- The bath is compatible with both water and oil, allowing for the concentration of high-boiling-point substances when oil is used.
Specifications
|
Model |
N-3100 |
|
Cat. No. |
280748 |
|
Sample flask |
10L round shaped flask (100mm diameter) |
|
Rotation speed range |
10 to 140rpm Stepless speed control |
|
Evaporation capacity |
Max.3.5L/h (water evaporation) |
|
Ultimate vacuum |
2.6hPa (2Torr) or less |
|
Bath temperature control range |
RT + 10 to 180°C (for water · oil) |
|
Bath temperature accuracy |
±1°C (When using water and rotating the sample flask) ±3°C (When using oil and rotating the sample flask) |
|
Temperature control |
PID control |
|
Safety features |
Over flow tube Independent overheat protector Empty boil protector Rotation slow start Rotation motor invertor Unit overload breakdown detector Earth leakage breaker |
|
Display functions |
Digital display (bath temperature sample flask rotation speed) |
|
Bath jack function |
Motorized automatic jack |
|
Vacuum control fuction |
Constant value control (1 to 760mmHg/1 to 1013hPa) Program control (pre-programmed for each common solvent) Auto control (temperature sensor is optional) Step control |
|
Heater |
For temperature control 3.5kW |
|
Motor |
Induction motor Output 90 W |
|
Condenser |
Vertical triple spiral Cooling surface 0.5m² |
|
Receiving flask |
5L round shaped flask (with drain valve) |
|
Vacuum seal |
Teflon seal |
|
Bath inner dimensions (mm) capacity material |
360 ID x 200Hmm 20L stainless steel |
|
Connection port diameter |
Cooling water nozzle 16mm OD Suction nozzle 16mm OD Vacuum control solenoid valve Connection nozzle 13 mm OD |
|
Bath jack stroke |
150mm |
|
Ambient temperature range |
5 to 35°C |
|
Outer dimensions (mm) weight |
930W x 450D x 1890H Approx. 103kg |
|
Power input supply voltage |
17A 3.9kVA 230VAC Single phase 50/60Hz |
|
Power utility |
230VAC Single phase Capacity 23A |
