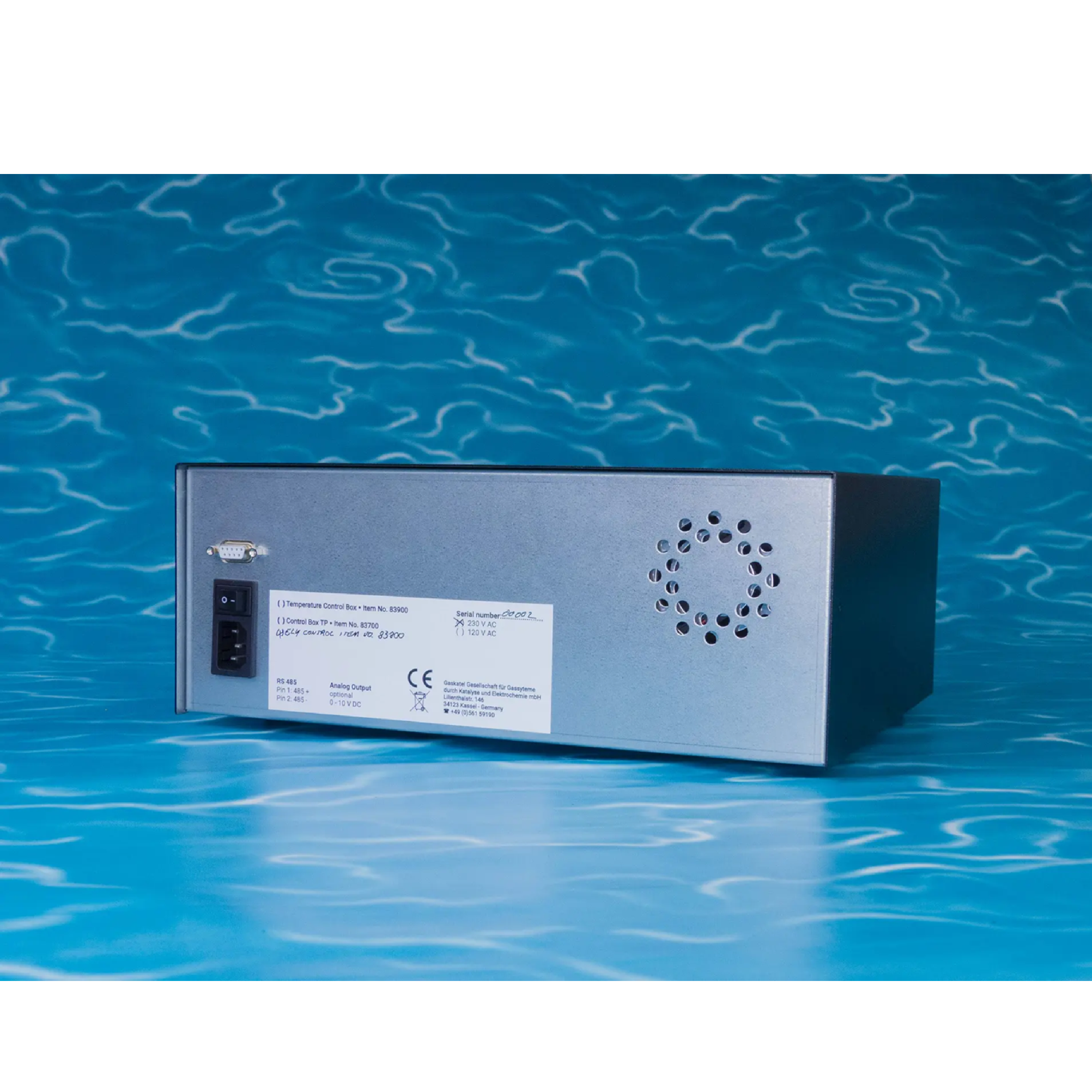

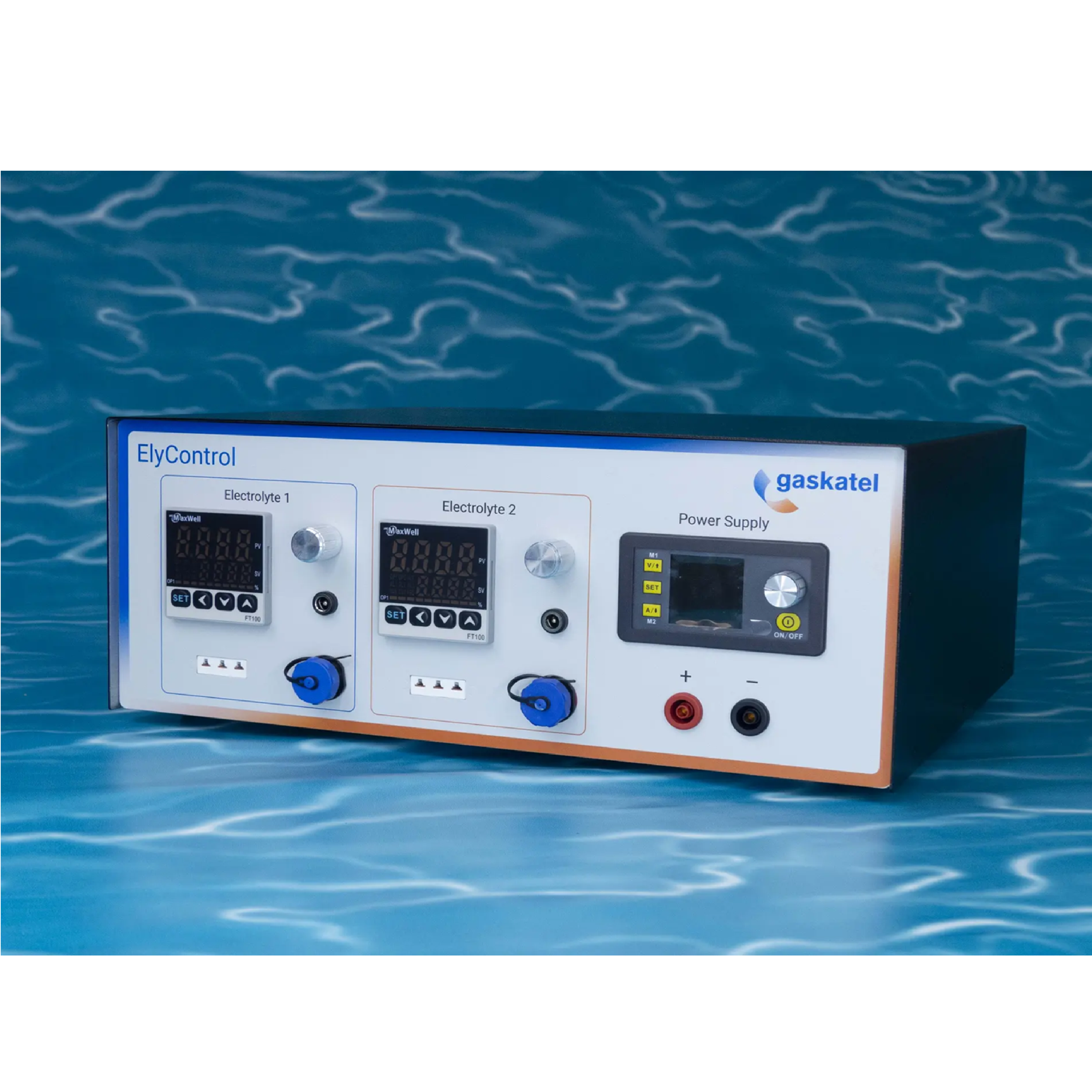

Gaskatel Control Box ElyControl for ElyFlow

Gaskatel Control Box ElyControl for ElyFlow

Buy Gaskatel electrochemistry Products from MSE Supplies at the best value.

MSE Supplies is an authorized distributor of Gaskatel GmbH.

Introduction

Elycontrol enables PID temperature control for voltammetric test cell ElyFlow. The unit contains 2 pump controls and an internal Galvanostat 0-5 A.

The control box is CE certified:

EC_Declaration-of-Conformity_ControlBox_Gaskatel

Key Features

• Dual PID temperature control – Independently control anolyte and catholyte temperatures for stable and reproducible test conditions.
• Precise temperature regulation – Maintains consistent operating temperatures to improve measurement comparability and reliability.
• Two integrated pump controllers – Independently adjust electrolyte flow through the cells to optimize mass transport and remove gas bubbles or liquid products.
• Internal 0–5 A galvanostat – Enables simple electrochemical experiments without requiring an external galvanostat.
• Free GCB control software – Easily configure, run, and monitor electrochemical experiments.
• SQL database storage – Automatically store experimental data in an SQL database for convenient data management and traceability.
• Integrated experimental platform – Combines temperature control, electrolyte flow control, and galvanostatic operation in a single system.

Specification

Each unit includes:

1 x Gaskatel Control box ElyControl
1 x Test lead red 750 mm (89031)
1 x Test lead black 750 mm (89032)
2 x Electrolyte pump (83720) with hose clamps (80169)
2 m Hose made of TPE (80190)
2 x Pt-100 resistance temperature detector FEP insulated (83911)
1 x Power cord

Software and Driver

Free Software package (please use WinRar for unpacking)
Free Driver package (please use WinRar for unpacking)

MSE Supplies offers a variety of electrochemistry products. Please contact us for more information.
