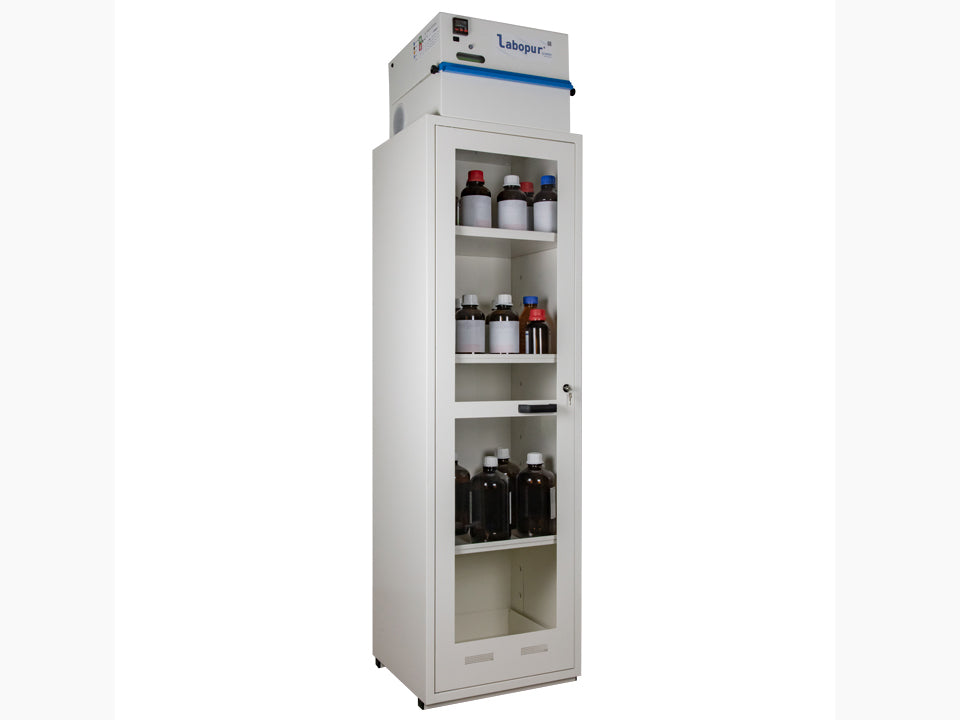

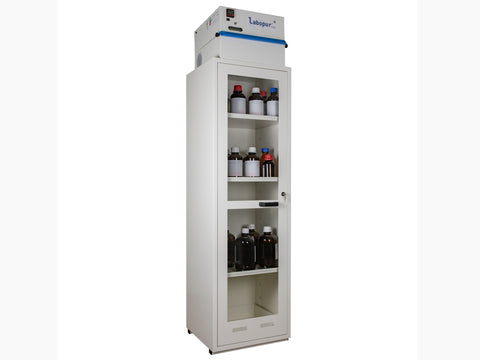

Ecosafe 1- Glass Door Tall Safety Cabinet with Filtration
SKU: AF3X
Ecosafe 1- Glass Door Tall Safety Cabinet with Filtration
ECOSAFE is the first Swiss supplier of safety products that offers the widest range of the world in this field, from storage (with our safety storage cabinets) to manipulation of chemicals (with our ductless fume hoods).
ECOSAFE has been specializing in the handling and storage of chemicals in industry, laboratories and universities for over 40 years.
Advantages:
- CE certified
- NF X 15-211 compliant
- Storage of flammables, corrosives and toxics
- Draft standard EN 17242
- Lighting control allowing to survey the proper working of the fan
- Front control window to see immediately the filter
- Stop 99,97% of the particles with a diameter bigger than 0.3 µm
- Active coal filters adsorption capacity and filtration system certified NF X 15-211
- Complies with risk prevention and safety recommendations
- Available in 2 models : glass doors or full doors
- To be equiped with an activated carbon filter tested to standard NF X 15-211
- Easy replacement of the active coal filter
- Easy and aesthetic installation
- Normalized labelling provided with the equipment
- No modification of building's structure required
- Fan in compliance with CE specifications
Technical Specifications:
| Model | AF3X |
| Compliance | NF X 15-211, Electric fan in compliance with CE specifications |
| Cabinet materials | 10/10th epoxy painted steel structure |
| Doors color | white RAL 9010 |
| Number of doors | 1 |
| Doors type | swing doors |
| Hinges | right |
| Door closure | manual closing |
| Openings diameter (mm) | 100 |
| Number of compartments | 1 |
| Shelves | 3 |
| Containment sump | 1 |
| Retention capacity (L) | 41 |
| External dimensions HxWxD (mm) | 2135 x 560 x 545 |
| Internal dimensions HxWxD (mm) | 1795 x 555 x 480 |
| Shipping dimensions HxWxD (mm) | 2340 x 1200 x 800 |
| Load capacity | 50 |
| Storage capacity (L) | 150 |
| Electrical power (W) | 20 |
| Sound power of the fan dB(A) | 43.00 |
| Weight (kg) | 75.00 |
