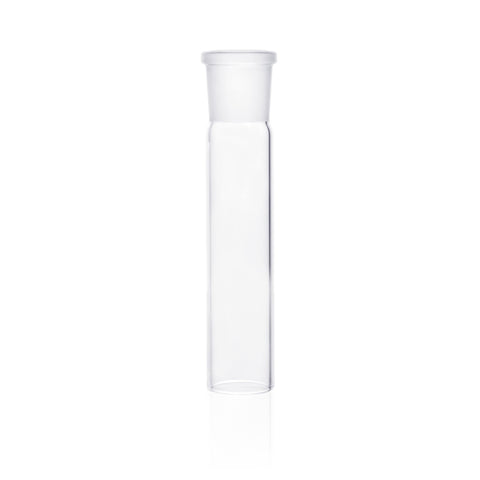

DURAN® Standard Socket, Finished, NS 24/29
SKU: DWK286543803
DURAN® Standard Socket, Finished, NS 24/29
Buy DWK Life Sciences products from MSE Supplies at the best value.
The conical ground joint is the most common joint in glass apparatus engineering. The DURAN® standard sockets, ground, comply with DIN 12249 Form E in their design and meet higher requirements for the surface roughness. This reduces the need for grinding grease and the risk of jamming. Ground joints should always be used with grease or PTFE sleeves. KECK™ Conical ground joint clamps are the perfect supplement for securing the conical ground joint.
- Complies with DIN 12249 Form E
- Manufactured from borosilicate glass 3.3
- Ground (finer grinding quality, less roughness depth)
- The finer surface reduces the risk of jamming the cuts
- Minimized grease requirement
- Very low leakage rate
- Tight closure due to standard ground joint
- Glass articles for further processing
| Catalog No | Socket Size | Diameter d (mm) | Wall Thickness s (mm) | Length l (mm) | Remarks | Pack Size |
|---|---|---|---|---|---|---|
| 286543803 | 24/29 | 28 | 2 | 140 | - | Case of 1 |
