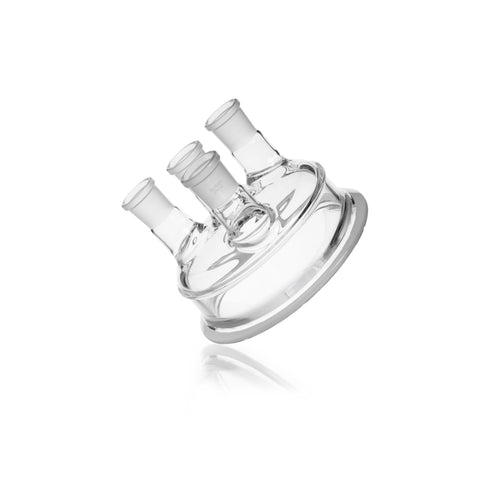

DURAN® Flat Flange Lid, DN 150
SKU: DWK243925707
DURAN® Flat Flange Lid, DN 150
Buy DWK Life Sciences products from MSE Supplies at the best value.
These flat flange lids are used in conjunction with flat flange vessels as an alternative to the large volume round flasks. The wide neck opening of flat flange vessels allows easy access to the vessel contents. The two parts are held together by means of a clamping ring. The multi-neck ground necks on these lids allow the connection of a variety of other ground joint components such as dropping funnels, condensers and stirring shafts. Flat flange vessels are well suited for preparative work such as general reactions, distillations, evaporation and drying of solid and viscous substances. Their heavy wall construction and geometry make these vessels safe for working under positive pressure and vacuum.
- Manufactured from 3.3 expansion borosilicate glass
- Pressure and vacuum resistant due to the wall thickness and geometry
- Tight closure due to standard ground joints
| Catalog No | DN | Height h (mm) | Flange OD (mm) | Center Joint Size | Neck Size | Pack Size |
|---|---|---|---|---|---|---|
| 243925707 | 150 | 130 | 184 | NS 29/32 | 3 x NS 29/32 parallel | Case of 1 |
