BOLA Stopcocks with Hose Connectors (PTFE) - aØ 11 mm
Product Description

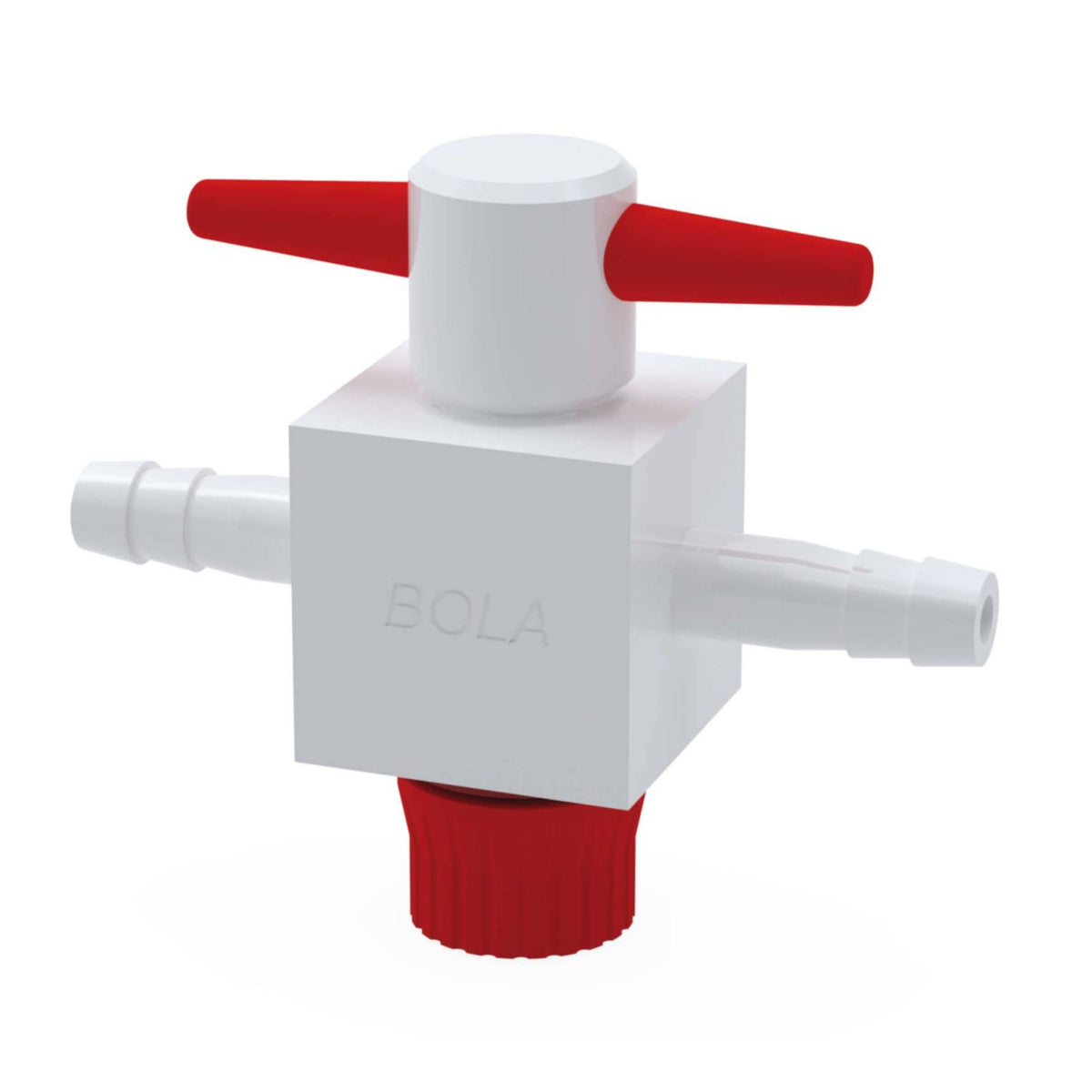

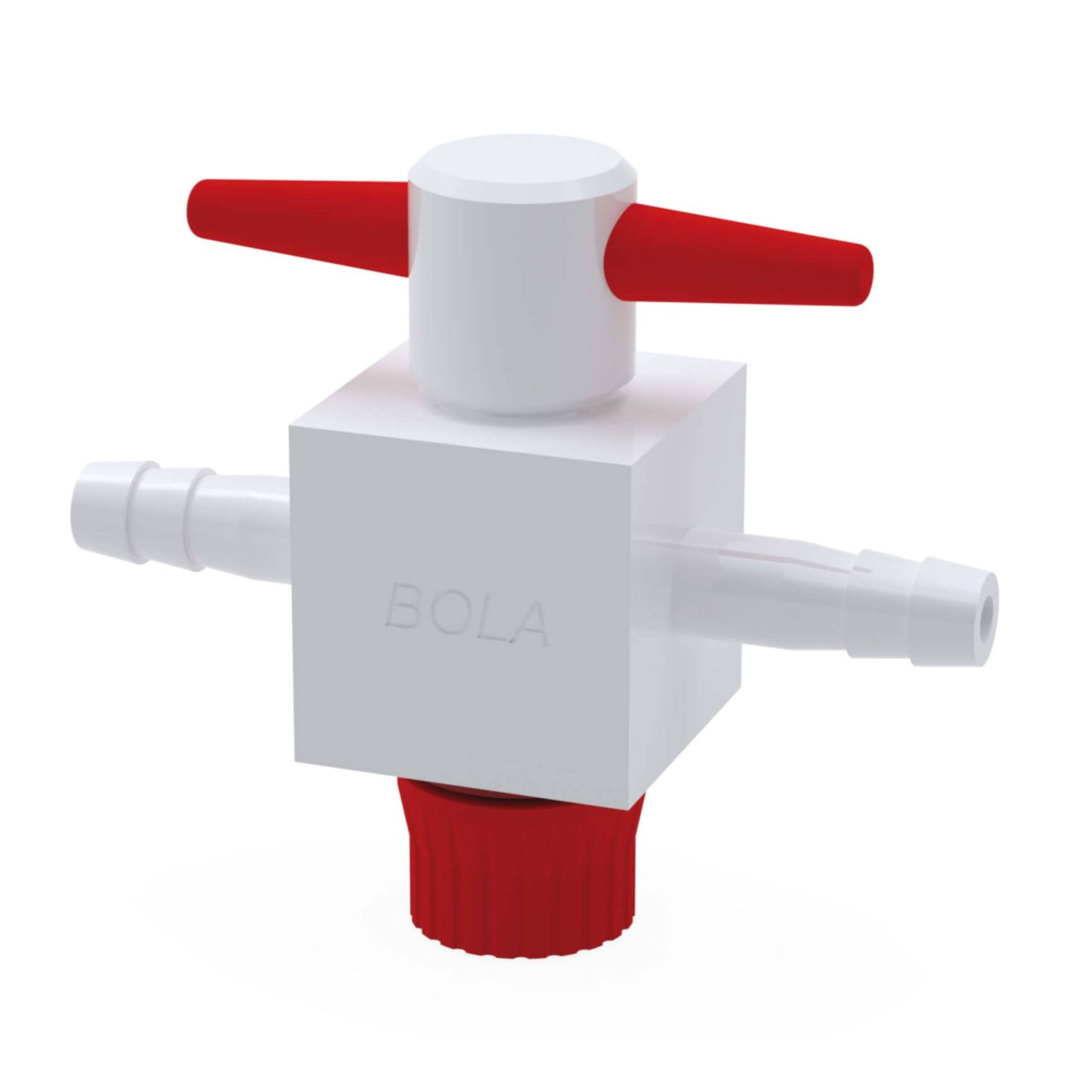

2-way stopcock with straight bore and two hose connectors or 3-way stopcock with T-shaped bore and three hose connectors for connecting elastic tubing (e.g. Viton®, Tygon®, silicone). Conical stopcock plug, tightness is increased by turning the nut on the lower side. 3-way stopcock plug with T-shaped mark of flow direction. Universal chemical resistance, the flowing product is only exposed to PTFE.
Applications

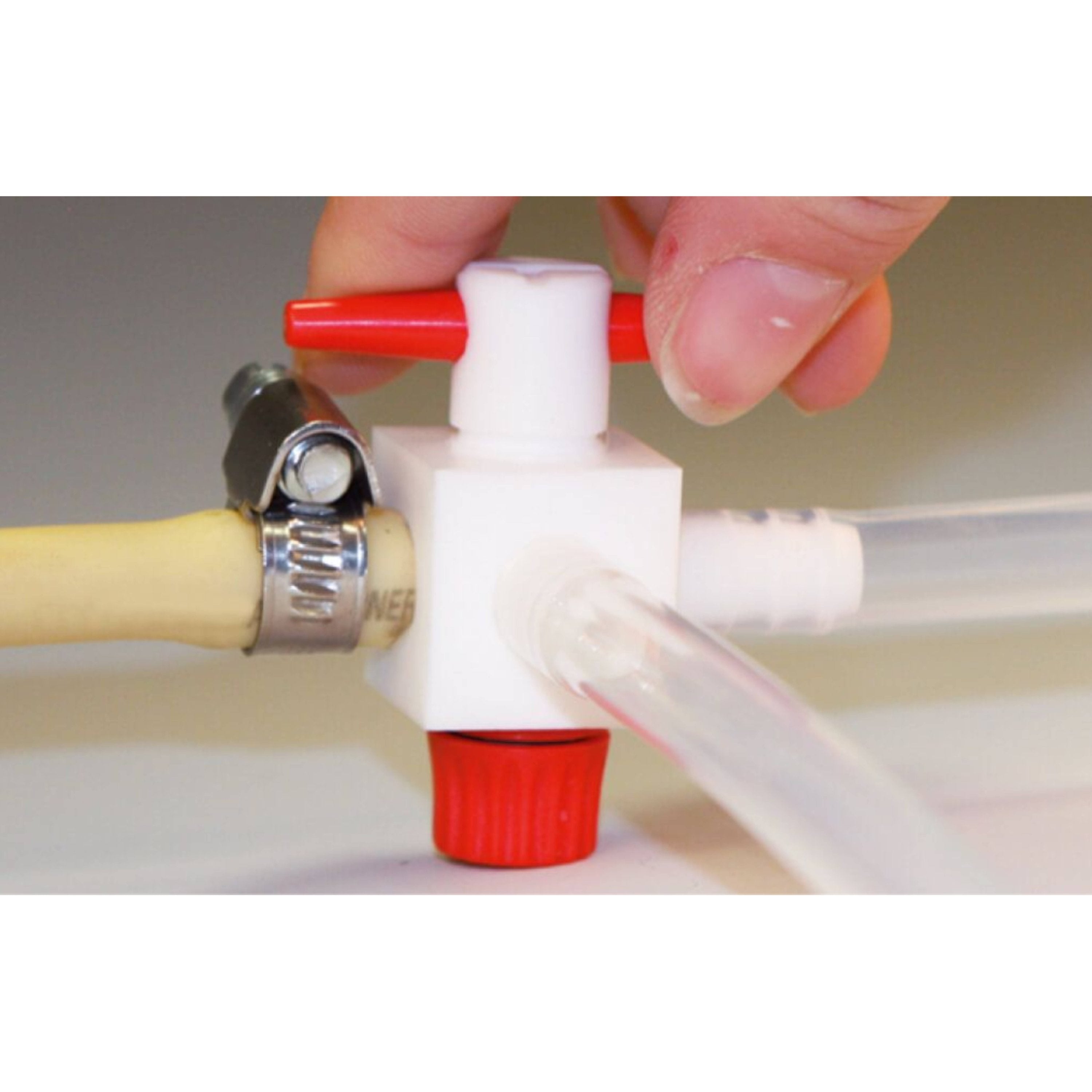

For distributing liquids or gases. Quick and easy disconnection of flow.
Specifications:
| Model | E650-12 |
| Chemical resistance | +++ universal |
| Material | PTFE, PP |
| Pressure | 2 bar |
| Temperature resistance | from 0°C to +110°C |
| Bore dia. [mm] | 6,0 |
| Bore shape [stopcock] | I |
| External dimensions [L / D / H mm] | 85 x 35 x 69 |
| For tubing I.D. [mm] | 10 |
|
O.D. of connectors [mm] |
11,0 |
| Type | 2-Wege/2-way |
