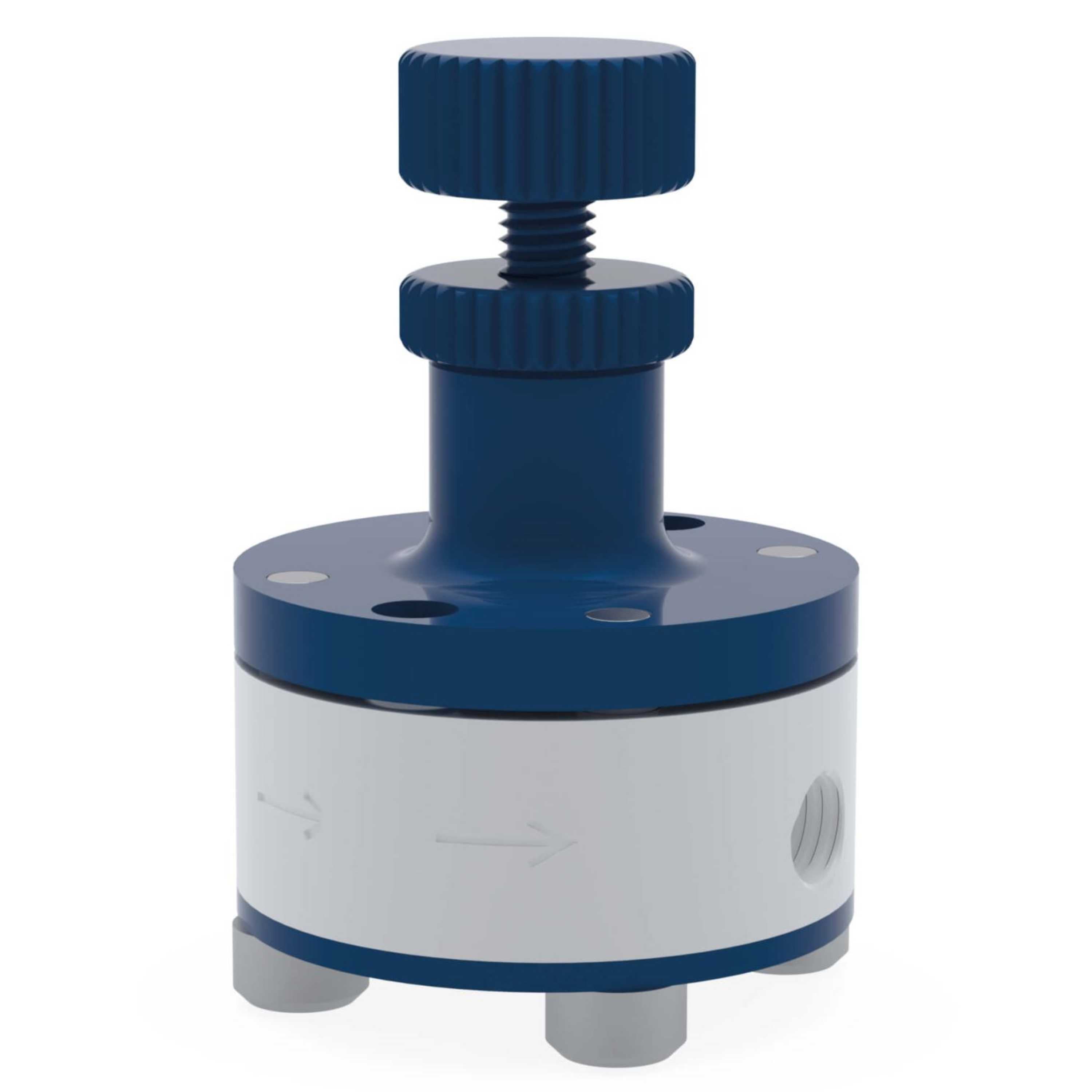

BOLA Mini-Pressure Relief Valves (PTFE/PPS ) - UNF 1/4" 28 G, Ø 0,8 x 1,6 mm
Regular price
$ 526.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Mini-Pressure Relief Valves (PTFE/PPS ) - UNF 1/4" 28 G, Ø 0,8 x 1,6 mm
Product Description

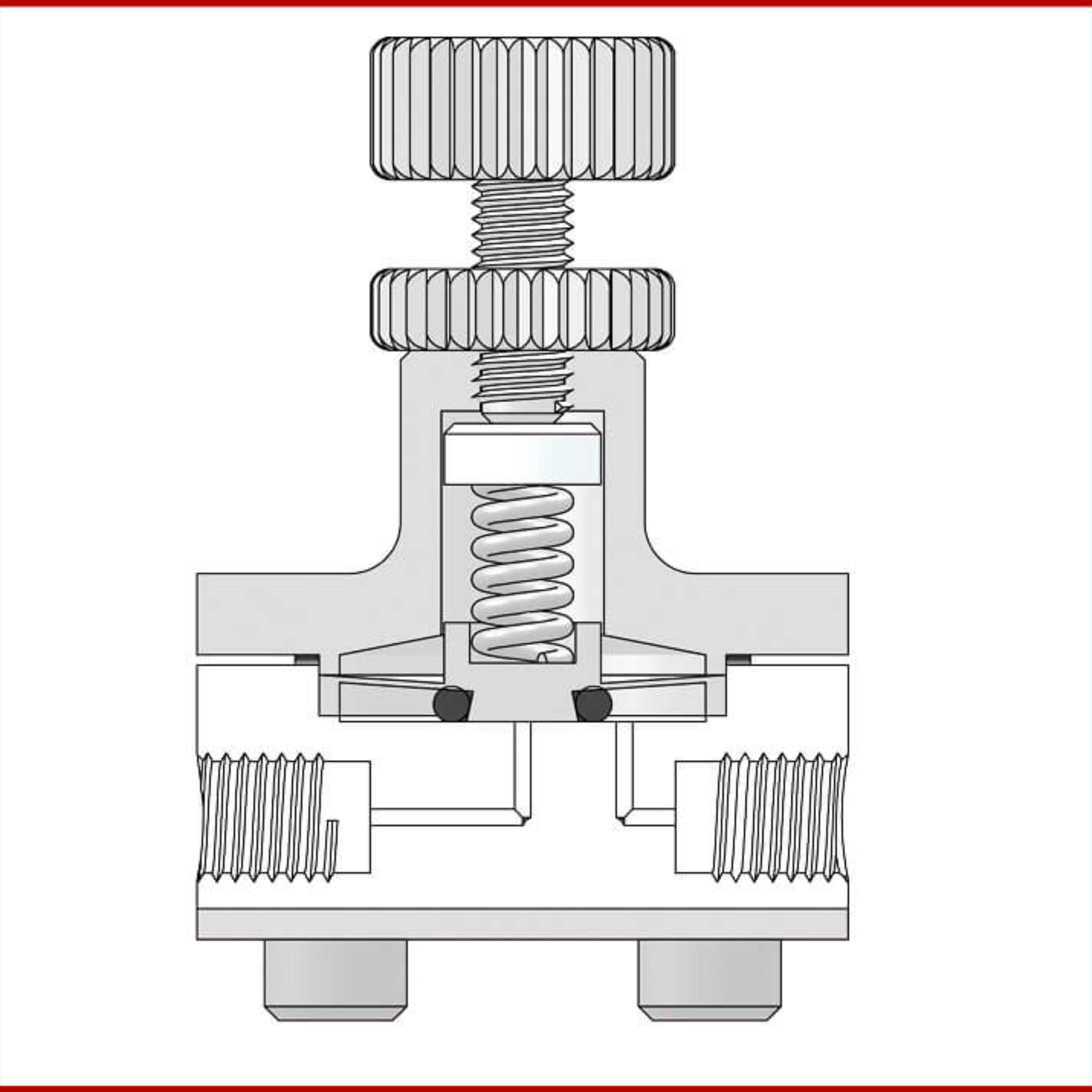

Body made of PTFE with two connections with female thread UNF ¼” 28 G. Valve made of PPS with set screw and lock nut for adjusting and fixing pressure between 0,1 and 5 bar (factory setting 1,5 bar).
Product Advantages
- Low dead volume
- Flow direction is marked by an arrow
- Two holes for panel mounting
- Universal chemical resistance, the flowing product is only exposed to PTFE
Applications
Pressure control valve with adjustable opening pressure. For preventing pressure drop during filling.
Specifications:
| Model | F738-08 |
| Chemical resistance | +++ universal |
| Material | PTFE, PPS |
|
Pressure |
5 bar |
|
Temperature resistance |
from -20°C to +250°C |
| For tubing I.D. x O.D. [mm] | (1/32" x 1/16") - 0,8 x 1,6 |
| O.D. [mm] | 32 |
| Total height [mm] | 50 |
Downloadable links:
Technical information
Material Safety Data Sheets
