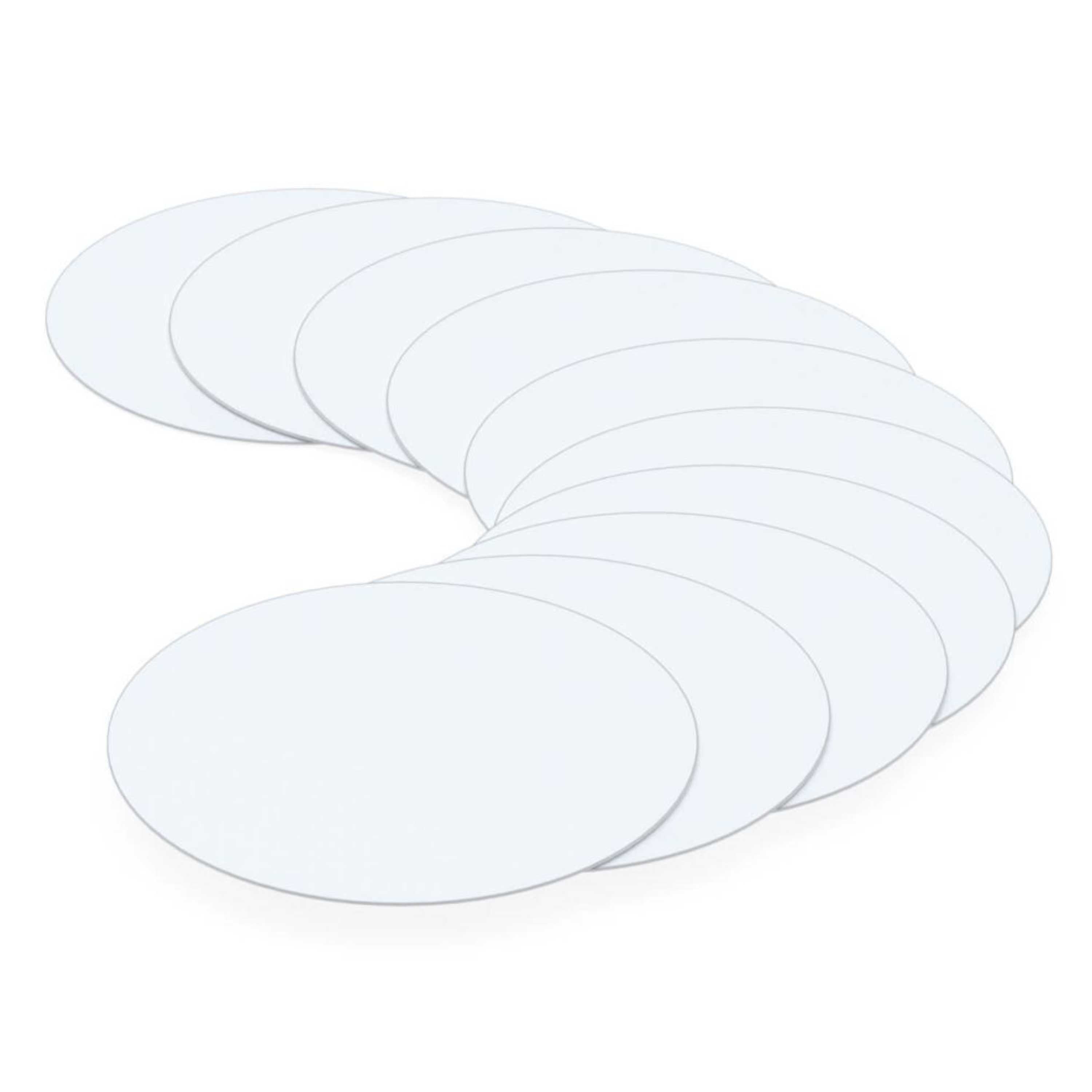

BOLA Filtering Membranes (PTFE ) - Ø 47mm 10µm t=0,2mm PU=10 pcs
Regular price
$ 148.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Filtering Membranes (PTFE ) - Ø 47mm 10µm t=0,2mm PU=10 pcs
Product Description
Made of microporous PTFE, thickness 0,2 mm, packing unit: 10 pieces (see Cat. No. N 1699-...for further sizes)
Applications
Flow rate:
Flow capacity under vacuum of 100 kPa (1000 mbar) using a PTFE filtering membrane with a diameter of 47 mm and a thickness of 0,2 mm
- Pore size 0,20 µm: Flow of water 35 ml/min
- Pore size 0,20 µm: Flow of air 740 ml/min
- Pore size 0,45 µm: Flow of water 164 ml/min
- Pore size 0,45 µm: Flow of air 2.300 ml/min
- Pore size 1,00 µm: Flow of water 510 ml/min
- Pore size 1,00 µm: Flow of air 5.330 ml/min
- Pore size 5,00 µm: Flow of water 860 ml/min
- Pore size 5,00 µm: Flow of air 92.300 ml/min
Specifications:
| Model | N1690-65 |
| Chemical resistance | +++ universal |
| Material | PTFE |
| Temperature resistance | from -200°C to +250°C |
|
Dia. of membrane [mm] |
47 |
|
Filtration surface [square mm] |
1.732 |
|
Pore size [µm] |
10,00 |
Downloadable links:
Technical information
Material Safety Data Sheets
