BOLA Distributors for Bottles (PTFE/PPS ) - GL 45 UNF1/4" 28G Ø 0,8x1,6mm
Regular price
$ 106.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Distributors for Bottles (PTFE/PPS ) - GL 45 UNF1/4" 28G Ø 0,8x1,6mm
Product Description

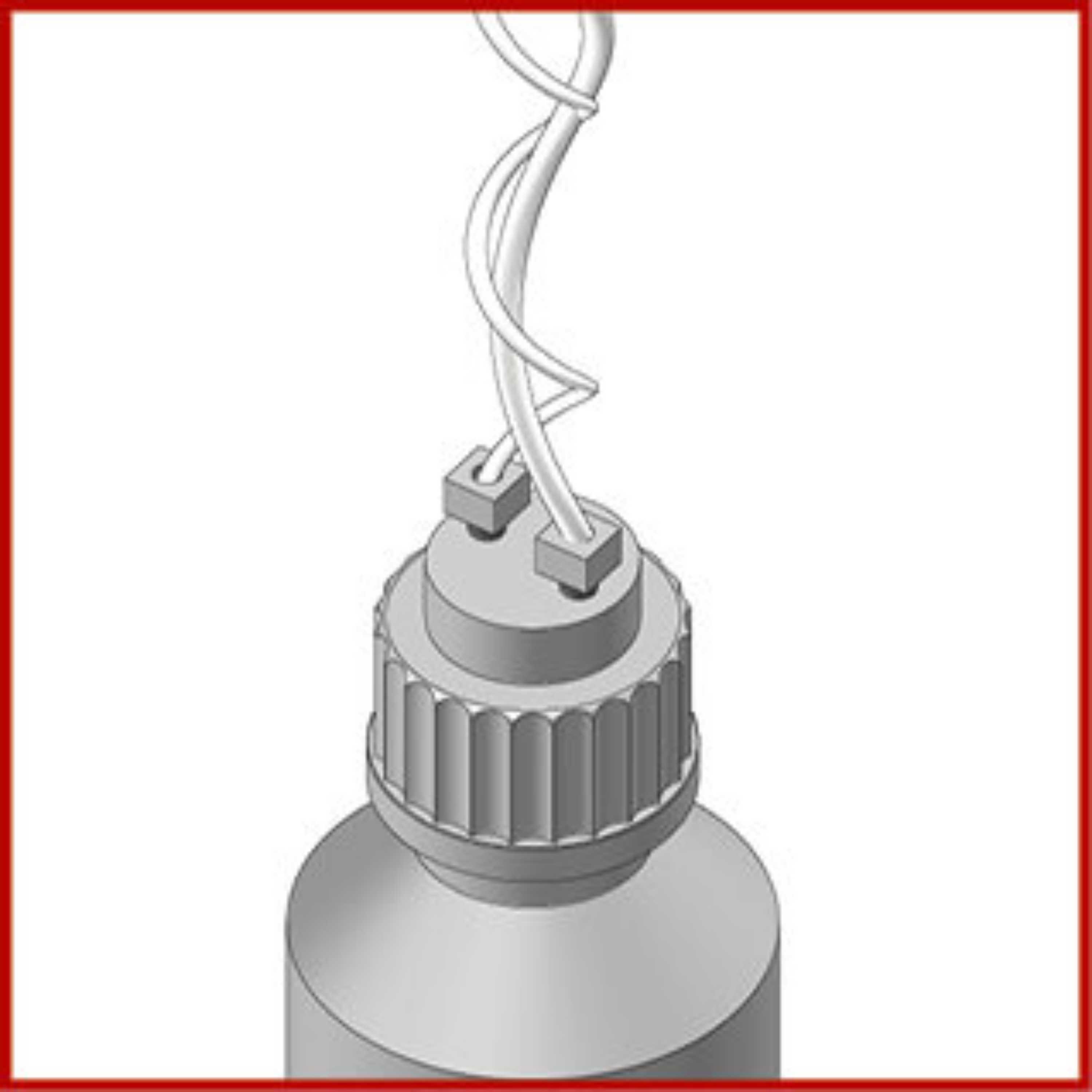

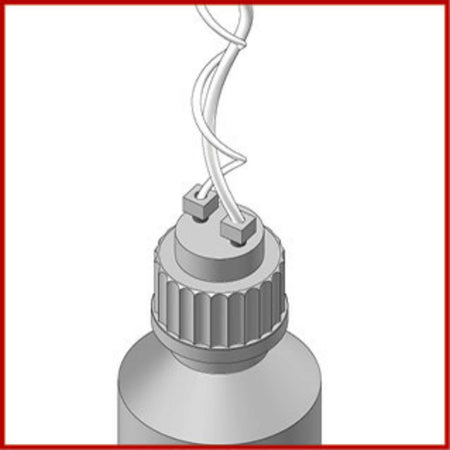

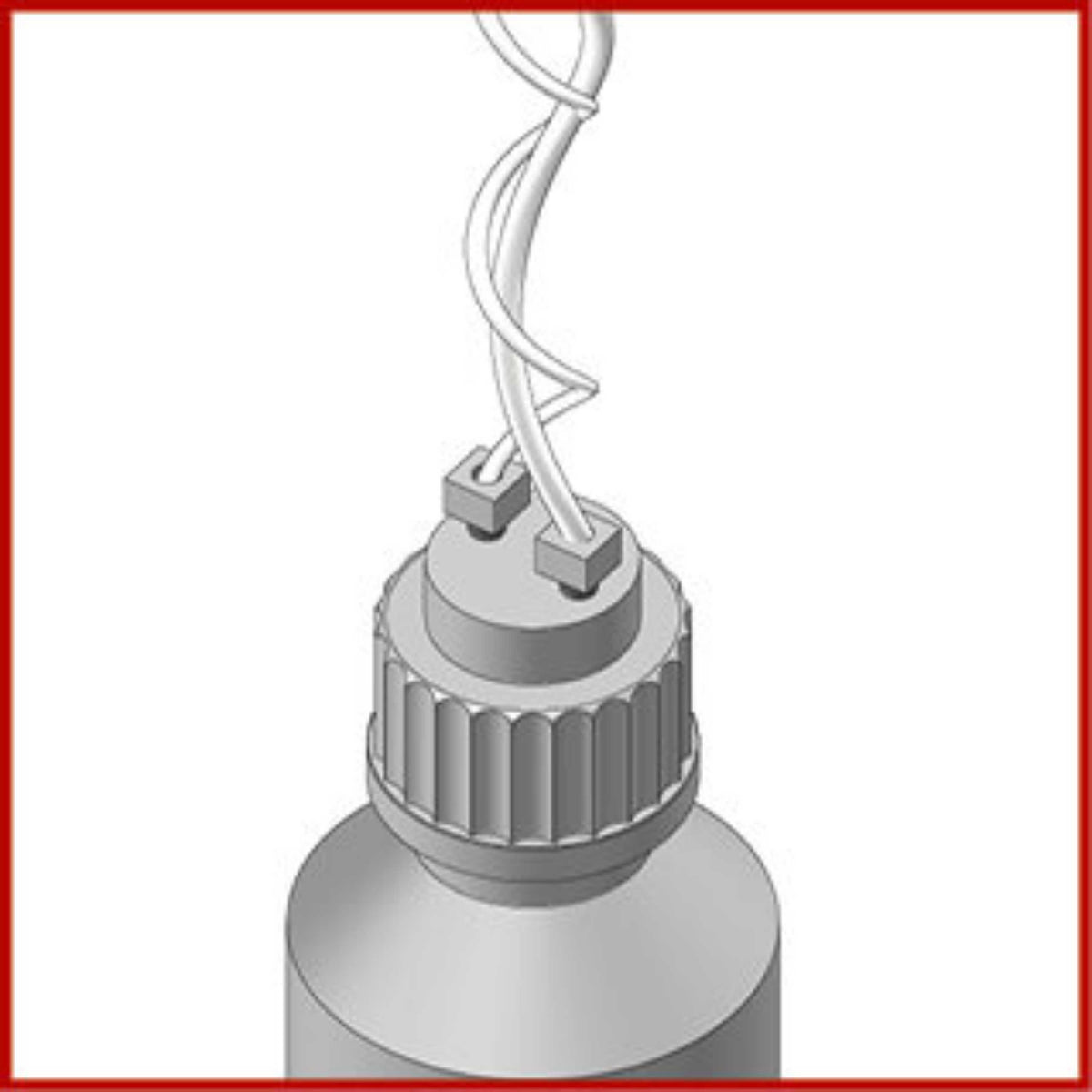

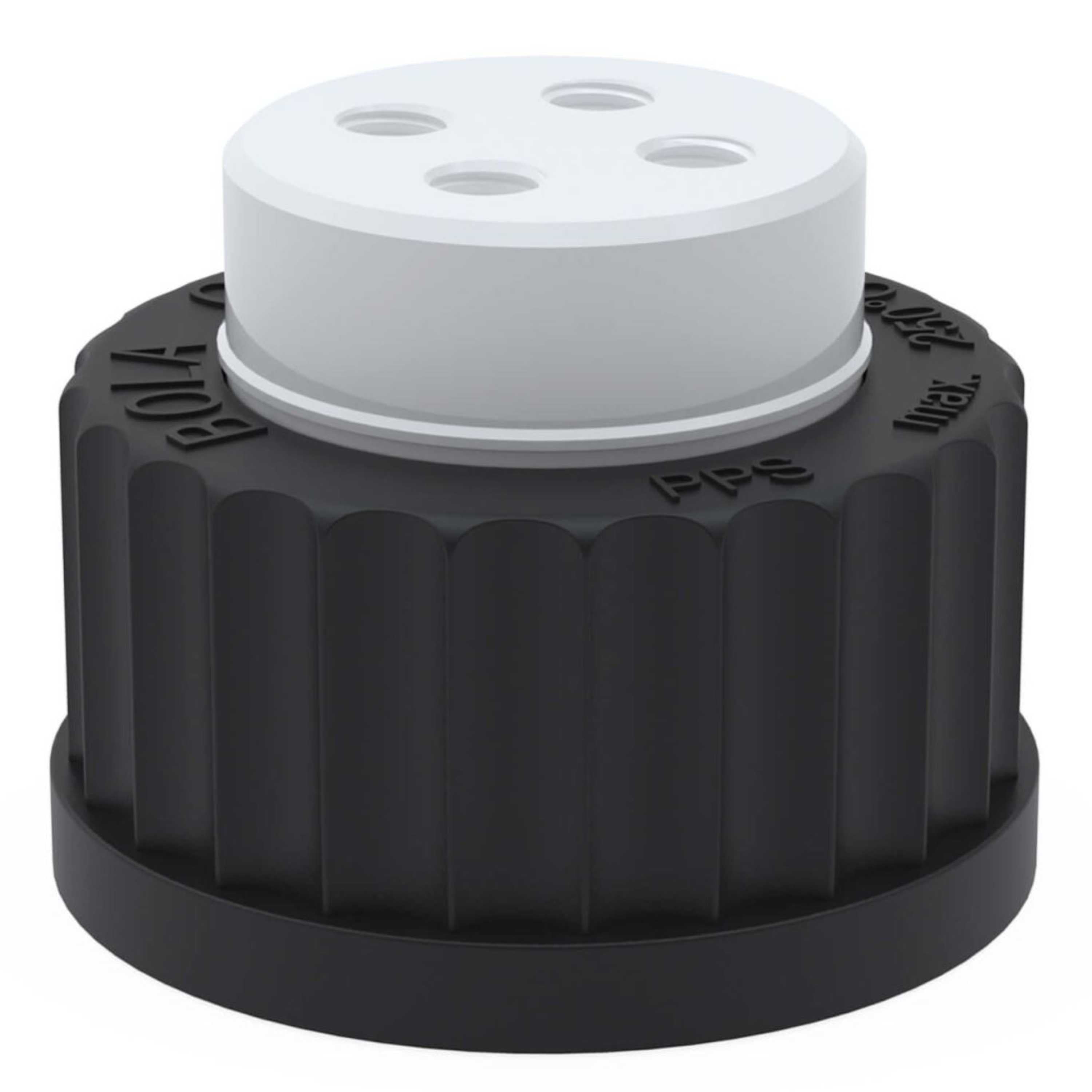

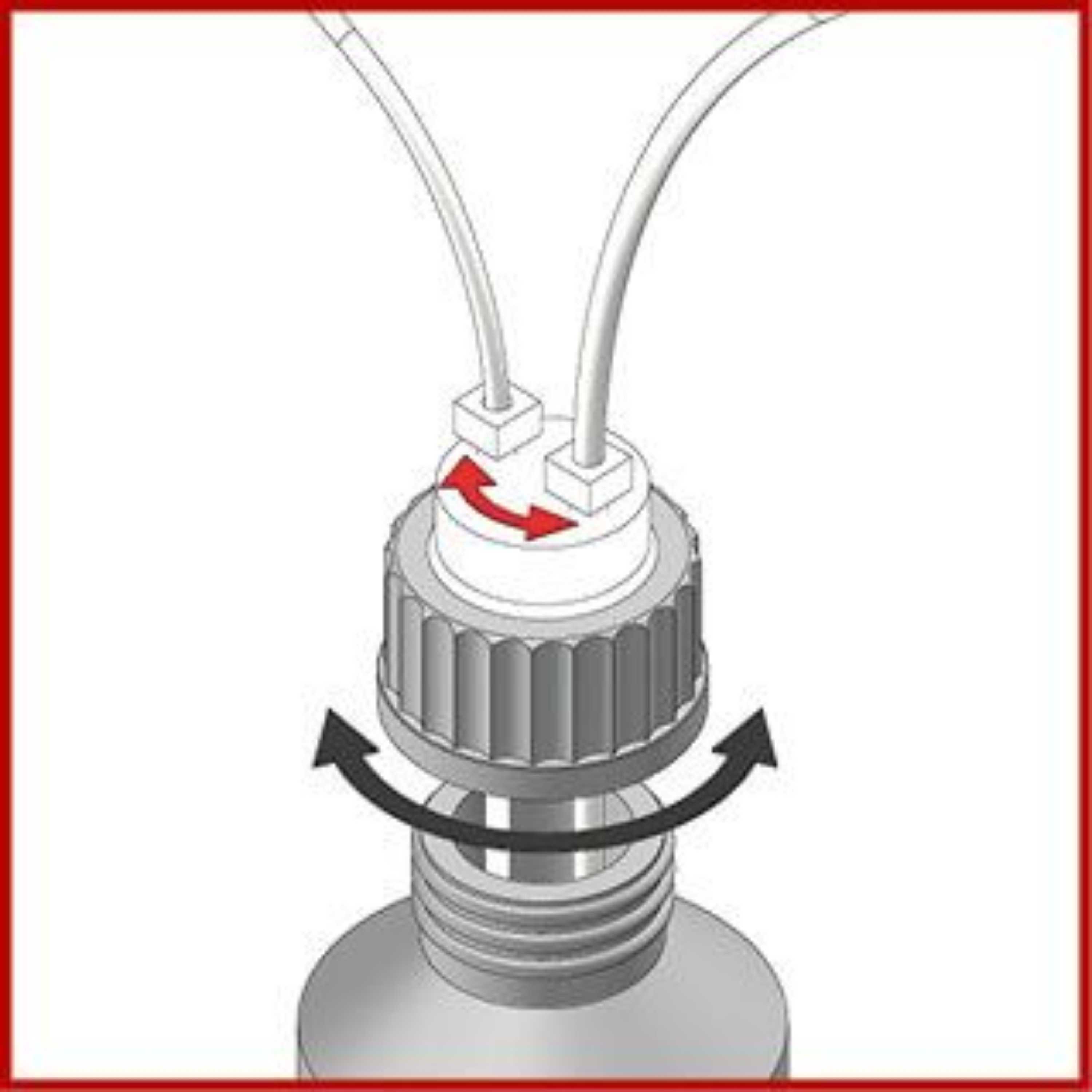

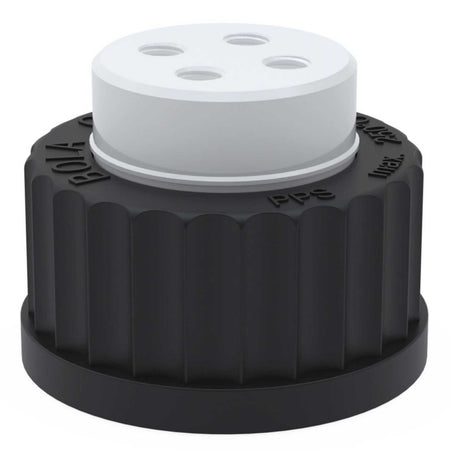

Black screw cap made of PPS for bottle thread GL 45. Without stopcocks: body made of PTFE with 2 or 4 ports with female thread UNF ¼” 28 G on upper and lower sides. With stopcocks: body made of PTFE with 2 or 3 ports with female thread UNF ¼” 28 G on upper and lower sides and stopcock made of FEP for each port. A possible unevenness of the bottle neck is adjusted by an o-ring behind an elastic sealing lip, and the bottle is closed tightly. The product is only exposed to the body of the distributor. The body of the distributor can be turned independently from the screw cap. This means, that the completely assembled distributor can be removed completely and fixed on another bottle without the risk of disarranging the tubing. Very good chemical resistance, for working temperatures up to +200°C.
Applications

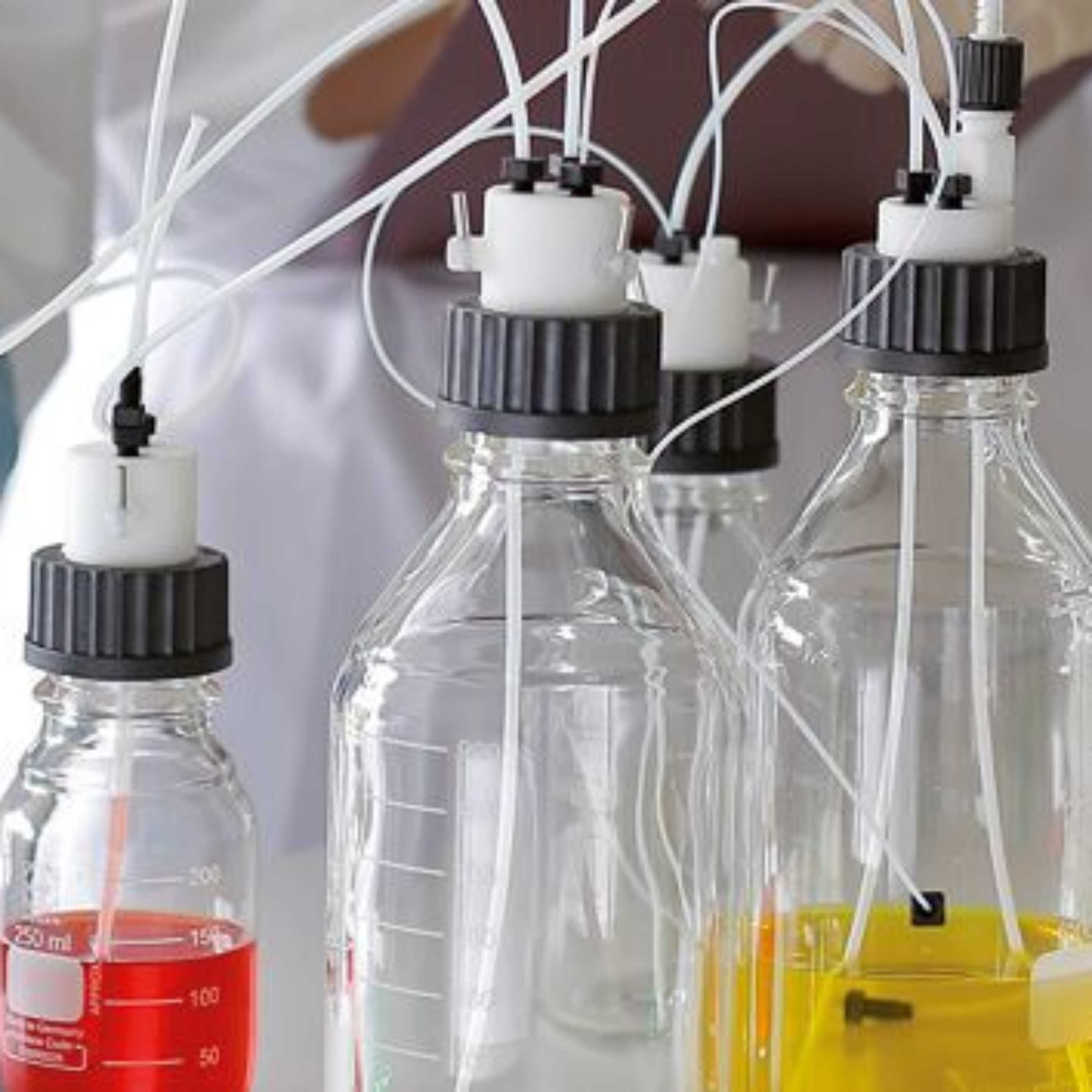

HPLC
Specifications:
| Model | F745-10 |
| Chemical resistance | +++ universal |
| Material | PTFE |
|
Temperature resistance |
from -50°C to +200°C |
|
Bore dia. [mm] |
0,8 |
| Connections | 4 x UNF 1/4" 28G |
| For tubing I.D. x O.D. [mm] | 0,8 x 1,6 |
| Number of stopcocks | - |
Downloadable links:
Technical information
Material Safety Data Sheets
