BOLA Bellows (PTFE ) - 29/42
Regular price
$ 182.95
Couldn't load pickup availability
Still have questions? Ask our experts!
BOLA Bellows (PTFE ) - 29/42
Product Description

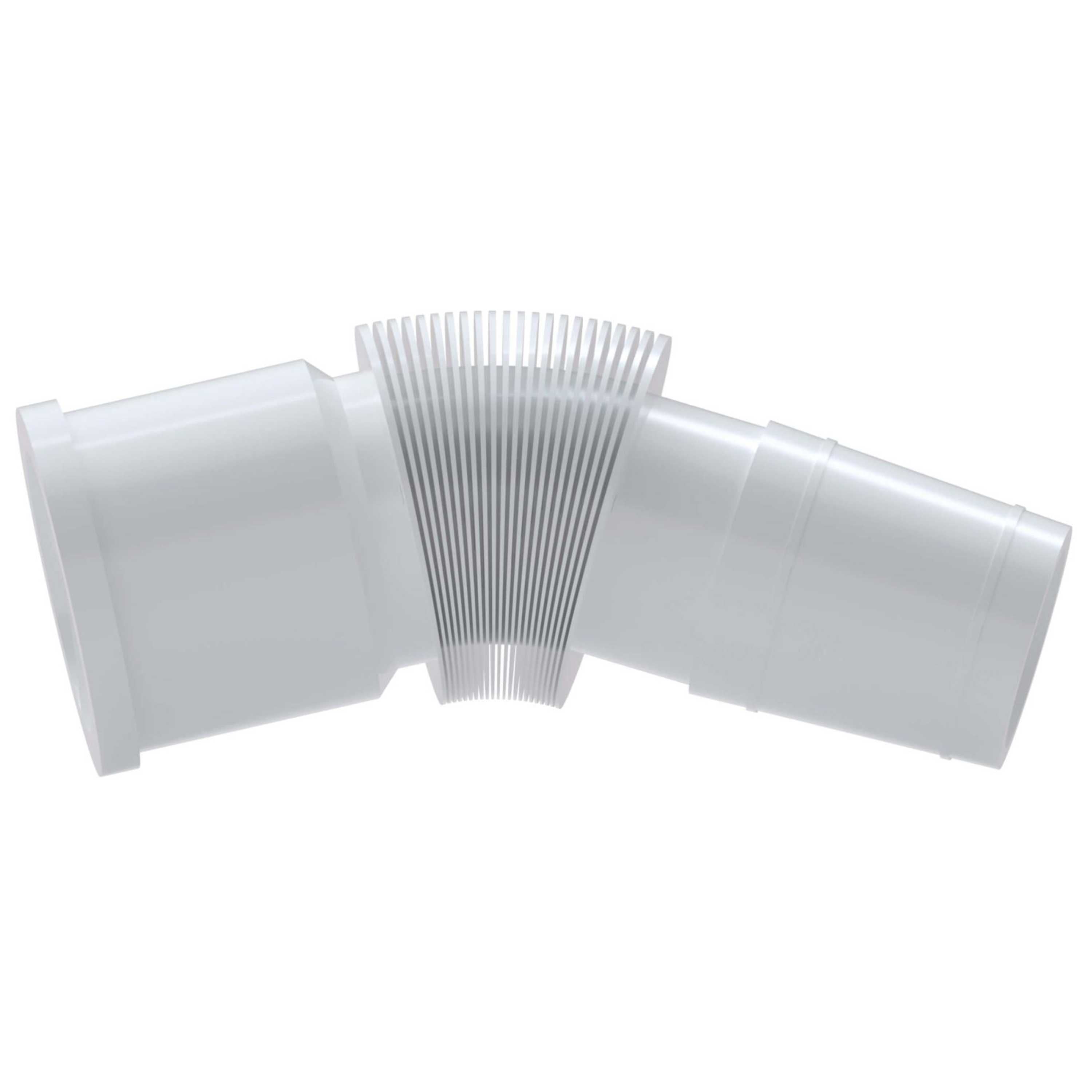

Made of PTFE, with sharp folds and sealing rings on the outside of the cone; maximum deflection: 120°.
Applications

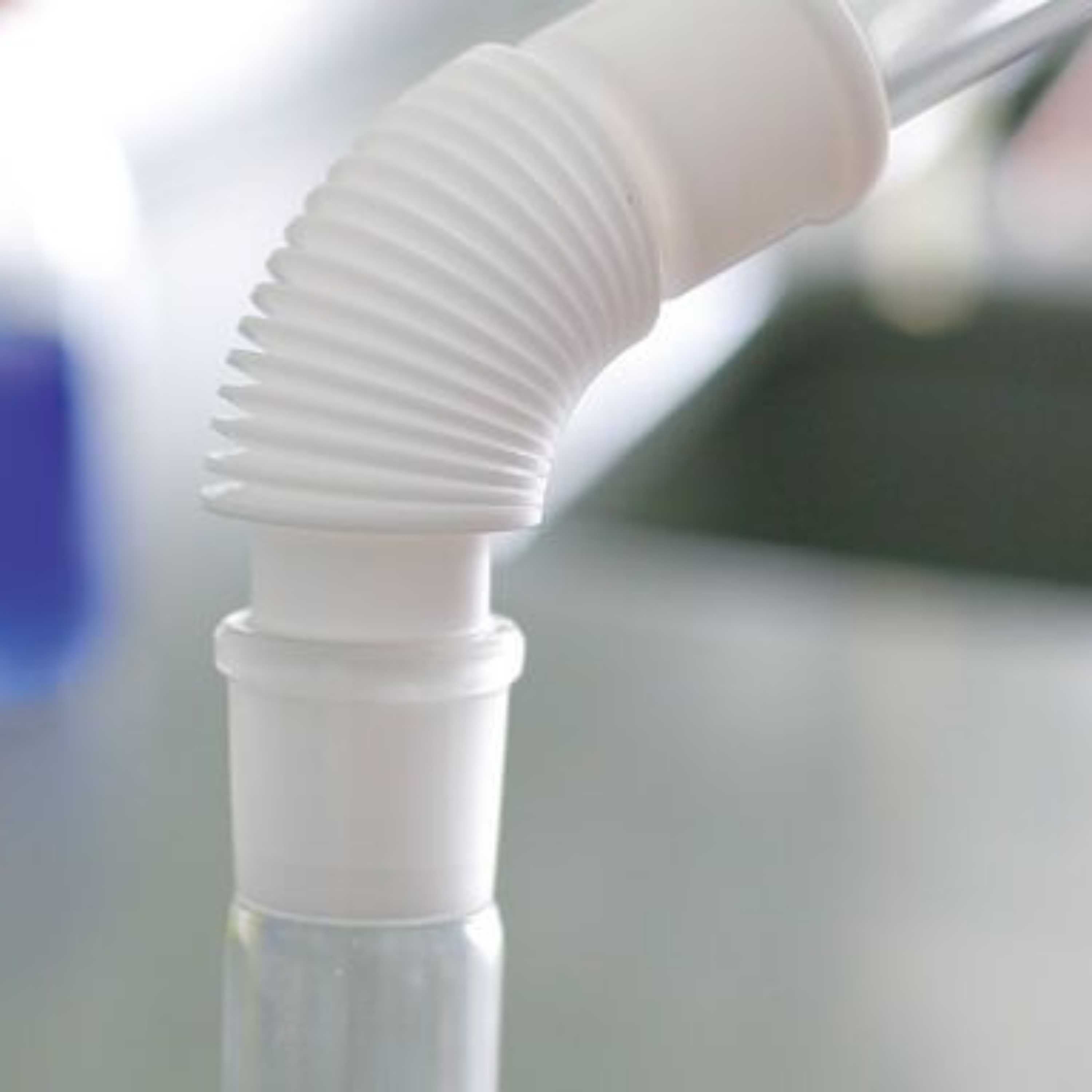

Stainless connection of ground joint equipment; for compensating vibrations from vacuum pumps; for length compensation of heated columns; angular misalignment.
Specifications:
| Model | H905-17 |
| Chemical resistance | +++ universal |
| Material | PTFE |
|
Temperature resistance |
from -20°C to +200°C |
|
Vacuum |
suitable |
| Cone NS | 29/42 |
| Socket NS [European standard] | 29/42 |
| Total maximum length, [mm] (2) | 142 |
| Total minimum length, [mm] | 124 |
Downloadable links:
Technical information
Material Safety Data Sheets
