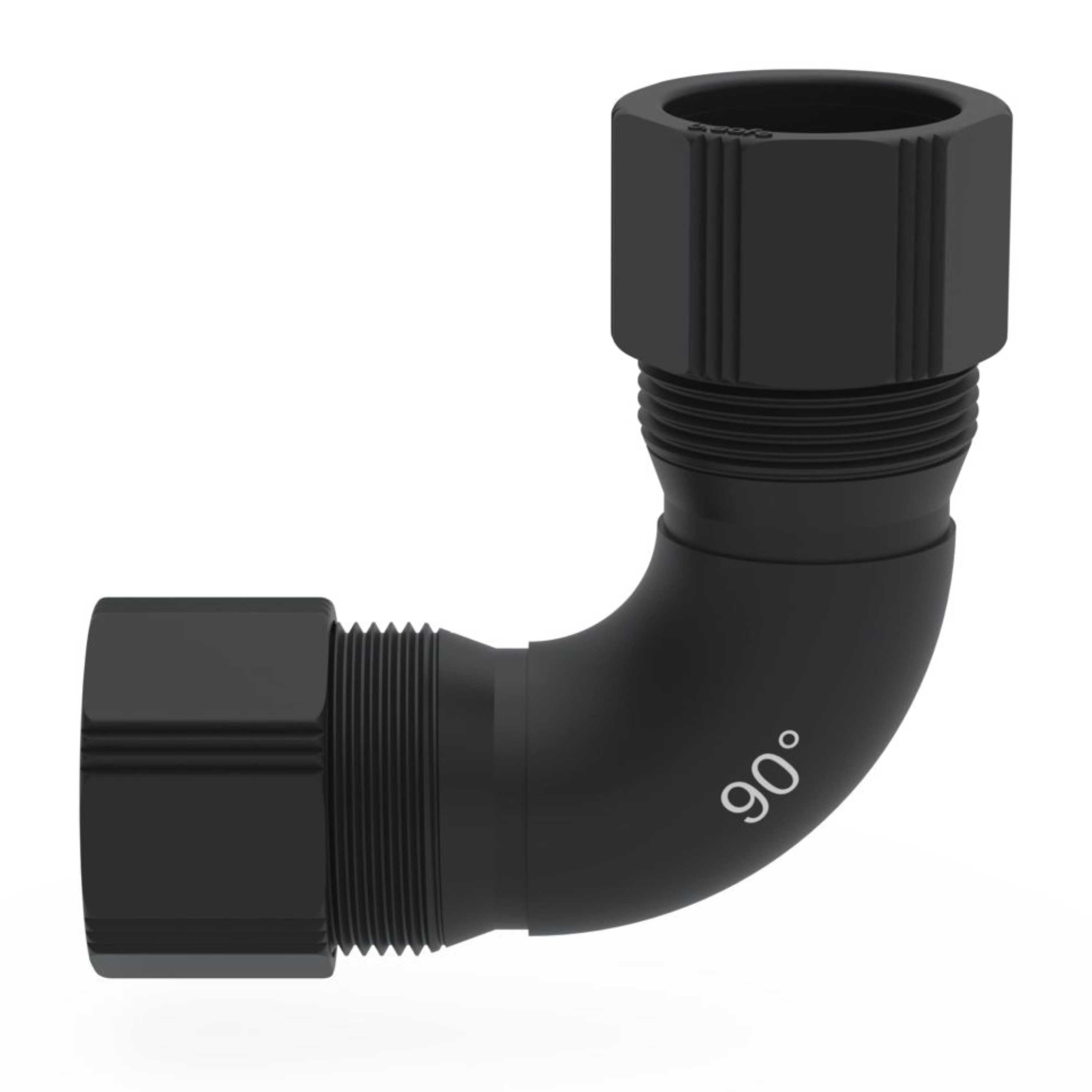

b.safe Elbow Connector (90°, 2x Ø 32 mm ) (PE-EX )

Order upon Request
SKU: R 1182-05
Regular price $ 184.95

Still have questions? Ask our experts!

b.safe Elbow Connector (90°, 2x Ø 32 mm ) (PE-EX )

Product Description

Elbow tube approx. 90° made of static dissipative PE-EX. Connection 1: clamp connection for inserting and clamping b.safe Waste Pipes with O. D. 32 mm. Connection 2: either clamp connection for b.safe Waste Pipes, male thread GL25 for transition to flexible b.safe Waste Tubes, or end piece O.D. 32 mm for transition to clamp connection. Each clamp connection consists of 1 lock nut in PE-EX, 2 conical sealing rings in PTFE-EX, 1 O-ring in EPDM.


Dimensional Drawing

Dimensional Drawing

Specifications:

Model

R1182-05

Chemical resistance

 ++ very good

Conductivity

1.000 kOhm

Material

PE-EX, PTFE-EX

Temperature resistance

from -50°C to +80°C

Connection 1

lemmverbindung / clamp connection

Ø 32 mm

Connection 2

lemmverbindung / clamp connection Ø 32 mm

Dimensions [(L x H) mm]

100 x 100

Form

Rundbogen / Elbow tube

With Slope

Nein / No
