b.safe Bore Adapter (aØ 75 x iØ 33 mm ) (PE )
Product Description

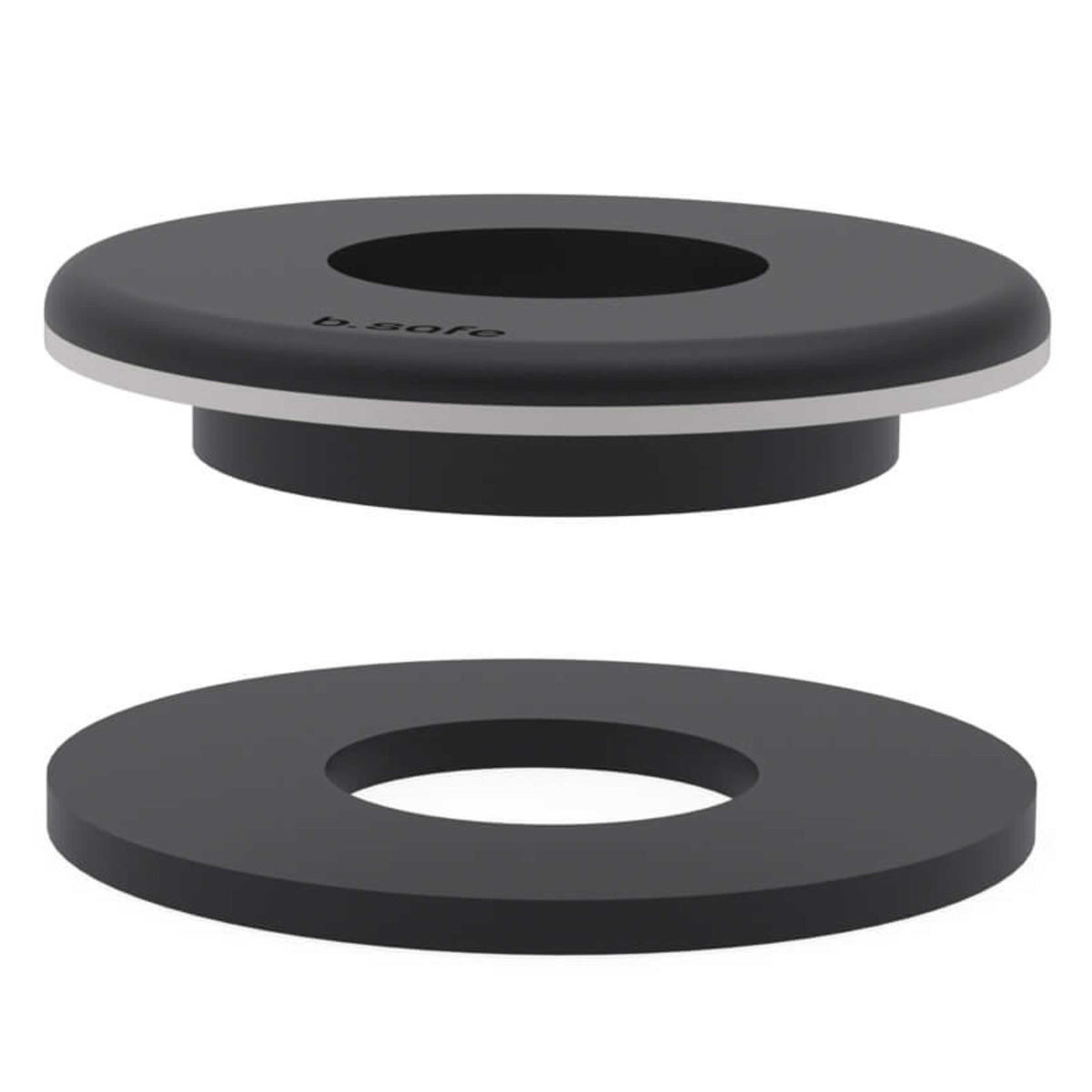

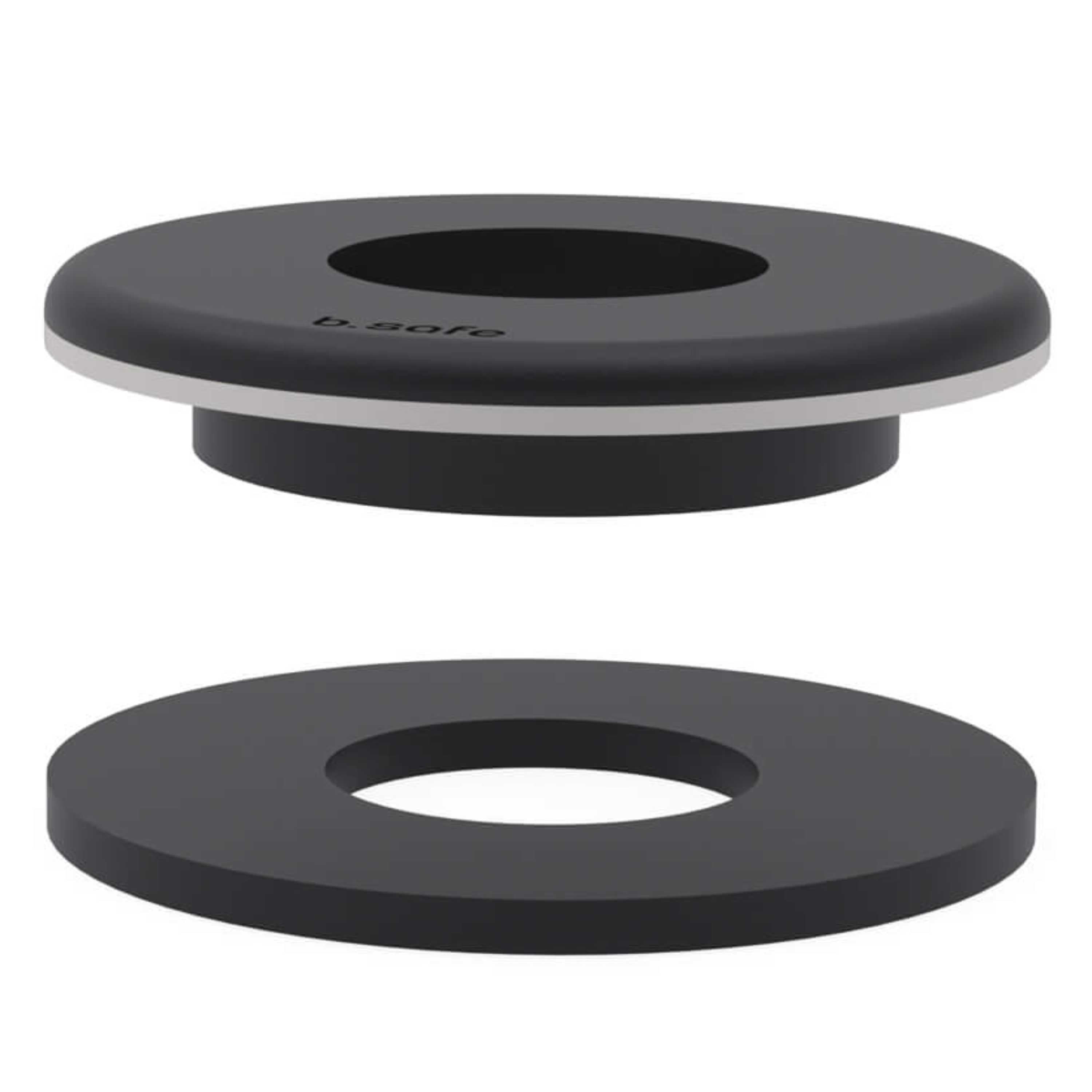

Made of PE, to reduce the bore diameter in table- or countertops from approx. 54 to 30 mm to ensure a safe installation of e.g. b.safe Desktop Mounts or b.safe Multiports in corresponding bores. Consisting of top part, lock washer and silicone gasket to avoid rotating and slipping during installation.
Applications

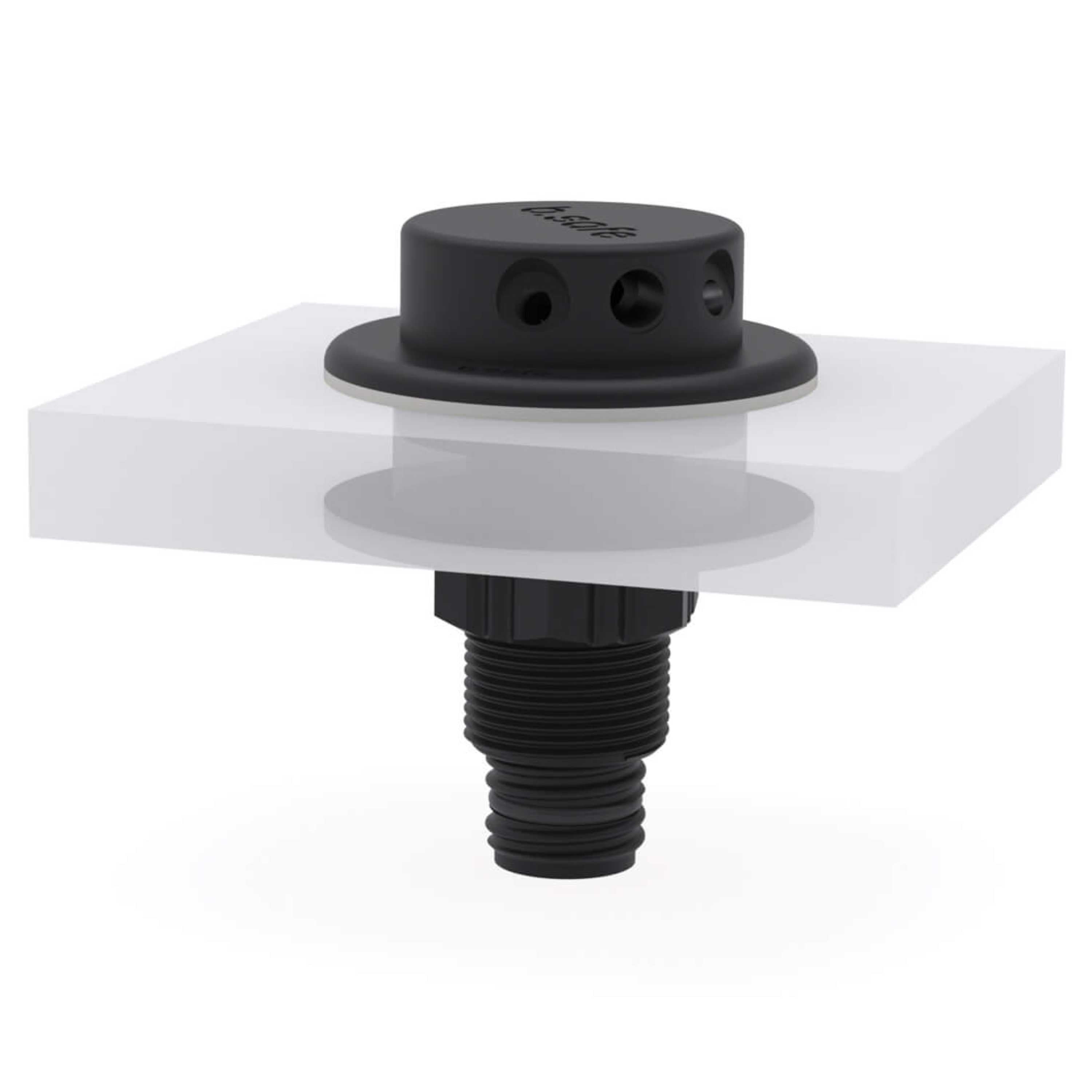

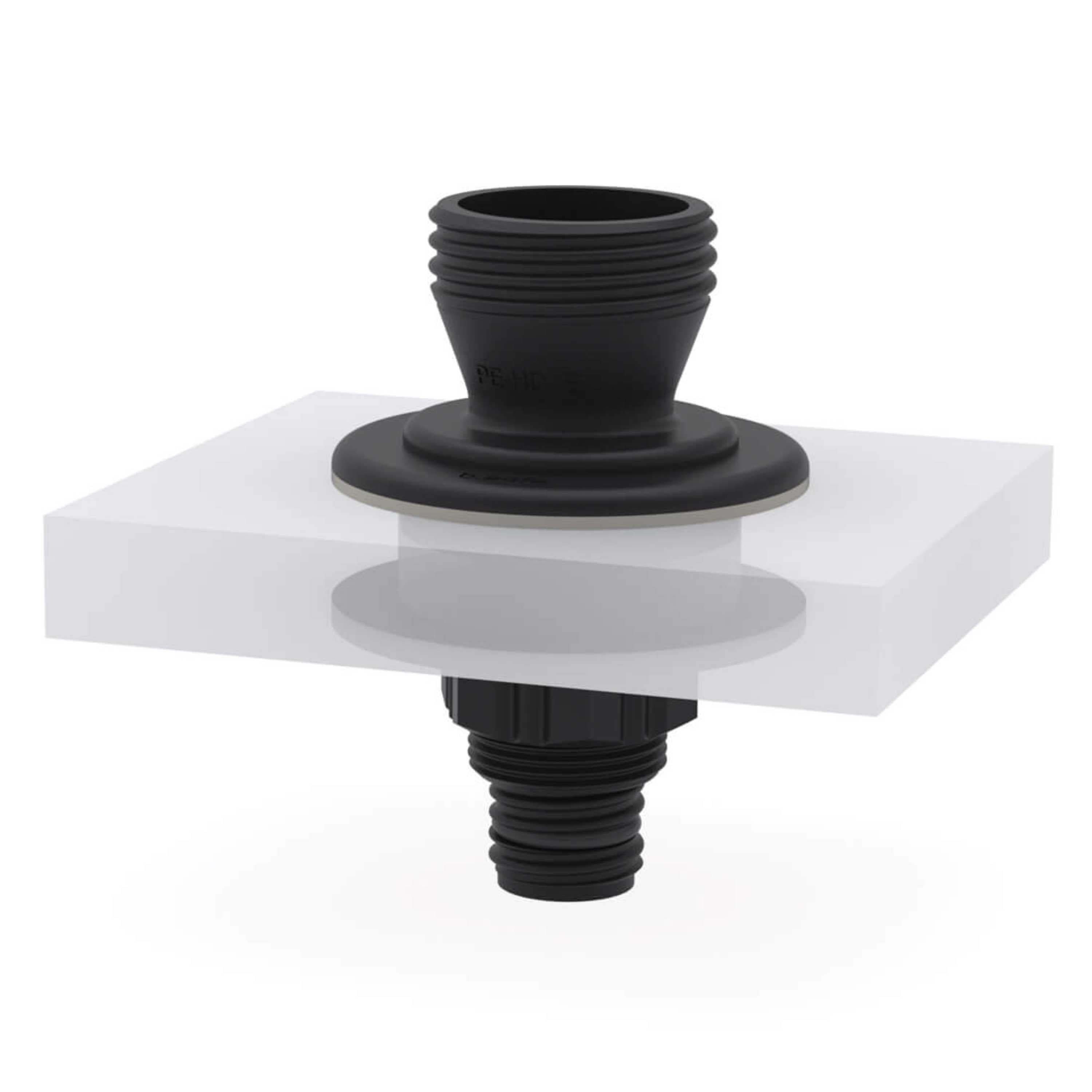

Adaptation of existing bores for assembling b.safe Desktop Mounts or b.safe Multiports also in bores with diameter bigger than 30 mm. Easy installation: put the top part of the bore adapter and the gasket on the existing bore. Insert e.g. a b.safe Desktop Mount (Cat. No. R 1100-45) through the reduced bore of the top part. Use the lock washer and counter nut of the desktop mount to fix it together with the bore adapter.
Specifications:
|
Model |
R1169-54 |
|
Chemical resistance |
++ very good |
|
Material |
PE |
|
Temperature resistance |
from -50°C to +80°C |
|
Bore in tabletop [mm] |
max. Ø 54 |
|
I.D. [mm] |
30 |
|
O.D. [mm] |
75 |
Downloadable links:
Technical information
Operating Instructions
