ATTO WSL-1850 CytoWatcher Ⅱ-Imaging System
SKU: WSL-1850
ATTO WSL-1850 CytoWatcher Ⅱ-Imaging System
Buy ATTO products from MSE Supplies at the best Value.

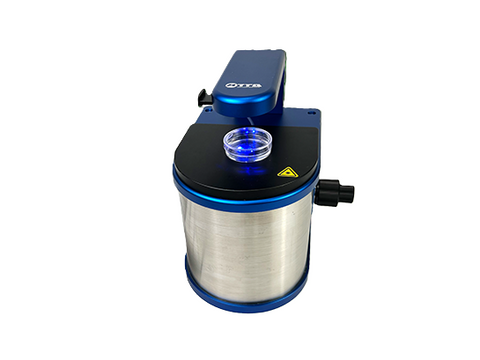

The CytoWatcher II./CytoWatcher II. FL is a digital microscope that allows you to capture live cells and tissues over a long period of time without damaging them. It fits compactly inside the CO2 incubator and minimizes the impact on environmental temperature. In addition to brightfield imaging, fluorescence imaging is also supported, and color photography with excellent reproducibility is suitable for observing tissue sections and biological tissues.
Purpose and Application
- Low-magnification brightfield observation of cultured cells
- Time-lapse imaging in a culture environment (the main unit can be installed in a CO2 incubator)
- Compact size that can be placed anywhere
- Equipped with a 5 million pixel color CMOS camera
- Up to two units can be controlled simultaneously with one PC, and time-lapse shooting of multiple samples is possible.
- Fluorescence imaging compatible models available
MSE Supplies is an authorized distributor of ATTO products.
Technical Data:
| Model and product name |
WSL-1850 CytoWatcher II. |
WSL-1850-B CytoWatcher II. FL |
|---|---|---|
| camera | 5,000,000-pixel color CMOS camera (global shutter system) | |
| resolution | 2448 x 2048 pixels | |
| magnification | 4x optical (digital zoom: up to 16x) | |
| field of vision | 1.720 mm x 1.439 mm | |
| focus | Manual (coarse/micro-motion) | |
| light source | Brightfield Illumination: Transmissive White LED | Brightfield illumination: Transmissive white LED Fluorescence excitation light source: Blue LED (465 nm) Side-illuminated |
| filter | without | Excitation: 480nm short pass (not interchangeable) Absorption : 525nm bandpass (interchangeable) Half width 45nm |
| Moisture Resistance | Can be used at 95% RH humidity (can be installed in a CO2 incubator) |
|
| Control software | ImageSaverT (Windows version) Shooting : Live / Still / Time-lapse |
|
| Image Saving | 8Bit: TIFF/JPEG/BMP (Color/B&W) | |
| Supported OS | Windows10/11 64/32bit | |
| language | Japanese/English Switchable with ImageSaverT |
|
| PC connection | Console: USB 3.0×1 | Body: USB 3.0×1 Light source: USB 3.0×1 (2.0 capable) |
| size (mm) | 130 (W) x 180 (D) x 190 (H) | 130 (W) x 180 (D) x 190 (H) |
| mass | 2.5kg | 2.9kg |
| power | USB power supply (bus-powered) | |
